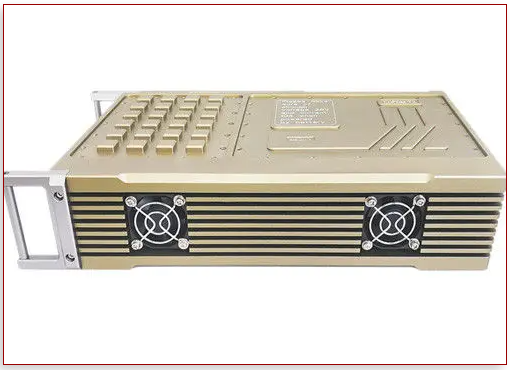

VHF / UHF HD Wireless Video Transmitter Rugged NLOS Long Distance Transmission System COFDM Modulation
Detailed Product Description
RF Power Output: 5-20W (Option)
A/V Interface: BNC, HD, SDI
Data Serial Interface: RS485/RS232/RS422 (option)
Distance: 10km NLOS In City
Video Resolution: 1080i,1080P,720P
It is a 150~200km Video + data transmitter for mobile wireless communication HD video wireless unit is a newly designed COFDM video FHD transmitter for gathering images, audio, and data from the front-end to the command center in emergency situations.
Designed in military-grade quality, it’s widely applied in tactical man-pack long-distance wireless communication. The features of the latest COFDM technology, 20W high RF power, H.264 image compression, and full HD quality video definition, make it enable to achieve long-distance video and radio transmission even in the fast-moving and harsh NLOS environment.
The HD COFDM wireless video transmitter can also be designed for UAV, vehicle, and boat point-to-point wireless long-range communication.
- Mobile and NLOS (Non-line-of-sight) transmission
- MPEG-4 /H.264 video compression, full HD video quality
- Military aluminum housing, black or green color option
- Low latency
- Strong security by AES user-defined encryption
- Modular design, compact structure, OEM design
- Several wavebands are available: VHF/UHF/L/ S
- Built-in very good heat radiation.
DC input DC12V-DC14V
Working Current ≤[email protected]
Working frequency range VHF, UHF
Power output 20W
A/V interface BNC, HD, SDI
Data serial interface RS485/RS232/RS422 (option)
Data working mode Half-duplex
Serial data rate 19200bps baud rate maximum
Video input format PAL/NTSC
Video resolution 1080i,1080P,720P
Video encoding MPEG-4/H.264
Audio channel Stereo Left / right channel
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Antenna interface N-type
Flatness ≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic 1Vp-p @ 75Ω, NTSC/PAL adaptive
outer case quality military-grade level
Work environment -30~55℃
Storage temperature -40~70℃
Environment humidity ≥95%
cover range 10km NLOS in the city
Warranty 12 months, lifetime maintenance
15km 30km 80km 150km long-distance wireless video transmitter receiver transmission transceiver PA 2W 5W 10W
30Km long range COFDM HDMI Transmitter Wireless Video Transmission system Receiver full Set Audio Video TX RX for UAV Drone 1080P 908T
Ground robot two-way wireless data video audio transmitter receiver four channel SDI input 2W PA with receiver
One-way COFDM ethernet IP wireless transparent transmission transmitter module network port
SDI Wireless Video Transmitter HDMI Receiver kit for dslr camera cheap HD long-range
Ultra-low-latency high-definition portable COFDM mobile video wireless transmission system Vcan1729
用于 IP 摄像机的 OFDM 无线视频发射器轻量级远程传输自动联网 RJ45
10W PA 100KM 150km airborne video data link long range tactical handhold UAV wireless transmission transmitter receiver
COFDM Wireless AV SD 720P Video Transmitter Receiver Transmission encryption NLOS composite CVBS COFDM-912
80KM wireless transmitter-receiver Video Data RC Transmission System HDMI SDI long-range low latency Vcan1702
COFDM Wireless Video Transmitter Receiver Transmission HDMI HD 1080P composite CVBS in H.264 COFDM-904T
7KM wireless Video Data RC Transmission System long range low latency HDMI SDI 15km OFDM Vcan1643
COFDM Wireless Video HDMI Transmitter TX Transmission HDMI HD 1080P CVBS H264 Encoder COFDM-907T
COFDM Wireless Video Transmitter HDMI cvbs input mini modulator module long distance fpv uav 905t
PA Power Amplifier rf for DVB-T COFDM TX Transmitter transmission 1w 2w 5w 10w 15w
Wireless Video Transmission RF Frequency Digital Down Converter COFDM Transfer frequency 2.4G to 600Mhz low BDC
Two-way wireless transmission digital data video link module Vcan1681
diversity dvb-t cofdm 10.1 inch digital tv monitor dvb-t2 receiver hdmi in out 6M 7M 8M bandwidth 170M to 930M frequency DVB-T2101HD
2W PA 27KM Real Test from mountain top to seaside Line-of-Sight
Latest 110km test video for the drone Long-range Wirless Video Transmitter and Receiver
Latest test video for the drone Long-range Wirless Video Transmitter and Receiver
65 KM drone UAV Really fly Test Wireless Video Transmission
1.5km for ground NLOS, 10-20-30km LOS air to ground wireless video transmitter receiver transmission
80KM wireless transmitter-receiver Video Data RC Transmission System HDMI SDI long-range low latency
COFDM-912T NLOS (non-line of sight) 1.5km real test in city, buildings, trees and roads
Web Device Management UI for UAV wireless video data link transmitter transmission by IP Net camera
6.5 KM drone UAV Really fly Test Vcan1643 Main Feature
One HDMI Wireless Video Transmitter to many receivers for home meeting show room.
SDI Camera input encode board + Wireless Video Transmitter assembly DIY
COFDM-907T HDMI + CVBS input NLOS (non-line of sight) 1.5km real test in city, buildings
Cheapest CVBS RCA 720P Wireless Video Transmitter + 1080P Receiver Support 128 encryption
How to set encryption on the transmitter and receiver to protect your privacy
COFDM-912T Really test in the complex city environment, transmitter in the car, receiver in the building
Modify the COFDM Wireless Video Receiver to 890 900Mhz, out of normal DVB-T reception range
Cheap Wireless video transmitter and receiver's small screen has great help on signal strength lock
Modify our tv box to 445.5Mhz 7M bandwidth COFDM DVB T wireless transmitter transmission receiver box
COFDM-905T COFDM Wireless Video Transmitter with two board, Encode board and transmitter board
COFDM-905T Wieless Video Transmitter by CVBS video input test video
how to connect mini wireless HDMI video transmitter and receiver kit use android phone as receiver
OFDM Wireless Video Transmitter for IP Cameras Lightweight Long Range Transmission Automatic Network
PA Power Amplifier Inside
Flight Control Protocol
Transmitter Video Input
Wireless Transmit Method
Obstacle and Sight
Encrypt and decrypt
FAQs about Wireless Video Transmitter and Receiver
Our wireless video transmitters have these types of video input interfaces: HDMI 1080P and 4K HDMI, CVBS composite, SDI, AHD, IP Ethernet, BNC, or tell us what type do you need, our engineer will modify to meet your demand.
Our transmission distance can be adjusted by adding power amplifiers. At present, the main ones are 15km, 30km, 50km, 80km, 100km , and 150km, which depend on the needs of customers.
Of course, the transmission distances listed above are all within LOS the line-of-sight range. If there are obstacles between the transmitter and the receiver, NLOS (the non-line-of-sight), the transmission distance is greatly reduced, only 1km or 2km, depending on the number of intermediate obstacles and the local wireless environment.
One-way means, We can only transmit and download video or data from the wireless video transmitter to the receiver in one direction, and we cannot upload video or data from the receiver to the transmitter. This type is also called simplex.
Two-way means that, not only we can download video or data from our wireless transmitter to the receiver, but also we can upload the video or data from the receiver to the transmitter. This is very suitable for operating drones. You can not only see the real-time video transmitted from the drone, but also upload the command to control the drone or the command to control the PTZ camera to adjust the angle to the transmitter. This can operate simultaneously. This type also named half-dulpex or full-duplex.
Please check the details at the below link. https://ivcan.com/request-a-quote-of-wireless-video-transmission/#simplex
Most Wireless video transmitters now support AES128 or AES256 bit encryption and decryption, depending on which model you choose. Please contact us to verify.
The frequencies of both the wireless video transmitter and the wireless video receiver can be modified. Users need to purchase additional parameter configuration boards.
However, considering that the corresponding power amplifier and antenna are already fixed within a certain range when the goods are sent out. If the user adjusts the frequency of the transmitter, the corresponding power amplifier, transmitter antenna and receiver antenna should also be modified to the same frequency, and these users need to be prepared. If not, it will cause the frequency of the wireless video transmitter to be different from the frequency of the antenna, making reception difficult. So please be sure to inform the correct frequency you need before placing an order.
If it is for security or confidentiality, you can use the encryption and decryption functions of the transmitter and receiver, which can ensure that your video transmission is private. .
Yes, all our product parameters can be customized according to customer's needs. If you have a special request, please let us know via the link below.
- Change the place of the receiver to avoid potential local interference from strong magnetic environments.
- Ensure that the antennas on both the transmitter and receiver are vertical.
- Please raise the antennas of the transmitter and receiver to maintain a certain height difference.
- Please look around to ensure that there are no obstacles between the transmitter and receiver.
- Change the orientation of the receiver antenna.
- If it doesn't work, try moving the receiver to be near the transmitter's position to see if it exceeds the effective wireless transmission distance.
- Or consider adding a relay of the transmitting between the transmitter and receiver.
Of course, we also understand that wireless video transmission transmitters and receivers are very expensive. You are far away from the China factory. and hope that the goods you receive are fit for the best performance.
If you pay special attention to a specific parameter or function, we can take some test videos based on the features you want to see, please feel free to contact us. It won't be shipped to you directly without your approval.
