AI IPC Rockchip RV1126 IMX415 Sony lens camera sensor board module SDK software development kit MIPI IP USB
$166.00
Need a completed IPC camera sample of Rockchip RV1126+Sony IMX415？
RV1126 IMX415
AI IPC Rockchip RV1126 IMX415 Sony lens camera sensor board module SDK software development kit MIPI IP USB
Table of Contents
Feature
Quad-core Rockchip RV1126 or RV1109 and Sony IMX415 lens sensor camera PCB board module are our latest AI IPC products and face recognition solutions for your project.
We offer our SDK software development kit and Linux firmware update tool with driver download and user manual installation guide.
This SOC has a MIPI connector, an IP ethernet RJ45 output, and web UI management.
Our datasheet has Pin-out details and a wiring diagram,
The price of the HD ZOOM CMOS fps dash cam with the network is cheaper and guarantees quality, good feedback, and review this year.
We also offer technical support for developing your project. Please contact us at [email protected] for any further information.
.
FAQs
- The default IP address of the camera is 192.168.31.88.
- if you connect our sample by net cable with your computer, you can use this 169.254.95.254 to modify parameter.
User: admin
Password: admin
Please check the below picture, Just a short connection soon P2 and P3 and it will trigger the start. then you can loosen the connection.
Yes, we will modify according to your requirement.
You need 4.2 volts, we have to replace the power IC, but the pins and peripheral circuits of the two power ICs are different. Our engineers have tried many methods but cannot directly modify the original board, so we can only use this temporarily. On the red board, a power supply IC is attached to meet your requirements.
https://youtu.be/toh4bY1kTuw
The pcba board dimension size is 38x38mm
The four hole diameter is 2mm
The two hole distance is 34mm
user: root
password: rockchip
Hardware Requirements
1. Sony IMX415 Camera module (Camera module with MIP interface)
2. MiPi ribbon cable (cable to connect the camera with SBC PCB)
3. Main RV1126 camera toard
4. Cable harness (Cable harness with USB POE, Power, and RCA Audio connector)
5. POE Bcard for SBC (POE Adaptor board for SBC PCB)
6. Power adaptor (DC Power source for Camera unit)
7. USB Programing / debug cable (OTe) (Separate USB, OTG type cable to program and debug SBC)
8. LED / IR boards (IR and LED board for camera assembly)
9. MIC
10. Samsung eMMC with SLC/MLC-based memory
11. Samsung RAM
12. Realtek ethernet: with PoE support
13. RTC Battery
Yes, we are happy to develop a new feature to meet your demand.
Yes, our RV1126 development board has additional TF card reader support.
ok. I will send you by Email.
Answer: The engineer replied that his Rockchip RV1126 dev tool only is for windows.
Question: We will have root access? If root we can install any of our program (incl. Linux)
Answer: Yes.
Question: Can I ask you link to repositories for download SDK, (dev tools)?
Answer: Yes, RKDevTool_Release_v2.74
https://drive.google.com/file/d/19rfUc4DJP5bPmdeCoDLsawo9b8zZxKMH/view?usp=sharing
https://drive.google.com/file/d/19rfUc4DJP5bPmdeCoDLsawo9b8zZxKMH/view?usp=sharing
Question: We need a composite (CVBS) video on your Rockchip RV1126 module. Can you support it? Only add DSI to Analog video convertor chip.
Answer: Do you need RV1126 develop board to support a composite (CVBS) input for the normal the CVBS camera?
If yes, please check the below link, we develop it for another client.
RV1126 customized for USB web or CVBS camera.
We also can develop the other function if you need it.
Question 1: What camera drivers are supported by SDK?
Answer 1:
Question 2: What MIPI DSI display drivers are supported by SDK?
Answer 2: MIPI DSI is debugged based on the specific screen. Please check the below picture.
Camera module specification
Module No.: DW-RV415- -38-V1.0
Substrate: PCB–FR4
Module size: 38*38*23. 8
Sensor Type: IMX415-AAQR-C
Effective pixel array: 3864 (H) х 2192 (V)
Pixel Size: 1.45 um (H) X 1.45 Hm (V)
Power Supply:
AVDD: 2. 9v
I/0: 1. 8V
DVDD: 1. 1V
Temperature Range: -30C–85C
Best Temperature Range: -10C–60″C
Max Frame rate: 3840 (H) X 2160 (V) 12 bit: 60.3 frame/s
Output Formats: 12 bit: 60.3 frame/s; 10 bit: 90.9 frame/s
Encapsulation mode: CSP
Camera LENS specification
Lens size: 1/2. 8″
The lens structure: 1G4P+650IR
F/No: 1.6土5%
EFL: 4.27MM
Optical FOV: D=104″ H=87″ V=44′
Accessory

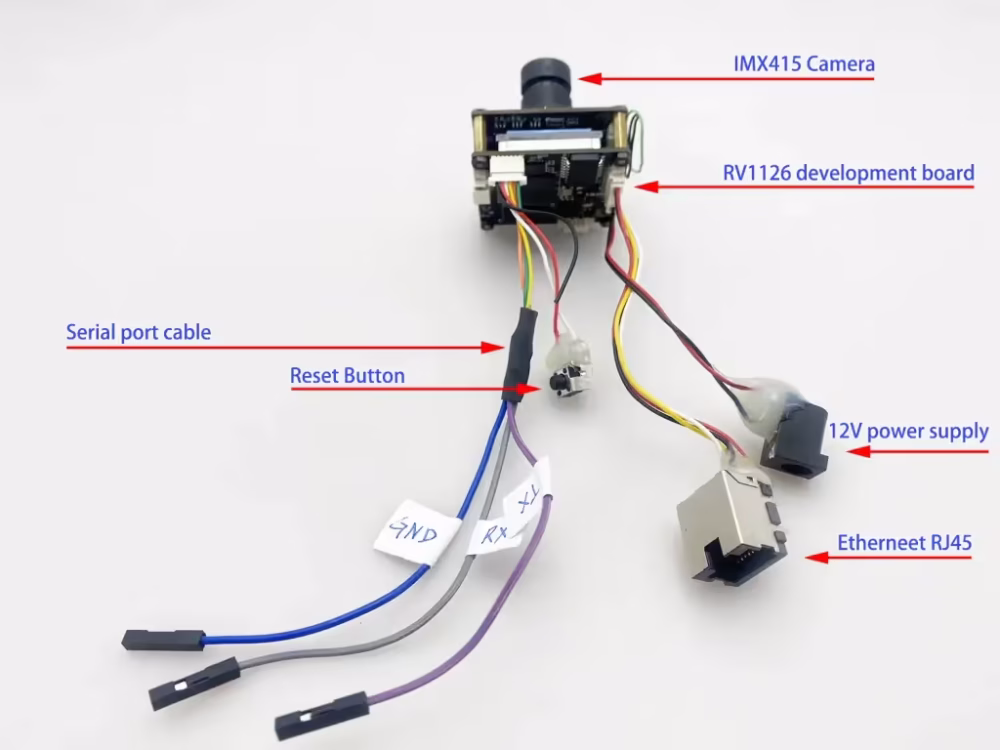

RV1126 development board, IMX415 camera
Cables: 12V power supply connector, Ethernet RJ45 connector, Serial port cable, reset button.
Download
RKDevTool_Release_v2.74
https://drive.google.com/file/d/19rfUc4DJP5bPmdeCoDLsawo9b8zZxKMH/view?usp=sharing
RKDevTool_Release_v2.74 Manual
https://drive.google.com/file/d/1PBeRweBShf7LZ9r2Gw_BO_z6vHr9kI3G/view?usp=drive_link
SDK
https://drive.google.com/file/d/1CCNWHNNVi8FVG6UXNgrMDYsZx3SrpFyr/view?usp=sharing
Data sheet
RV1126 RV1109 Quick Start
Rockchip_RV1126_RV1109_Quick_Start_Linux_EN
Rockchip Developer Guide RockX_SDK
Rockchip_Developer_Guide_RockX_SDK_CN
Rockchip_Developer_Guide_RockX_SDK_EN
IMG upgrade firmware file for RV1126 and IMX415
https://drive.google.com/file/d/1GMPYhL4Tq771LxzruApOZMU0xZDhw_FL/view?usp=sharing
development board kit sdk ip camera,
Related products
AI IP Camera
AI IP Camera
AI IP Camera
Rockchip RV1126 Sony IMX415 AI-IPC smart camera CCTV security EVB Board PCBA SDK black / white color
Rockchip
Feature
Link
Application
RV1126, Frequently Asked Question
RV1126 is a full-featured multi-interface board built with Rockchip's RV1109 RV1126 chip. It is a standard board used by new customers to evaluate chip functions, run performances, and demonstrate the chip's powerful multimedia and peripheral interface functions. After the customer confirms the performance, they modify the interface to meet the needs of their project and redesign a new carrier board or motherboard so that it can connect directly to the RV1126 core board.
The RV1126 and RV1109 have the same functional interface, with the exception that the RV1126 is a quad-core and the RV1109 is a dual-core, and the RV1126 is slightly more powerful. The RV1126 has a 1400-pixel ISP processor with 2TOPS of NPU arithmetic, whereas the RV1109 has a 5MP ISP processor with 1.2TOPS of NPU arithmetic. Both are P2P designs, easy to replace, and can effectively reduce development costs by forming a high and low-end product line.
Yes, I can offer you the SDK, almost 24GB.
https://mega.nz/file/LZtXgCoQ#mILZ0HwMoi_chWBKzTLP1L38I6rIJC7AgARxAtdIhqc
And we can not offer you any technical support when you are using the SDK, except that you hire that our software engineer to develop your special project.
We only provide the RV1126 development board, please ask engineers for specific technical questions.
As far as I know, the AI algorithm needs to be placed in the specified directory of the SDK so that RV1126 can use it.
