300~4400Mhz HD UAV Video Transmitter 100km LOS Long Distance COFDM Transmitter

Detailed Product Description

Frequency/Video:300-900MHzVideo Compression:H.264
Data Encryption:AES 128 / ALLTECH Basic ScramblingRF Power:2-5W Adjustable
AV Interface::BNCBuilt-in Battery:2300mA, 3Hrs

Description:

This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural. Use H.264 coding format and COFDM (coded orthogonal frequency division

multiplexing) modulation with small size receiver, provide high quality of picture in revolution 720*576, short latency.

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.

Specifications

Transmitter parameters:

Frequency 300-900MHz (can be customized) RF output Power 2-5 Watt(adjustable) Voltage DC12V/1.5A Modulation COFDM Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz Bandwidth 2/2.5/4/8MHz(adjustable) Transfer rate 2/4/6/8Mbps(adjustable) FEC 1/2,2/3,3/4,5/6,7/8 Guard Interval 1/32,1/16,1/8,1/4 Video Input 1 line PAL/NTSC analog video Audio Input Analog stereo left and right channels AV interface HD; HD-SDI; BNC Video compression H.264 Data encryption AES 128 / ALLTECH Basic scrambling Flatness Full band≤2dB, 8MHz≤0.5dB Carrier 2K,8K Video Signal [email protected]Ω,NTSC/PAL adaptive Resolution 1080P RF Interface N(F) Video Format PAL/NTSC(self-adaption) Case Material Aluminum alloy, rainproof Built-in battery 2300mA, 3Hrs Work environment -30~70° Distance 3km max NLOS manpack/100km LOS for air to ground Size 180*100*60mm Weight 1444g(net weight)

Receiver parameters:

Frequency430-520MHz(can be customized)
Receive sensitivity< -105dBm
RF InterfaceN(F)
ModulationCOFDM
Power supplyAC220V /DC12V
Bandwidth2/2.5/4/8MHz(adjustable)
ConstellationQPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC1/2,2/3,3/4,5/6,7/8
Guard Interval1/32,1/16,1/8,1/4
Video Output1 line PAL/NTSC analog video
Revolution1080P
Lines ofhorizontal625 or 525 Line
Audio OutputAnalog stereo left and right channels
Data decryptionAES128/ ALLTECH Basic scrambling
AV interfaceHD; HD-SDI;BNC
Work environment-30~70°
Size430*310*65mm
Weight3.5kg

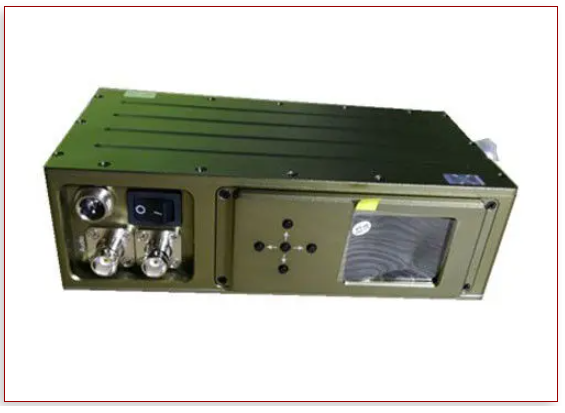

Transmitter:
