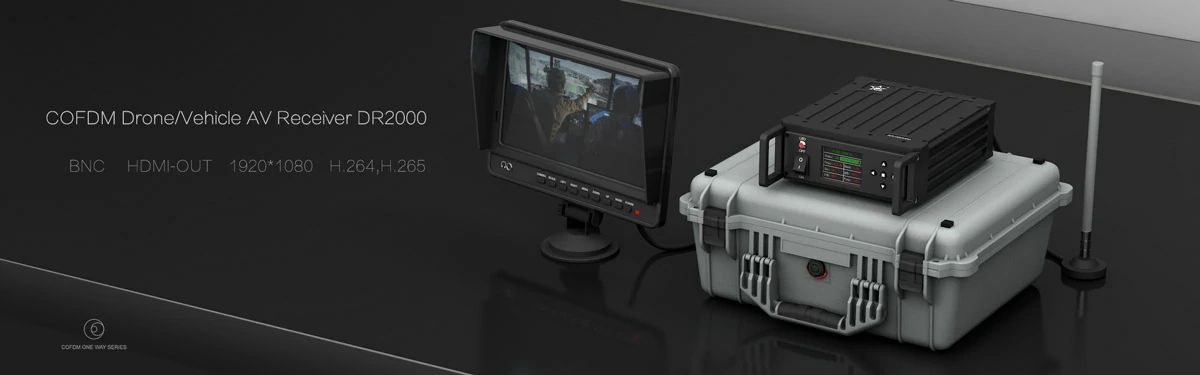

Small COFDM AV Receiver
Ⅰ. Product Introduction
It is a portable mini wireless AV receiver. Automatically configures COFDM and decoder parameters for the received signals and supports resolutions from 480i to 1080i/60 in both MPEG2 and H.264 compression, with HDMI, and BNC outputs.
Taking the latest cofdm modulation and narrow bandwidth as it core, the video receiver can match to various microwave wireless signal receiving, like drone video downlink, long range vehicle surveillance video, bodr-worn camera video, and broadcast quality video, etc..
With flexible tailor made solution, the digital receiver is suitable for any cofdm video transmitter of Shenzhen Safe Guard (SFGT).
Ⅱ. Product Features
1）Latest cofdm modulation;
2）High receiving sensitivity up to -105db at 2M;
3）Strong anti-interference and anti-jamming ability in NLOS environment;
4）HD image and high-fidelity;
5) Small size and compact design, fit for outdoor mission
Ⅲ. Product Parameters
|Receiving Frequency||300 – 800MHz, 1000-3300MHz|
|Video Format||H.264, H.265|

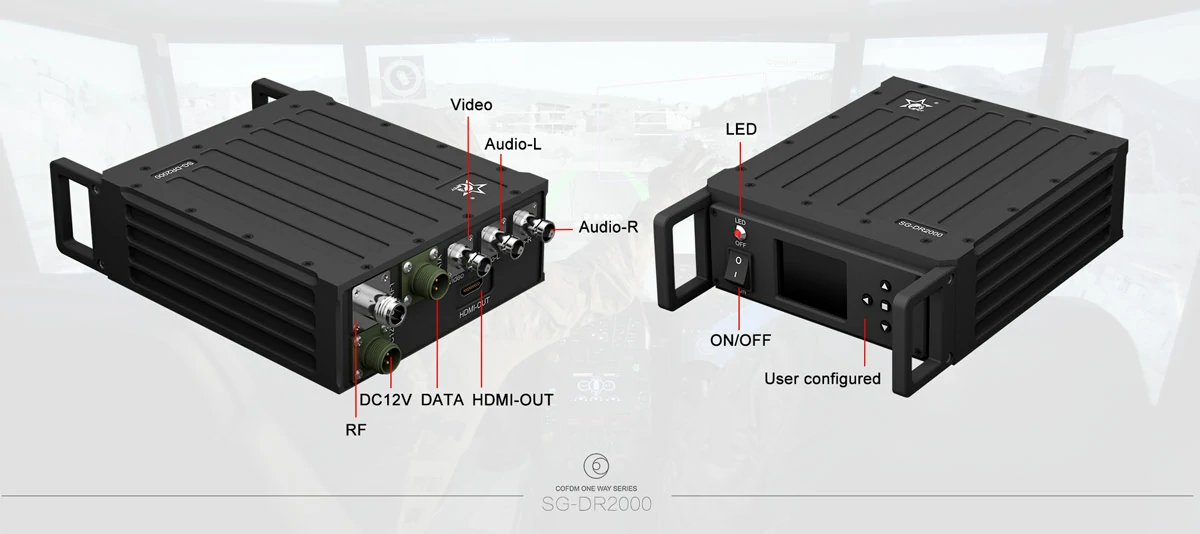

|Video Output||BNC, HDMI|
|Audio Output||Analog stereo left and right channels|
|FEC||1 / 2|
|Guard Interval||1 / 32|
|Video Output||1 line PAL / NTSC analog video|
|Lines Of Horizontal:||625 or 525 Line|
