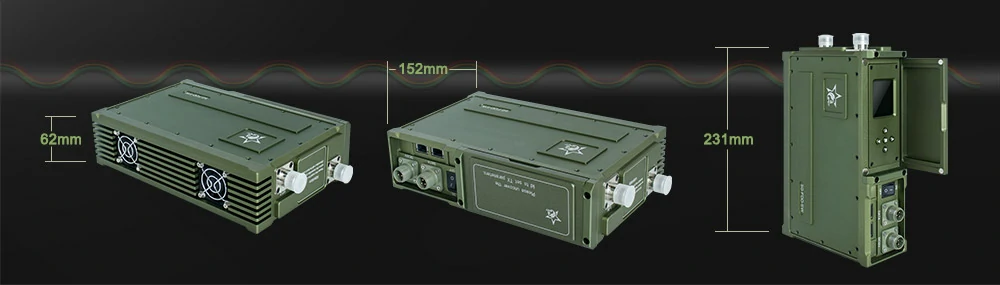

Duplex IP Transceiver
It is a fully duplex IP video data transmitter with FDD(frequency division duplexing) technology based on COFDM modulation of Shenzhen Safe Guard (SFGT). The downlink and uplink frequency of Ethernet IP transceiver are adjustable and customized to meet different countries’ users’ requirements.
Integrated with Ethernet port, the Ethernet video transmitter is suitable to connect any IP-based devices, like IP camera, computer, etc. to achieve long distance microwave wireless IP video or other data transmission and communication. There is also with serial ports, RS232 with TTL protocol for remote radio link, like drone telemetry downlink, and command signal uplink controlling, or other wireless data radio communication.
Designed in military standard, the wireless IP radio is wildly used for UAV UGV wireless video transmission and remote radio controlling, or soldier manpack video and audio communication.
1. COFDM modulation,different carrier frequencies FDD technology;
2. Work well in NLOS fast moving condition;
3. Low latency and great data send from end to end;
4. Transparent IP Ethernet and serial data sync telecommunication;
5. RF Fullband/Narrowband/Multiband (1/2/4/8MHz) available.
|TX output frequency||555MHz (can be customized 300-3300MHz),step in 1MHz|
|RX output frequency||595MHz (can be customized 300-3300MHz),step in 1MHz|
|RF power output||37dBm adjustable|
|Encryption/decryption mode||AES128 bits(user-defined password)|
|Transfer rate||2×30 Mbit/s_RJ45 115200bps_TTL|
|RF connector||N type|
|Ethernet||Standard RJ45 port,Aviation plug（TTL）|
|Transmit distance||2-5km NLOS /5-10km LOS on ground level|
