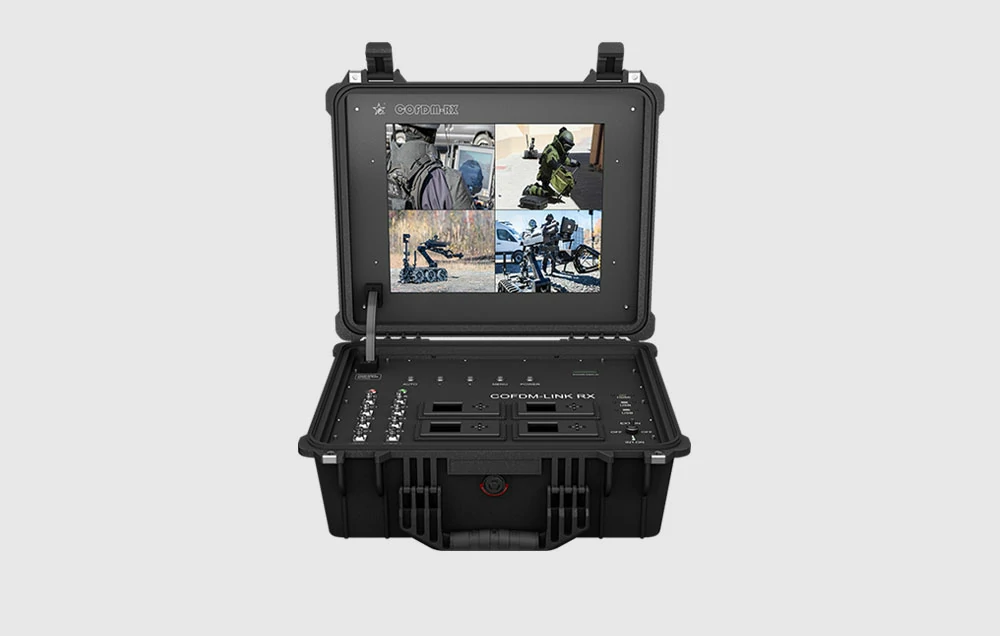

COFDM Video Receiver
It is a four-channel Receiver with COFDM modulation technology, which is capable to receive 4 different channels of videos from 4 transmitters simultaneously withtout any interference. Built in with 17 inch LCD display and 20A battery, the cofdm video receiver is suitable for outdoor applications, like law enforcement, overt/covert surveillance, film production live feed, and UAV/UGV remote video ternimal monitoring.

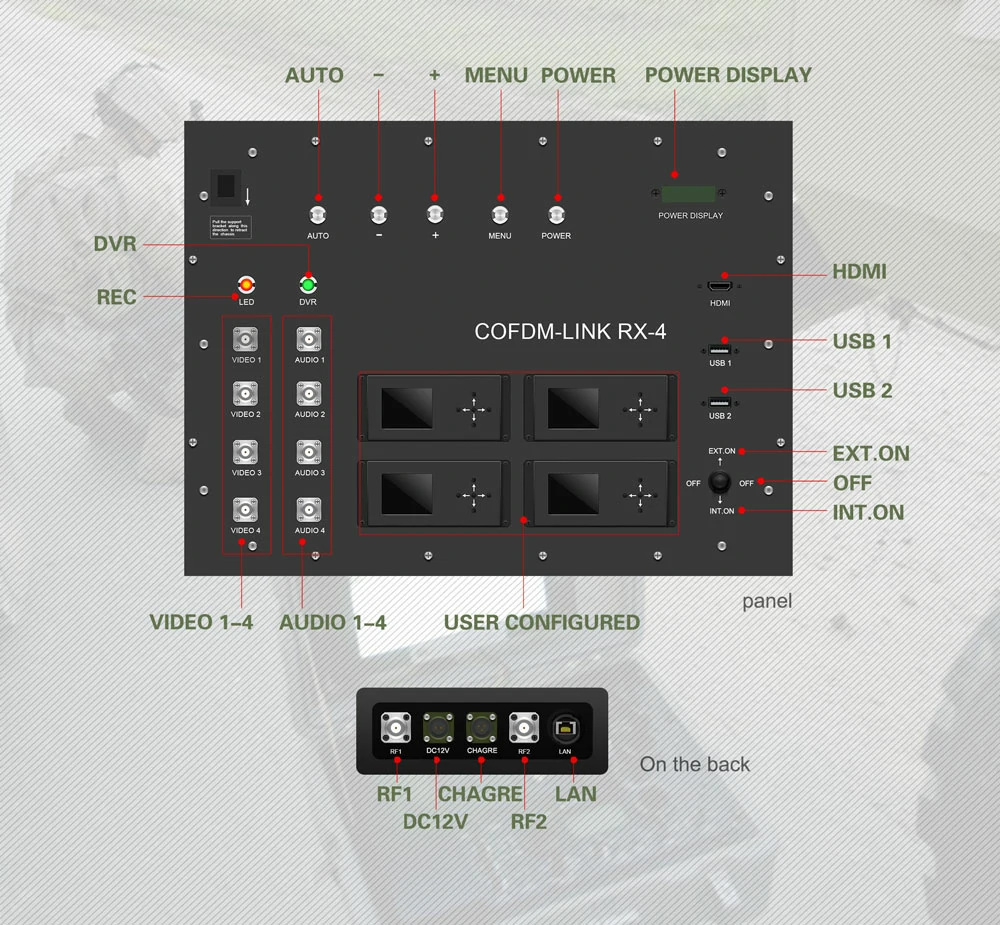

There is a manual configured panel for each channel video receiving, to adjust the frequency, rf bandwidth, AES encryption, etc.. The video receiver is configured with COFDM and decoder parameters for the received signals and supports resolutions from 480i to 1080i/60 in both MPEG2 and H.264 compression, with HDMI, BNC(SD-SDI) outputs.
Extra Ethernet port can be customized for remote command office video monitoring through publich internet. The can be tailored to signal or two channel video receiver in order to meet different user’s requirement. With 120G SSD memory card integrated, all the videos can be recorded simultaneously.

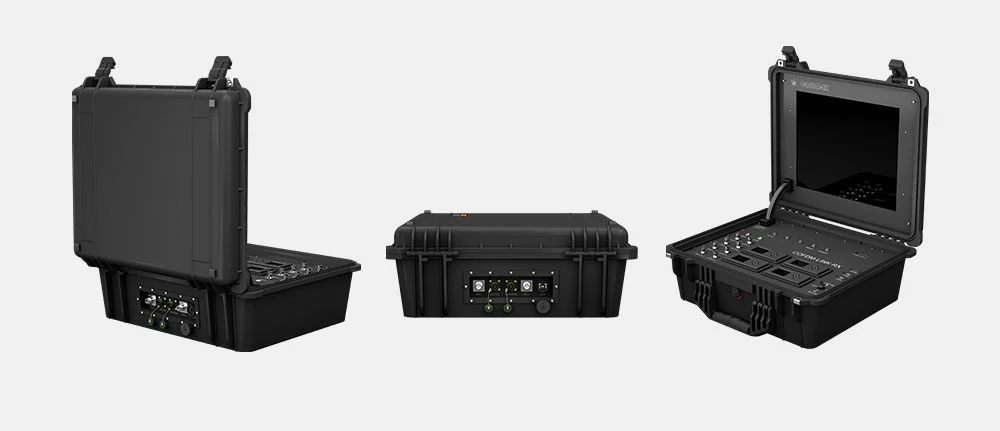

Using the Pelican case as its housing, the SFGT-CH4 is dustproof, and shockproof, and waterproof when close.
1. Support 4 channel video receiving simultaneously;
2. Latest COFDM modulation, and narrow bandwidth;
3. Hard disk video recording function;
4. Ruggedized design in PELICAN shockproof case, explosion proof, waterproof;
5. Strong anti-jamming function in harsh and NLOS(non-line-of-sight) envrionment.
|Sensitivity||4M<- 104dBm （built in four power divider）|
|Audio Output||Stereo left and right|
|RF Interface||N FH|
|Frequency||250Mhz – 4400MHz|
|Video Interface||HDMI, BNC|
|FEC||1 / 2|
|Power Supply||AC220V / DC12V(Customized)|
|Guard Interval||1 / 32|
|LCD Monitor||17 Inch|
|Video Output||1-4 line HDMI|
|Lines Of Horizontal||625 or 525 line|
