| DC Input: | DC 6V – 17V | Video Input: | HDMI |
|---|---|---|---|
| Bandwidth: | 1/2/4/8MHz | Output Power: | 200MW |
| RF Interface: | MMCX | Constellation: | QPSK,QAM16,QAM64 |
| Dimensions: | 60mm*36mm*19mm | Weight: | 58g |
| High Light: | wireless hdmi transmitter receiver, hdmi wifi transmitter |

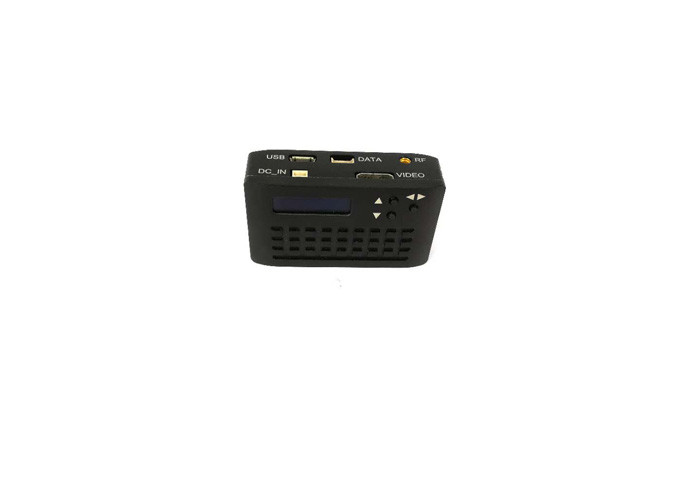

H.265 wireless HDMI Video Transmitter full HD cofdm UAV video transmitter
Table of Contents
Introduction
H.265 COFDM 1080P Micro high definition wireless video transmission equipment, Using the support of nonline of sight (NLOS) transmission and COFDM multi-carrier modulation technology. Using the latest H.265 compression coding method, to improve the coding efficiency and reduce the coding delay, optimization algorithm, anti-terror rate, and further improve the image quality, at the lowest rate to achieve the best image compression.
highly integrated embedded design, super linear digital predistortion (Digital Predistortion) RF design, setting network, modulation, and demodulation, and full frequency RF output in one. It can help you to complete the design of long-distance wireless links more conveniently and quickly, and provide high-definition digital broadcasting, security system, public security, armed police, fire-fighting, and other fields.
It is widely used in multi-channel video stream transmission, high-standard unmanned control systems, and intelligent control equipment.
Feature
- H.265 high efficient full high definition 1080P coding compression
- Supporting non-sight distance (NLOS), high-speed mobile transmission
- Low latency and low power consumption
- Transparent serial port high-rate transmission
- Military-level nonstandard 128-bit dynamic AES encryption
- Support full band/ultra-narrow band / multi bandwidth modulation (1M/2M/4M/8M)
- OLED high-definition digital display panel, simple interface, and easy to operate.
Application
It is suitable for UAV aerial photography, concealed detection, image monitoring, and real-time transmission of wireless images.
Technical characteristic
| DC input range | DC 6V – 17V |
| Working current | 550mA_12V/6.6W |
| Video input | Mini HDMI:1080P/720P |
| Bandwidth | 1/2/4/8MHz |
| Radio Frequency | 300MHz – 1500MHz, stepping 1MHz(other frequencies on request ) |
| Output Power | 24dBm/200mW(can customized) |
| RF interface | MMCX |
| Encryption | Dynamic 128-bit AES |
| DATA | Transparent TTL serial data transmission |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Carries | 2K |
| Video encoding | H.265 |
| Modulation | COFDM |
| Constellation | QPSK,QAM16,QAM64 |
| Parameter control mode | Through the OLED display panel set the relevant parameters |
| Dimensions | 60mm*36mm*19mm |
| Weight | 58g |
Question About Product
- Was the product you need not found?
- Do the described here differ from your needs?
- Do you want to change it to suit your project?
- Do you still have questions about the product?
- Please tell us to customize it for you.
video receiver
Product introduction
HD H.265/H.264 IP COFDM Rx HD decoding module, this product has an HDMI output interface, CVBS analog audio, and video output interface, USB interface, SDI interface, and RJ45 interface. The use of non-line-of-sight (NLOS) transmission COFDM multi-carrier demodulation technology, transparent data interface to provide balanced and stable high-speed rate, support HTTP, RTSP, RTMP, UDP (unicast and multicast) protocol. Receive TS stream from the encoder, can set video output resolution according to different needs, highly integrated embedded design. It can help you complete long-distance wireless link design more conveniently and quickly. It can be applied to high-definition digital broadcasting, security systems, public security, armed police, firefighting, and other fields. It is widely used in multi-channel video streaming, unmanned control systems with high standards, and intelligent control equipment.
Key Features
H.265 high-efficiency full HD 1080p decoding compression
COFDM ultra-narrowband demodulation technology
Support H.264/H.265 full-featured image decoding in COFDM mode
Supports military-grade non-standard 128-bit AES decryption
Transparent network/serial port high rate transmission
Support for USB image recording
Support CVBS, HDMI, SDI output
Support full-band / ultra-narrow band / multi-bandwidth modulation (1M/2M/4M/8/)
Digital panel operation and display, easy to use
Technical characteristics:
| DC input range | DC 6~17V |
| Current | mA_12V |
| Video output | CVBS: SD analog video output SDI: HD digital video output HDMI: HD digital video output |
| Working frequency | 300MHz~860MHz, Steeping1MHz (other frequencies on request) |
| Channel bandwidth | 1/2/4/8M |
| Reverse audio input | 2 channels |
| Audio output | 2 Channels |
| RJ_45 | 1*RJ_45 |
| DATA | Transparent TTL serial data transmission |
| TS flow protocol | Supports HTTP/RTSP/RTMP/UDP (unicast/multicast) protocols |
| USB interface | Video recording |
| Decryption method | Dynamic 128-bit AES |
| Video decoding | H.264/H.265 |
| Demodulation | COFDM |
| Parameter control method | Set related parameters through the LCD panel |
| Dimension | 120*65*27mm |
-
