Video Transmitter

Video Transmitter

Detailed Product Description

RF Power Output:	15W	Frequency::	138-4400MHz (available)
A/V Interface:	RCA	Modulation:	COFDM
Resolution:	1280*720	Weight:	2.3kg

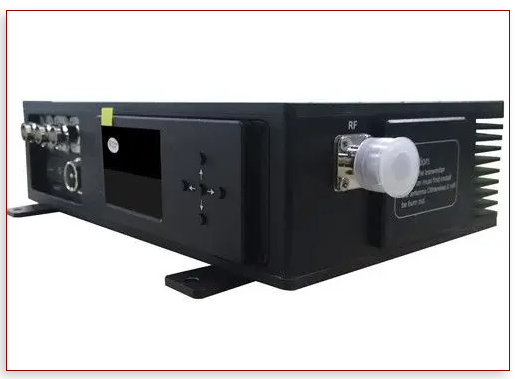

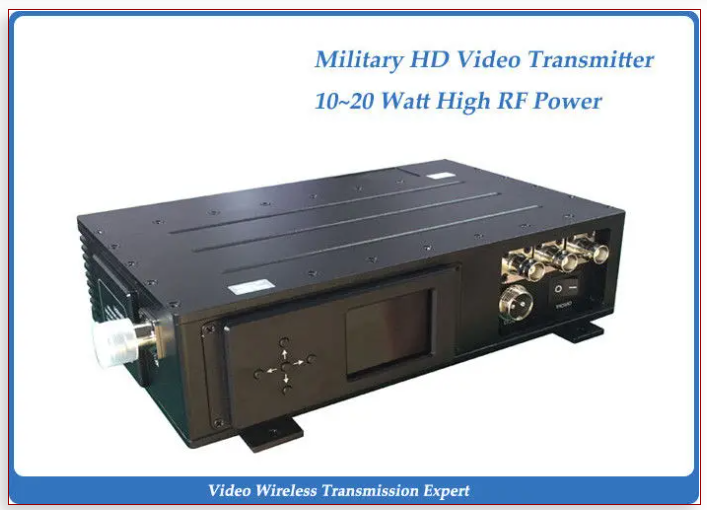

NLOS HD-SDI Video Transmitter Outdoor Manpack Transmitter and Receiver​ Long Range
Long range video transmitter and receiver introduction:
This is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and MPEG-4 image compression that enables good NLOS (Non-line-of -sight) transmission with DVD quality video. The transmitter is compact in size with a strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safe with AES128/256bits. Can work well in fast-moving transmission.

Special Feature:

COFDM modulation, Stable transmission

MPEG-4/H.264 video compression, DVD video quality

Strong casing with built-in two cooling fans

Mobile and NLOS transmission

Great security by encryption of AES 128 bits

Low system latency

Modular design, compact structure, OEM design

Can be customized to add additional features
Features:

COFDM modulation, Stable transmission

MPEG-4 video compression, DVD video quality

Military aluminum housing, Strong casing with built-in two cooling fans

Mobile and NLOS(Non-line-of-sight) transmission

Great security by encryption of AES 128 bits

Low system latency

Modular design, compact structure, OEM design

Several wavebands are available: VHF/L/ S

Can be customized to add additional features, such as HD/HD-SDI, data port, Ethernet and etc.
Specifications:

Modulation	CODFM
DC input	DC12V-DC14V
Working Current	≤4.7A@DC12V
Constellation	QPSK,16QAM,64QAM (optional)
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Carrier	2K
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Frequency	138-4400MHz (available)
RF power output	15W
A/V interface	RCA
RF interface	N type
Flatness	≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic	1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER	<2.0E-4
Video Compression	MPEG-4/H.264
Resolution	1280*720
Video Rate	6Mbps
Casing Protection	IP66 (dustproof, rainproof)
Work environment	-30~70°
Dimension	220*140*60MM
Weight	2.3kg

  1080P Wireless Transmitter Application:
This specially designed system is for long range distances for any AV equipment and has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.

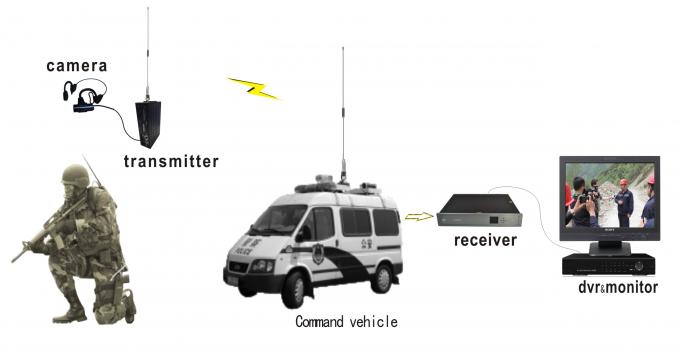

1) Manpack–vehicle

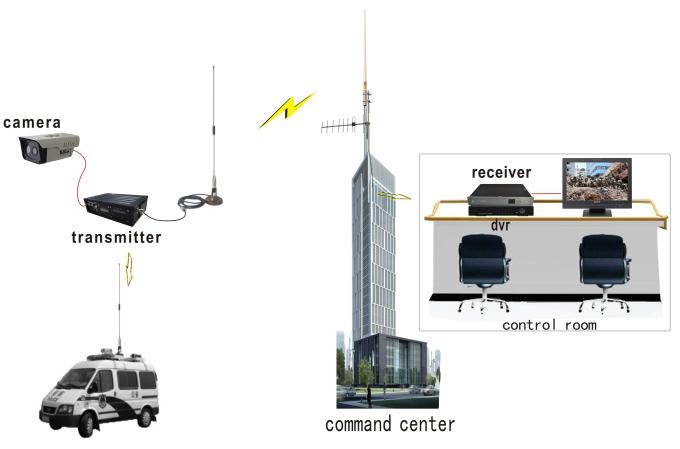

2) Vehicle—fixed station
