UHF Digital Long-Range Video Transmitter in 2023
1. What is the UHF Video Transmitter frequency range?
UHF video transmitter frequency range is from 300Mhz to 3000Mhz. The most used frequency is from 300Mhz to 860Mhz, or up to 930Mhz, 1.4Ghz, and 2.4Ghz.
One-way and two-way are the two types of UHF video transmitters, which are categorized based on project needs.
For example, an ordinary video photograph camera only needs to transmit the video from the transmitter to the receiver; but drones often not only need wireless transmission from the camera to a remote monitor, and the control instructions issued by the operator at the receiver joystick need to be uploaded to the drone. This is a two-way transmission.
Want to find some UHF video transmitters for your project? Please tell us your demand at the below link, our engineer will offer you a free solution or choose the most suitable models for you. https://ivcan.com/request-a-quote-of-wireless-video-transmission/
A UHF video transmitter is a device that can send video signals wirelessly over the ultra-high frequency (UHF) band, which ranges from 300 MHz to 3 GHz. It should include a video transmitter to connect to your camera and a receiver to connect to your monitor. Also, support transmitter antenna and receiver to become on a full set of UHF video transmitter systems.
We use UHF video transmitters for broadcasting TV shows and transmitting video from cameras, drones, and other sources.
UHF video transmitters vary in their frequency range, output power, modulation scheme, data rate, and antenna type..
Perhaps you’ve heard of VHF or very high frequency. It is the frequency range of radio frequency electromagnetic waves (radio waves) from 30 to 300 megahertz (MHz). The wavelength range of VHF is from ten meters to one meter.
Free Inquiry, Free Quote, Free Support!

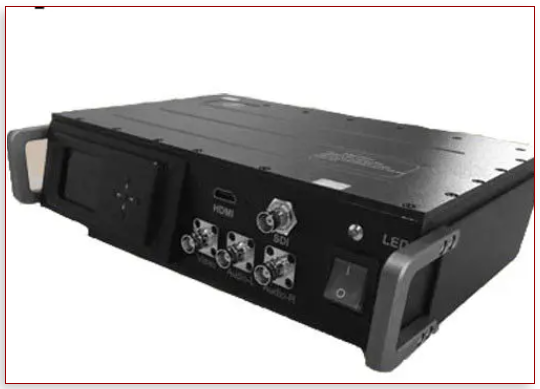

UHF Digital Long Range Video Transmitter , 1080P HD Wireless Video Sender 40 Watt RF
UHF Digital Long-Range Video Transmitter Description
- Video Resolution: 180p/1080i@60fps, 19201080
- Definition Work Environment: -40℃~70℃
- Video Format PAL/NTSC(self-adaption)
- Delay Time: Only Has 150ms
- Data Encryption: AES 128/256 Bits
- RF Interface: N Type
- Size: 275*200*78mm
- Weight: 5kg
UHF Digital Long Range Video Transmitter , 1080P HD Wireless Video Sender 40 Watt RF
UHF Digital Long-Range Video Transmitter Introduction:
It is a new powerful HD COFDM video audio transmitter, up to 40W power which supports transmitting over a long distance even with obstacles.
Our technology can transmit high-quality images and video quickly and stably, even when obstacles are present. We use 4th-generation mobile communication and full-HD 1080P techniques with COFDM modulation and low delay.
This technology can transmit high-definition video signals for vehicles such as cars, boats, ships, and aircraft traveling over 450 km/h. Various departments widely used it, including public security, military, transportation, and finance.
UHF Digital Long-Range Video Transmitter Features:
- Small and lightweight;
- Full HD resolution 1080P/1080I@60fps;
- COFDM modulation, H.264 video compression mode;
- Built-in with HD/HD-SDI port;
- Only has 150ms low delay;
- 4/8MHz RF bandwidth;
- strong heat resistance capacity;
- PAL/NTSC self-adaption;
- Support 40W of power;
- Support L/R stereo audio in/out;
UHF Digital Long-Range Video Transmitter Features Specification:
- Frequency 300-900MHz,1.2G/2.4G/5.8GHz
- RF power 35~40Watt(adjustable)
- Power supply DC11-14.5V/1.9A
- Modulation COFDM 2K QPSK
- RF Bandwidth 4/8MHz(adjustable)
- Delay time Only has 150ms
- FEC 1/2 2/3 3/4 7/8
- Guard Interval 1/32 1/16 1/8 1/4
- Data Encryption AES 128/256 Bits
- Max speed 450km/h
- Video-Input BNC: D1 standard definition
- HD: HD1080I/1080P, 720P, 576, 480
- SDI:HD1080I/1080P, 720P, 576, 480
- Video compression format H.264
-
15km 30km 80km 150km long-distance wireless video transmitter receiver transmission transceiver PA 2W 5W 10W -
UAV Wireless Video Data RC Link for Drone 15-20-30-50-100-150km 1.4G / 2.4G / 5.8G transceiver transmitter-receiver Vcan1818 -
10W PA 150KM airborne video data link long-range UAV wireless transmission transmitter receiver broadband tactical handhold -
UAV drone video data link module wireless video transmitter and receiver for camera long-range TDD transceiver two-way vcan1401 -
COFDM video transmitter-receiver AV in HDMI out FPV, Wireless 10km-15km-30km long-range cheaper and longer COFDM-912T -
30Km long distance COFDM HDMI Wireless Video Transmitter Receiver full Set Audio Video TX RX for UAV Drone 1080P 908T -
Two-way UAV Wireless Video Data RC Control Link module long-range bidirectional transceiver Transmitter-Receiver Vcan1681 -
COFDM Wireless Video HDMI Transmitter TX Transmission HDMI HD 1080P CVBS H264 Encoder COFDM-907T -
Wireless Video Transmitter and Receiver for Camera, HDMI HD H265 264 encoder 1W/2.5W PA 1080P60 Vcan1726 -
80KM wireless transmitter-receiver Video Data RC Transmission System HDMI SDI long-range low latency Vcan1702 -
30-millisecond Drone UAV HDMI Wireless video transmitter Ultra-low-latency wireless transmission system Vcan1729 -
IP mesh ad hoc transceiver OFDM transmitter receiver Wireless Video Data Transmission for drone IP camera -
PA rf Power Amplifier for DVB-T COFDM TX Transmitter transmission 1w 2w 5w 10w 15w -
COFDM Modulator Demodulator Module Encoder Decoder HDMI CVBS AV Input AES 256 FHD RF streaming -
HDMI To IP encoder modulator CVBS H.265 H.264 encoding board pcba Ethernet LAN HTTP RSTP UDP ONVIF TCP IP Vcan1746 -
COFDM IP wireless video data transmitter module One-way Ethernet transparent transmission network port vcan1816 -
Ground robot two-way wireless data video audio transmitter receiver four channel SDI input 2W PA with receiver -
IP mesh video data network transmitter transceiver 自组网宽带电台
2W PA 27KM Real Test from mountain top to seaside Line-of-Sight
Latest 110km test video for the drone Long-range Wirless Video Transmitter and Receiver
Latest test video for the drone Long-range Wirless Video Transmitter and Receiver
NLOS wireless video transmitter and receiver test video in building indoor lift non line of sight
65 KM drone UAV Really fly Test Wireless Video Transmission
1.5km for ground NLOS, 10-20-30km LOS air to ground wireless video transmitter receiver transmission
80KM wireless transmitter-receiver Video Data RC Transmission System HDMI SDI long-range low latency
COFDM-912T NLOS (non-line of sight) 1.5km real test in city, buildings, trees and roads
Web Device Management UI for UAV wireless video data link transmitter transmission by IP Net camera
6.5 KM drone UAV Really fly Test Vcan1643 Main Feature
One HDMI Wireless Video Transmitter to many receivers for home meeting show room.
SDI Camera input encode board + Wireless Video Transmitter assembly DIY
COFDM-907T HDMI + CVBS input NLOS (non-line of sight) 1.5km real test in city, buildings
Cheapest CVBS RCA 720P Wireless Video Transmitter + 1080P Receiver Support 128 encryption
How to set encryption on the transmitter and receiver to protect your privacy
COFDM-912T Really test in the complex city environment, transmitter in the car, receiver in the building
Modify the COFDM Wireless Video Receiver to 890 900Mhz, out of normal DVB-T reception range
Cheap Wireless video transmitter and receiver's small screen has great help on signal strength lock
Modify our tv box to 445.5Mhz 7M bandwidth COFDM DVB T wireless transmitter transmission receiver box
COFDM-905T COFDM Wireless Video Transmitter with two board, Encode board and transmitter board
COFDM-905T Wieless Video Transmitter by CVBS video input test video
how to connect mini wireless HDMI video transmitter and receiver kit use android phone as receiver
OFDM Wireless Video Transmitter for IP Cameras Lightweight Long Range Transmission Automatic Network
Transmission Distance
PA Power Amplifier Inside
Flight Control Protocol
Transmitter Video Input
Wireless Transmit Method
Obstacle and Sight
Encrypt and decrypt
Transmission Carrier
Data Direction
For
Frequency
Application Place
Feature
Antenna
Countries Sold
FAQs about Wireless Video Transmitter and Receiver
1. What types of video inputs port does your wireless video transmitter have?
Our wireless video transmitters have these types of video input interfaces: HDMI 1080P and 4K HDMI, CVBS composite, SDI, AHD, IP Ethernet, BNC, or tell us what type do you need, our engineer will modify to meet your demand.
2. What is the transmission distance supported by your wireless video transmitter?
Our transmission distance can be adjusted by adding power amplifiers. At present, the main ones are 15km, 30km, 50km, 80km, 100km , and 150km, which depend on the needs of customers.
Of course, the transmission distances listed above are all within LOS the line-of-sight range. If there are obstacles between the transmitter and the receiver, NLOS (the non-line-of-sight), the transmission distance is greatly reduced, only 1km or 2km, depending on the number of intermediate obstacles and the local wireless environment.
3. What is one-way or two-way? Simples vs half-duplex, full-duplex
One-way means, We can only transmit and download video or data from the wireless video transmitter to the receiver in one direction, and we cannot upload video or data from the receiver to the transmitter. This type is also called simplex.
Two-way means that, not only we can download video or data from our wireless transmitter to the receiver, but also we can upload the video or data from the receiver to the transmitter. This is very suitable for operating drones. You can not only see the real-time video transmitted from the drone, but also upload the command to control the drone or the command to control the PTZ camera to adjust the angle to the transmitter. This can operate simultaneously. This type also named half-dulpex or full-duplex.
Please check the details at the below link. https://ivcan.com/request-a-quote-of-wireless-video-transmission/#simplex
4. Does your HDMI video transmitter support encryption and receiver decryption?
Most Wireless video transmitters now support AES128 or AES256 bit encryption and decryption, depending on which model you choose. Please contact us to verify.
5. Can the frequency of the wireless video transmitter be modified after ordinary users receive the goods?
The frequencies of both the wireless video transmitter and the wireless video receiver can be modified. Users need to purchase additional parameter configuration boards.
However, considering that the corresponding power amplifier and antenna are already fixed within a certain range when the goods are sent out. If the user adjusts the frequency of the transmitter, the corresponding power amplifier, transmitter antenna and receiver antenna should also be modified to the same frequency, and these users need to be prepared. If not, it will cause the frequency of the wireless video transmitter to be different from the frequency of the antenna, making reception difficult. So please be sure to inform the correct frequency you need before placing an order.
If it is for security or confidentiality, you can use the encryption and decryption functions of the transmitter and receiver, which can ensure that your video transmission is private. .
6. I saw that your model is very similar to my needs, but I need to modify one of the parameters, is that possible?
Yes, all our product parameters can be customized according to customer's needs. If you have a special request, please let us know via the link below.
https://ivcan.com/request-a-quote-of-wireless-video-transmission/
7. What should I do if my wireless video receiver shows a weak signal?
- Change the place of the receiver to avoid potential local interference from strong magnetic environments.
- Ensure that the antennas on both the transmitter and receiver are vertical.
- Please raise the antennas of the transmitter and receiver to maintain a certain height difference.
- Please look around to ensure that there are no obstacles between the transmitter and receiver.
- Change the orientation of the receiver antenna.
- If it doesn't work, try moving the receiver to be near the transmitter's position to see if it exceeds the effective wireless transmission distance.
- Or consider adding a relay of the transmitting between the transmitter and receiver.
- The antenna should be as high off the ground as possible, as the ground will absorb the transmitted signal.
8. Can I buy modules of the transmitters and amplifiers only? I want to assemble them into my equipment.
We can, of course, supply wireless video transmitter modules and power amplifiers.
For the first sample test, I recommend that you purchase the entire set of products because our engineers have optimized the parameters to achieve the best performance.
After you have completed your test verification, you can remove the case or heat sink, install it in your device, and constantly adjust the parameters to achieve the best performance. In the future, you will be able to purchase only the modules or accessories that you require.
9. Can you take a test video for me to see before shipping?
Of course, we also understand that wireless video transmission transmitters and receivers are very expensive. You are far away from the China factory. and hope that the goods you receive are fit for the best performance.
If you pay special attention to a specific parameter or function, we can take some test videos based on the features you want to see, please feel free to contact us. It won't be shipped to you directly without your approval.
10. How to test the latency of wireless video transmitters and receivers?
To test the delay of the wireless video transmitter and receiver, we need to do two tests.
The first is to test the delay from the camera to the display.
The second is the camera, plus the display plus the wireless image transmission transmitter and the delay of the receiver.
Subtracting the two test results is the real delay of the wireless video transmitter and receiver.
As a professional long-range HDMI wireless video transmitter and receiver supplier and manufacturer in China Shenzhen, we produce the best wireless video transmitter and receiver for many years, and we got a good reputation and best reviews.
Some famous brands of wireless video transmitters, like Blackmagic, Holyland mars 300 400s, Accsoon cine eye 5g, RavenEye, Zhiyun, Inkee benbox, actiontec, CVW SWIFT 800, dahua, iogear, Artek pat-225k, microlite, nyrius, teradek.
The best budget wireless broadcast video transmitter and the receiver have many applications, for 4K tv, CCTV security camera, vehicle backup camera, PTZ video camera kit, battery-powered, computer, sony camcorder, wifi video conference system, CANON DSLR, UAV drone, pc computer laptop, projector, in-car, iPhone iPad, live streaming, GoPro sports camera, raspberry pi, Xbox.
The full HD video, audio, data link smallest 1080P wireless video transmitter and the receiver has many input and output connectors, like AV composite CVBS, HDMI, SDI, BNC, VGA, USB.
The wireless video transmitter sender TX RX frequency has 170-806Mhz, 1.2ghz, 2.4G, 5.8G, lowest but not zero latency. In order to support longer distances, the power amplifier has 10w, 20watts, and even 30W.
What is a best buy FHD wireless video transmitter at a cheap price? It should consider your details requirement, choose suitably, not expensive, if you have any doubt, please fulfil the request a quote form, our engineer will offer you a solution.
Latest 2W Power Amplifier 27 KM long-range wireless video transmitter receiver living demo image data link transmission in 2022
27 KM long-range wireless video transmitter receiver from the mountaintop to the seaside, tested the wireless video + data + control link for UAV In order to better show our customers the actual support distance and use the effect of the 2W PA 30km long-distance image transmission transmitter and receiver, [...]
Read More
06
Feb
Feb
New long-range wireless video transmitter and receiver for drone camera 110km 10W PA wireless video data audio link real test
110km test video of the long-range wireless video transmitter and receiver for the drone video camera Why do we want to do this 110km long-range test this time? Some clients ask me the longest distance of the wireless video transmitter and receiver, now we recommended this 10W Power Amplifier model, [...]
Read More
07
Oct
Oct
Latest Wireless Video Data Audio Transmitter and Receiver Test Video in 2022
Wireless Video Data Audio Transmitter and Receiver TX900 2 Watts 27km test video from mountain top to the seaside. (Video inside) Wireless Video Data Audio Transmitter and Receiver, Two-way, Download-Upload A customer saw our real test video about the 2 watts Power Amplifier 27km long-range wireless video transmitter and receiver. He [...]
Read More
01
Sep
Sep
60-80 km wireless video transmitter receiver transmission really flying test
Really a drone flying test of 60-80 km wireless video transmitter receiver transmission This is a video transmitter and receiver for drone UAV cameras, the best in 2023, and it has many satisfied reviews. It also supports ground to ground, if you have any project that needs a video transmitter [...]
Read More
24
Oct
Oct
UHF Digital Long-Range Video Transmitters are becoming increasingly popular for live streaming events due to their many advantages. These transmitters offer a reliable and secure way to stream video from a remote location to a receiver. They are also capable of transmitting high-quality video and audio signals over long distances, making them ideal for live-streaming events.
One of the main advantages of UHF digital long-range video transmitters is their ability to transmit high-quality video and audio signals over long distances. These transmitters are capable of transmitting signals up to several miles away, making them ideal for live streaming events that require a long-distance connection. Additionally, UHF digital long-range video transmitters are designed to be highly reliable and secure, ensuring that the video and audio signals are not interrupted or compromised during transmission.
Another advantage of UHF digital long-range video transmitters is their low power consumption. These transmitters require very little power to operate, making them an energy-efficient option for live-streaming events. Additionally, UHF digital long-range video transmitters are designed to be lightweight and portable, making them easy to transport and set up for live-streaming events.
Finally, UHF digital long-range video transmitters are designed to be user-friendly and easy to operate. These transmitters come with intuitive user interfaces that make it easy to set up and configure the transmitter for live-streaming events. Additionally, UHF digital long-range video transmitters are designed to be compatible with a variety of devices, making them a versatile option for live-streaming events.
Overall, UHF digital long-range video transmitters offer many advantages for live streaming events. These transmitters are capable of transmitting high-quality video and audio signals over long distances, are highly reliable and secure, require low power consumption, are lightweight and portable, and are user-friendly and easy to operate. As such, UHF digital long-range video transmitters are an ideal option for live-streaming events.
Please contact us if you need any further information about UHF Digital Long-Range Video Transmitter.
