UAV Video Transmitter and Receiver

Detailed Product Description


60KM LOS UAV Video Transmitter and Receiver 1.2GHz Wireless Video System 8 Channels​ ​
Description:
The wireless video transmission equipment is excellent all aspects of performance are more varieties, and its large power margin, more suitable for the complex physical environments. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5~10KM or so, if the raising of the high gain directional antenna, increased to 15KM away; on UAV transmission reach 60KM. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with a common AV interface, can easily work with the camera, VCD, DVD, and all other conventional AV interfaces compatible.
It’s not only a professional wireless CCTV transmitter and receiver for CCTV security projects but is also used in the line of FPV systems, UAVs, RC airplanes/helicopters, and Video and Data signals at the same time in cars of Unmanned Equipment.

Features:
1. Wireless transmission: no need to set up a communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable, and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long-distance wireless transmit projects, and particular use in military projects.
9. 60KM transmission on UAV.
Specification:

 Installing:
A. The line has 5 plugs for connecting the transmitter, camera, and power supply
One of the line’s points connects to the transmitter, and another has 4 plugs (red, yellow, white, and black)
The red plug connects DC 12V/1000mA, and can also connect the battery
White and yellow plugs connect to the camera’s audio and video apart
And black one connects the camera’s power input jack

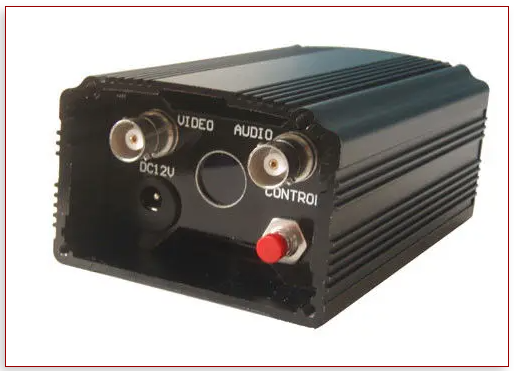

B. Push the control button, can change the channel of the receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into a saving power model
Then push it again, can replay
The function can be able to lock the channel, so as to avoid mistaking the operation

C. Set the same channel with transmitter and receiver
