UAV HDMI Video

7-8km UAV HDMI Video, Ethernet, and Bi-directional Data Link

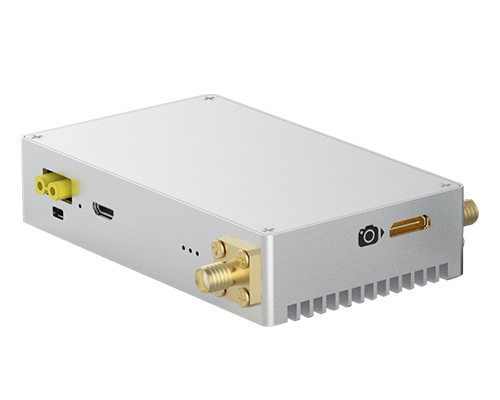

FPS-8408 is a mini COFDM video transmitter that offers a video, Ethernet signal, and bi-directional Data Link specifically designed for commercial UAVs/Multi-rotor and industrial drones for 7-8km wireless transmitting.
Frequency Option

➢ 800Mhz: 806-826Mhz
➢ 1.4Ghz: 1428~1448 MHz
Key Features
➢ Video Input Interface: HDMI and Ethernet
➢ Both 1400Mhz and 800Mhz have penetrated ability for barriers
➢ 1* Serial Ports: Bi-directional Data Transmission
➢ 2* Antennas: Dual Tx antenna and Dual Rx antenna
➢ 3*100Mbps Ethernet port supports TCP/UDP
➢ 1/4 inch screw hole on Tx for fixing on UAV
➢ Latency less than 50ms
➢ H.264 Video Compression
➢ Baud Rate: 115200bps

➢ Support MAVLINK TELEMETRY
➢ Support 2T 2R
➢ NLOS transmission with 800Mhz and 1.4Ghz
➢ Working Temperature: :-40 ~+ 85℃
➢ CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation
➢ Conductive anodizing craft improves the integrity of RF signals

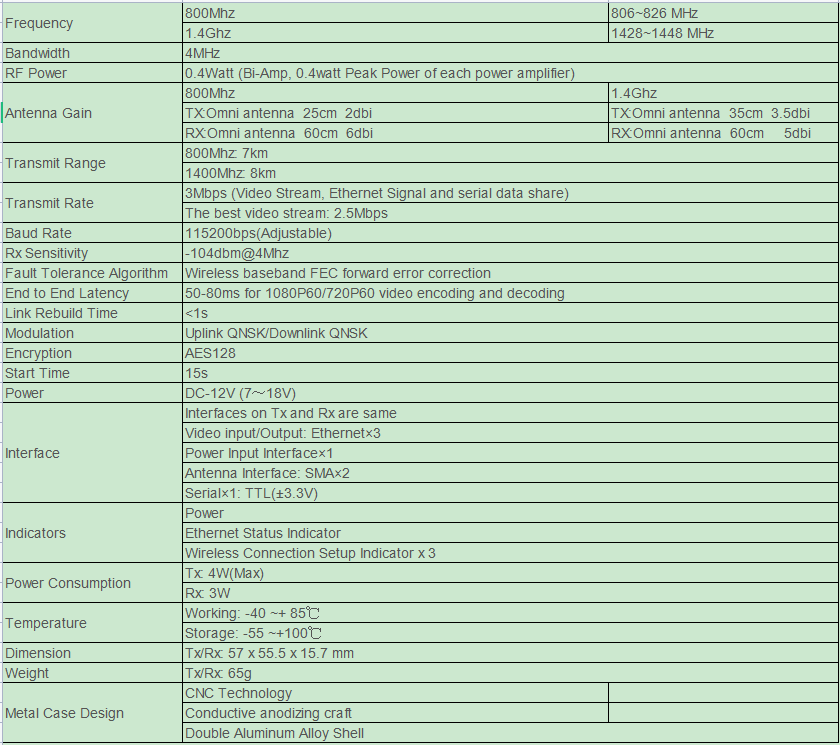

Specifications
