| Video Encoding: | H.264 | Encryption: | AES 128 |
|---|---|---|---|
| Video Input: | CVBS Or HDMI+CVBS | Modulation: | Cofdm 2K |
| Constellation: | QPSK,16QAM,64QAM | Bandwidth: | 2/4/8MHz |
| High Light: | UHF COFDM Video Transmitter ule, QPSK COFDM Video Transmitter, COFDM 2K Wireless Video Transmitter |
Product description:

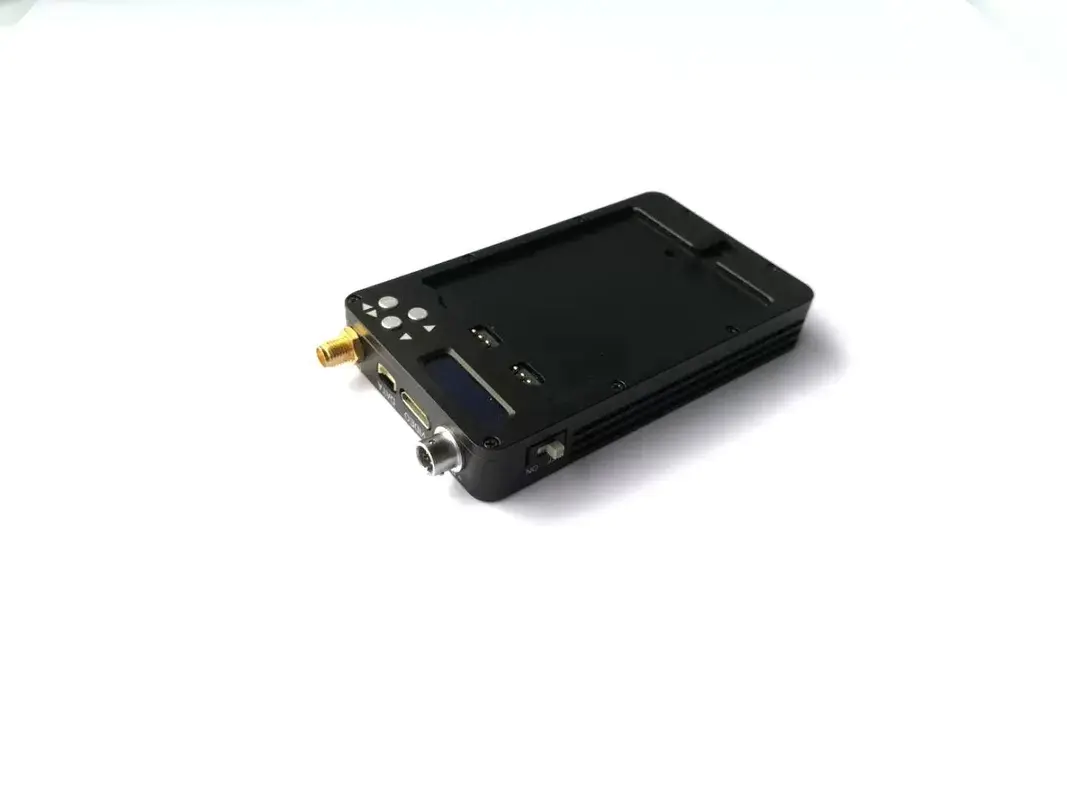

H.264 Mini HD-HDMI/ CVBS COFDM wireless video transmitter,Using the core of 4th generation mobile communication COFDM multi carrier modulation technique and efficient H.264 compression encoding method,Integrated high brightness and low power consumption OLED display control interface,integrated molding design,setting the digital modulation, digital audio & video compression in one,highly integrated HD mobile, non line of sight digital image transmission equipment, compact size, light weight.It can transmit full HD 1080P video and audio in a block building environment or transmit high quality full HD 1080P video and audio in high-speed mobile environment.This model is divided into HDMI+CVBS and CVBS versions.
Product features
● Support high definition analog video input NTSC/PAL
● Support HD mini HDMI 1080P, 720P video input, provide good compatibility
● Menus can be changed at any time
● Support military level non-standard 128 bit dynamic AES encryption
● Support non line of sight (NLOS), high-speed mobile transmission
● High performance, high capacity lithium battery powered (battery can be replaced)
● Small size, light weight, easy to carry, using air-cooling fin aluminum shell
●OLED display control interface with high brightness and low power consumption
Technical characteristics
| Voltage | DC 6~12V(reverse polarity protected) |
| External lithium battery DC7.2V/1400mA(Replaceable) | |
| Current | 600mA-12V/0.8W(CVBS) |
| 700mA-12V/0.8W(HDMI/CVBS) | |
| Video input(optional) | CVBS |
| CVBS+Mini HDMI | |
| Audio Input | Lotus interface |
| Audio Coding | ISO/IEC13818-3(MPEG-1) |
| Bandwidth | 2/4/8MHz |
| TX Frequency | 300MH~860MHz stepping in 1MHz(other frequencies on request) |
| RF Output Power | 26dBm/400mW(can be customized) |
| RF interface | SMA |
| Encryption | dynamic 128 bit AES encryption |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Carriers | 2K |
| Encoding | H.264,MPEG-2 |
| Modulation | COFDM |
| Constellation | QPSK,QAM16,QAM64 |
| Parameter control mode | Through OLED display panel to setting the relevant parameters |
| Dimensions | 100mm*59mm*16mm |
| Weight | 140g |
| Temperature | -20℃~70℃ |
| HN-512PRO accessories | 7.2V/1400m Lithium battery and charger 5-pin aircraft head wiring, |
| Compatible receiver | SK-320 receiver module /HN-320 receiver SK-620 receiver module HN-430HD hand-held receiver |
Application: This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation,video surveillance,real-time wireless video transmission and other fields
-
