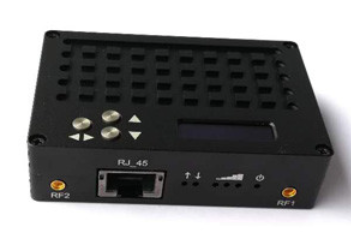

Mini UAV Data Link

Mini UAV Data Link

DC Input Range: 7-17V DC
Ethernet: 10/100 BaseT、Auto-MDI/X、IEEE 802.3 TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Ouput Power: 30dbm
Bandwidth: 2MHZ/4MHz/8MHz
Encryption: 128 Bit AES
Correction Mechanism: 32 Bit Of CRC,ARQ
Modulation: TDD_COFDM,Time Division Duplex Mode
Dimension: 74mm52mm20mm
Weight: 90g
Data Transmission: RS232/RS485/RS422
High Light: audio video transceiver, wireless hd transceiver

2.4GHZ Mini UAV data link full duplex TDD-COFDM video data transceiver for UAV system

Product Introduction:

the TDD_COFDM this product is our company’s released latest mini-type pure digital wireless transmission equipment, the use of advanced time division processing technology and leading COFDM modulation technology, providing a complete two-way data transmission channel, high-definition video transmission channel, the perfect realization of real-time, high-speed mobile data, audio and video transmission.

Applications:

Compact size, lightweight, widely applied for UAV systems, high-speed railway, fire fighting, security, intelligence control, and other complex environments.

Product features:

● Support for up to 20Mbps data flow, adaptive dynamic stream allocation technology

● Support multiple bandwidth regulation (2M/4M/8M), adaptive modulation, and manual modulation mode selection

● Support diversity antenna receiver

● Support 128-bit AES encryption

● Support transparent PTP&PMD network transmission technology

● Support nonline of sight (NLOS), high-speed mobile transmission

● Support high-standard industrial applications

● Provide standard RS-232 & RS-485 + RJ45 interface

● High definition OLED panel digital display, simple interface easy to operation

●Small size, light weight, low power consumption

Technical parameters

Power input DC 7~17V
Ethernet 10/100 BaseT,Auto-MDI/X,IEEE 802.3 TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FT P,DNS
Data input RS-232&RS-485-H/RS-485-F RJ45

Output frequency	2402MHz-2482MHz,Step 1MHz adjustable
Output power	30dBm/1W
Bandwidth	2.0 MHz /4.0MHz/8.0MHz
Encryption	128-bit AES (can customize 256-bit AES)
Correction mechanism	32 bit of CRC, ARQ
Modulation	TDD-COFDM, Time division duplex mode
RF Antenna interface	MMCX
Parameter control	By adjusting the parameters of OLED control
Dimensions	74m*52mm*20mm
Weight	90g
