| Encryption: | AES 128 | Video Input: | CVBS+SDI /CVBS+HDMI |
|---|---|---|---|
| Modulation: | Cofdm | Bandwidth: | 2/2.5/4/8MHz |
| Output Power: | 33dbm | Video Encoding: | H.264 |
| Radio Frequency: | 300~860MHz, Stepping1MHz | Audio Channel: | 2 Channels |
| High Light: | long distance video transmitter, long range wifi transmitter |

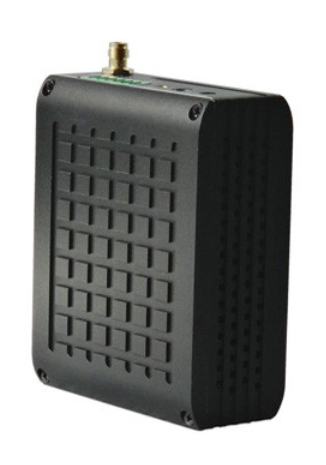

lightweight cofdm video transmitter industrial grade long range UAV transmitter
Product description
This product is our latest Mini HD-SDI wireless video transmission device, using advanced video preprocessing technologies and efficient video coding algorithms, the device has refined the improve of coding efficiency, reduce the coding delay, algorithm optimization,anti-ber, and improve the quality of the video, it can be used the lowest rate to achieve the best image compression.
Features
● Support D1 SD Resolution
● Support SDI embedded audio HD1080,720P,576,480,
Provide good compatibility.
● Support NLOS, High-speed movement transmission
● Highly integrated modular design
● Small size, Lightweight, Easy to carry, using air-cooling fin aluminum shell
● Digital panel display, simple interface, easy to operation
●High output power(2W), supports long-distance transmission
Application
This product is widely used in high quality and high standard requirements of aerial photography, News, sports events, hidden investigation, video surveillance, real-time wireless video transmission, and another field
Technical Characteristics
Posts
| Voltage | DC12V |
| Current | 2100mA |
| Video input | AV:3.5mm port, SD analog video signal Camera:2.5mm port,external SD camera SDI:support HD1080P,720P,576,480,with audio de-embedding function |
| Radio Frequency | 1250MHz-1450MHz,adjustable,Stepping 1MHz |
| Output power | 20-33dBm, adjustable,Stepping 1dB |
| Bandwidth | 2/2.5/4/8MHz |
| Encryption | AES |
| FFC | 1/2,2/3,3/4,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Encoding | H.264 |
| Modulation | COFDM, QPSK |
| Control Mode | LCD control panel to setting |
| Operating temperature | -10℃ ~ 75℃ |
| Dimensions | 90mm*70mm*32mm |
| Weight | 228g |

-
