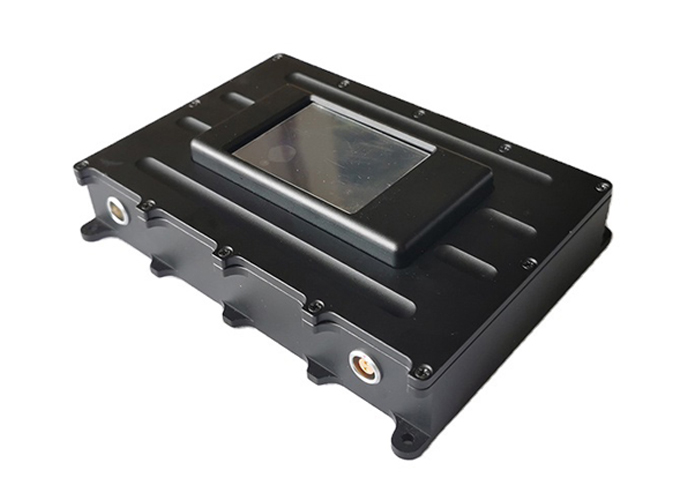

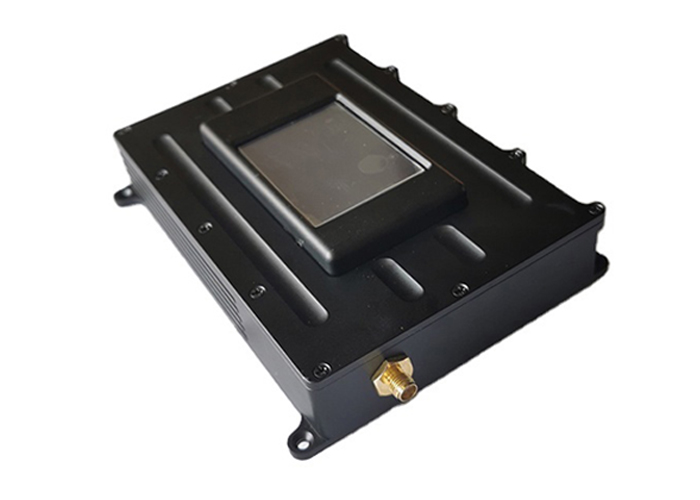

Lightweight COFDM Wireless Video Transmitter for UAV

Detailed Product Description

Frequency:250-4400MhzAV Interface:HDMI/SDI(have To Choose One)
Encryption:AES128/256bitsVideo Compression:MPEG4/H.264
Dimension:132*90*25mmWeight:420g

Lightweight COFDM Wireless Video Transmitter for UAV

Lightweight COFDM Video Transmitter Features:

Support Full- HD quality image;

Support 1080i/1080P HD transmission;

COFDM modulation;

Built-in with HDM or HD-SDI interface(single selection);

Support composite standard video and balanced audio input;

All parameters can be adjusted by the user;

Wireless COFDM Transmitter Introduction:

Such a new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique), which can transmit good quality and stable full-hd digital video signal under the condition of high-speed mobile and heavy building blocks transmission in a city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balanced audio input and narrowband transmission system.

Specification:

VoltageDC11V~DC16V
Current≤1.1A/DC12.5V
Video InputAV: 3.5mm port, connect to standard resolution analog video signal
HD/HDMI: support HD1080P,720P,576,480;
Frequency300-4400MHz (optional)
Bandwidth2/2.5/4/8MHz(adjustable)
Output power3W
Data encryptionAES (user-defined password)
ModulationCOFDM
FEC1/2, 2/3, 3/4, 7/8
Guard Interval1/32, 1/16, 1/8, 1/4
Video CompressionH.264
Standard Video FormatPAL/NTSC (auto adaptation)
Parameter control methodSet the related parameters through the control panel
RF InterfaceSMA
Working temperature-20℃~75℃
Transmission distance1-40km max LOS (on air)
Dimension132*90*25mm
Weight420g

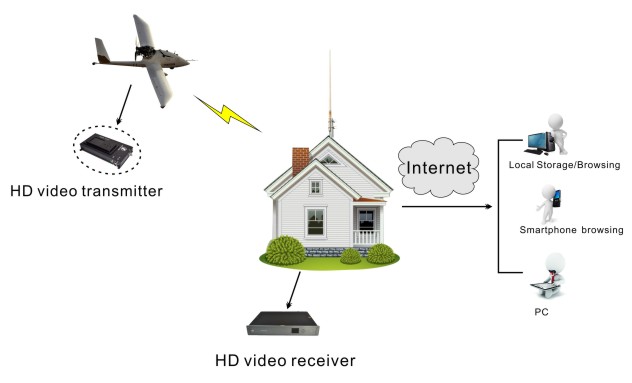

UAV / Drone COFDM Transmitter Application:
