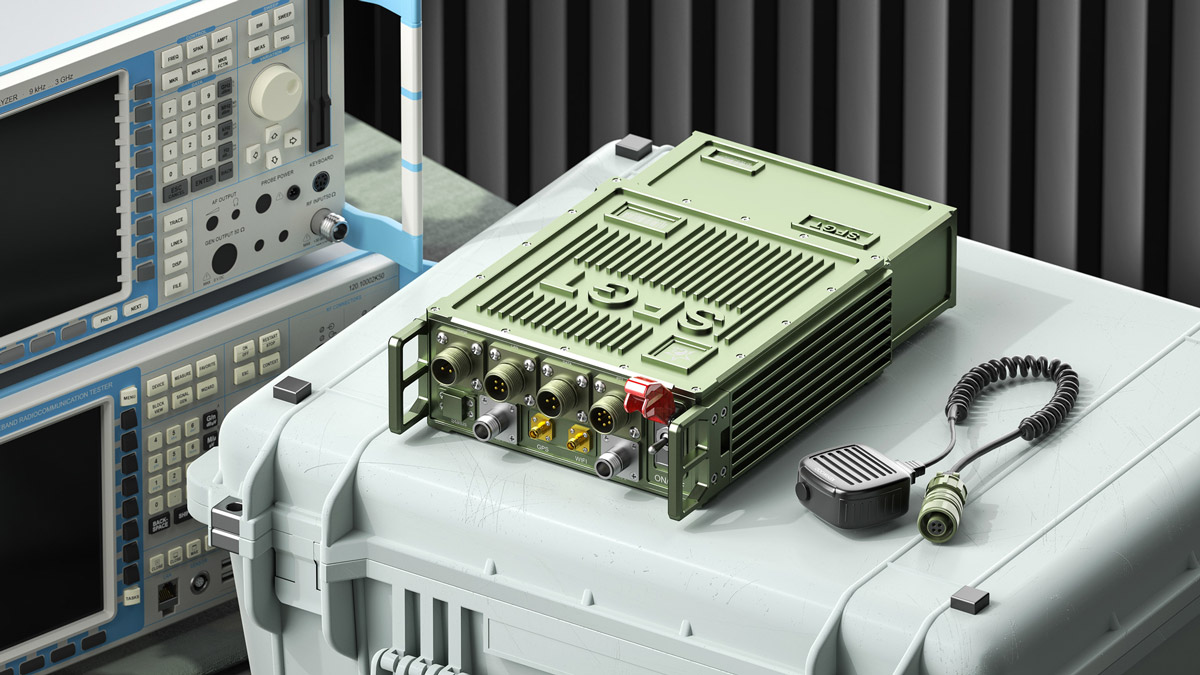

IP Mesh for Manpack Vehicle
IP MESH adopts Safe Guard’s (SFGT) key technology of COFDM modulation and MIMO ad-hoc network as its core, allows a group of mesh nodes to form a seamless and highly safe private centerless network in NLOS and moving conditions. The COFDM IP MESH network can be in chain network, star network, or random networks. The chain network is ideal for range extension to reach a maximum range. The star network is great for application in urban environment mission coverage. The random network allows mesh nodes to organize themselves in any shape.
Unlike other wireless solutions, the IP MESH has self-managing ability, up to 32 mesh nodes working simultaneously. The COFDM IP MESH keeps adjusting itself when node working in moving condition, to select the best route for range extension and signal communication between each mesh node. What’s more, the IP MESH also has self-healing feature. When one of the node stops working, the rest of the nodes can communicate with each other directly or through one or more intermediate nodes. With high flexibility in mesh topology, the data and video can be exchanged in poin-to-point, poin-to-multipoint or multipoint-to-multipoint.

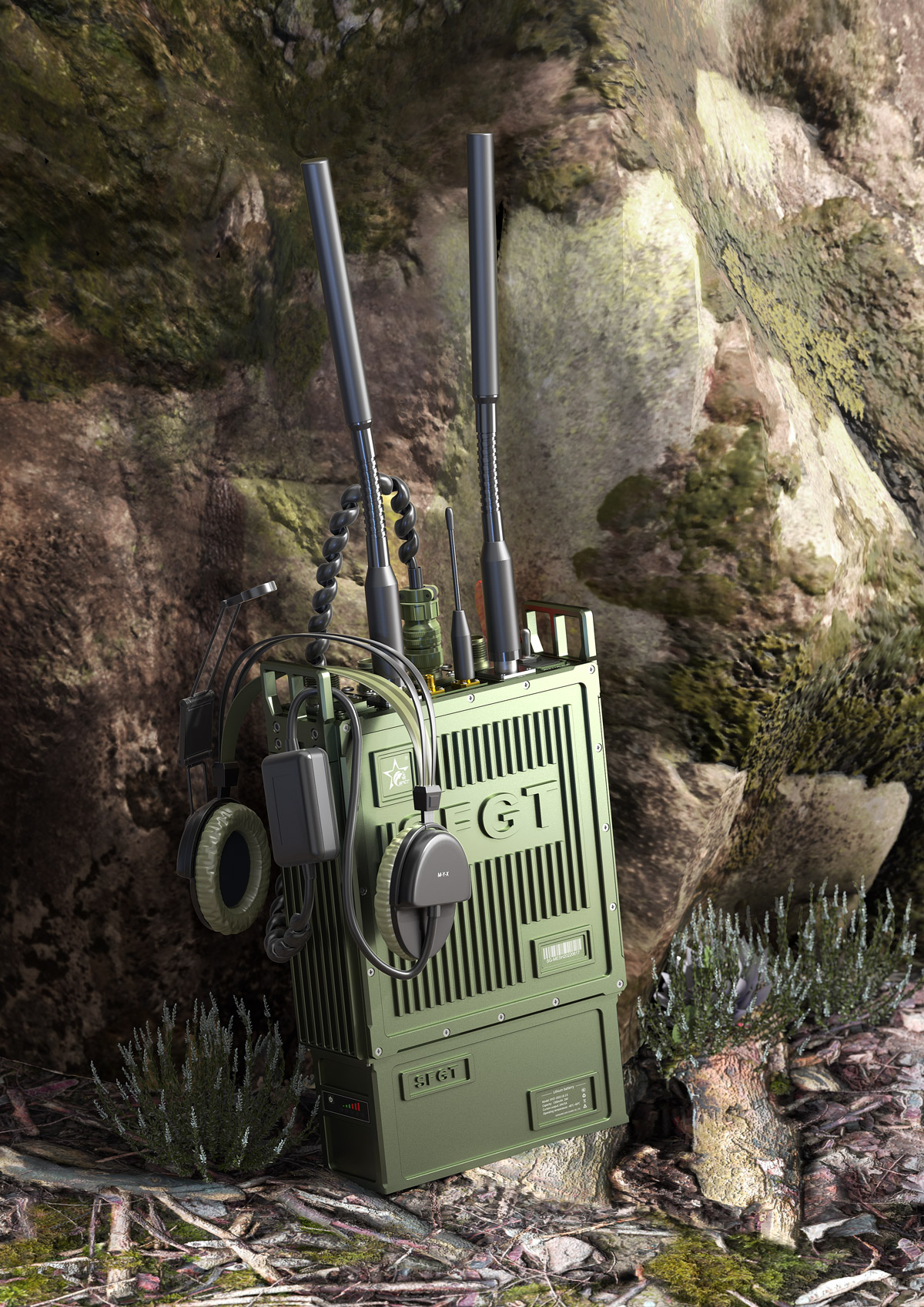

The MP IP MESH is designed for tactical soldier manpack wireless video voice and data communication mission. It can quickly build reliable wireless links for users in complex environments, and provide fast and flexible solutions for various requirements (such as: high-definition video transmission, voice intercom, IP data transmission, etc.).
It is suitable for public security, armed police, fire fighting, troops and other fields; it is also suitable for mobile vehicles, ship equipment, to realize uninterrupted communication between vehicles and vehicles, vehicles and individual soldiers, and individual soldiers and individual soldiers.
1. COFDM modulation with Efficient channel codec and multi – hop AD – hoc network protocol technology;
2. Strong function of anti complex environment;
3. Self networking without station and high efficiency;
4. All nodes can act as information acquisition node relay node or information output node at the same time;
5. With IP interface, can be connected with other IP device.
|Transfer characteristic||Data characteristic|
|Frequency||566-626MH/606-678MH(others can be customized）||Video input||HDMI+IP camera|
|RF power||37-40dbm||Audio input||MIC/PTT|
|Modulation||COFDM/LTE/FPGA||Encryption mode||AES128 or user defined|
|Constellation modulation||BPSK/QPSK/16QAM/64QAM(self adaption）||Built in module||WiFi/bluetooth/GPS/BEIDOU|
|FEC||1/2, 2/3, 3/4, 5/6（optional）||Physical characteristic|
|RF bandwidth||5/10/20MHz(Customizable)||Protect grade||IP65|
|Sensitivity||[email protected]||Operating tempreature||-20℃~+55℃|
|Transfer rate||Peak [email protected]||Storage environment||-50℃~+70℃|
|Distance||15-20KM LOS||Weight||2.2kg with battery|
|Network capability||Up to 64 nodes||Dimension||200*140*55mm|
|Working voltage||DC22-28V||Working current||2.5A(classic)|
