| Encryption: | AES 128 | Video Input: | SDI+CVBS /HDMI+CVBS |
|---|---|---|---|
| Modulation: | Cofdm | Bandwidth: | 2/2.5/4/8MHz |
| Output Power: | 26dbm | Video Encoding: | H.264 |
| Radio Frequency: | 300~860MHz, Stepping1MHz | Weight: | 188g |
| High Light: | mini video transmitter, miniature video transmitter |

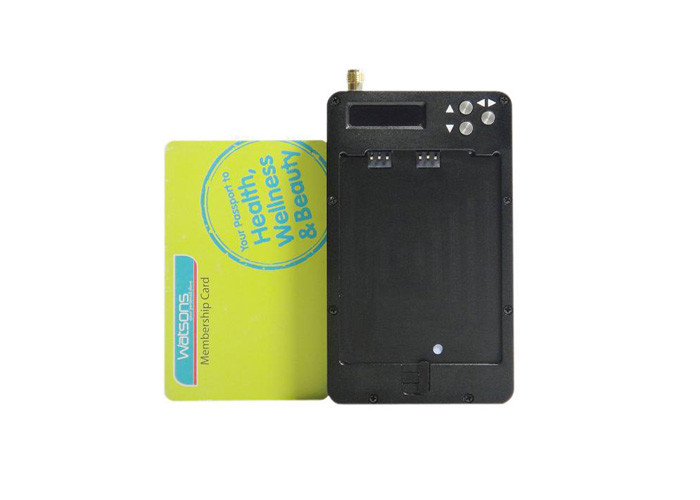

H.264 mini cofdm transmitter full HD 1080P lightweight 10-30KM UAV video transmitter
Product Description
Mini H.264 HD-SDI COFDM wireless video transmitter.Using the core of 4th generation mobile communication COFDM multi-carrier modulation technique and efficient H.264 compression encoding method. Integrated high brightness and low power consumption OLED display control interface, set the digital modulation, digital audio & video compression in one, highly integrated HD mobile, nonline of sight digital image transmission equipment, small size, lightweight. It can also transmit full HD 1080P video and audio in a block building environment.
Features
● Support composite video NTSC/PAL video input
● Support HDMI 1080P, 720P,576,480/ HD-SDI HD digital video input, provide good compatibility
● Support nonline of sight (NLOS), high-speed mobile transmission
● Highly integrated combination of modular design
● High performance, high capacity lithium battery powered (battery can be replaced)
● Small size, lightweight, easy to carry, using air-cooling fin aluminum shell
●OLED display control interface with high brightness and low power consumption
Application
This product is widely used in high quality and high standard requirements of aerial photography, News, sports events, hidden investigation, video surveillance, real-time wireless video transmission, and another field
Technical Characteristics
| Voltage | DC7.2V(lithium battery 7.2V/1400mA) |
| Current | 900mA |
| Video input | AV:3.5mm port,external SD analog video signals Camera:2.5mm port,external HD camera SDI/HDMI(option):Support HD1080P,720P,576,480,with audio de-embedding function |
| Radio Frequency | 300~860MHz, Stepping1MHz (Other frequencies be customized) |
| Bandwidth | 2/2.5/4/8MHz |
| Audio channel | 2 channels |
| Audio encoder | ISO/IEC13818-3(MPEG-1) |
| Video encoding | H.264(MPEG-2 option) |
| RF interface | SMA |
| Output power | 26dBm/400mw |
| Encryption | AES |
| Modulation | COFDM 2K |
| Modulation mode | QPSK,QAM16,QAM64 |
| FEC | 1/2,2/3,3/4,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Operating temperature | -20～75℃ |
| Parameter control mode | Through OLED display panel to set the relevant parameters |
| Dimensions | 100mm*59mm*23mm |
| Weight | 188g (without battery) |
-
