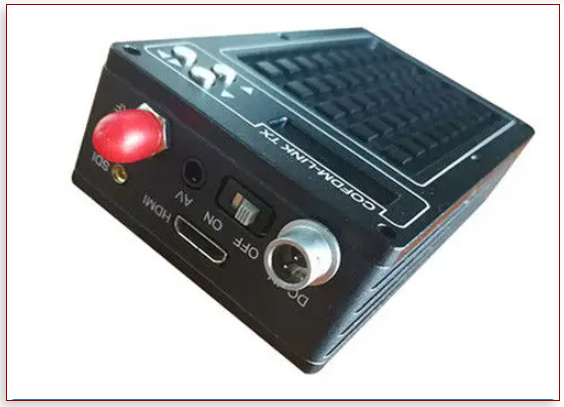

Full HD Microwave COFDM Transmitter

Full HD Microwave COFDM Transmitter

Detailed Product Description

Voltage:	DC12V	Audio Input:	AV
Video Input:	HD & SDI & CVBS	Working Frequency:	300MHzd-4400MHz (subdivided)
Modulation:	COFDM 2K	Encryption:	AES User-defined Password
Video Coding:	H.264	Weight:	300g

Full HD Microwave COFDM Transmitter, Mini UAV Video Transmitter 20km LOS Range

HD, HD-SDI, AV 3 ports COFDM Transmitter Description:

COFDM full HD transmitter for UAV (KP-HD153P) is an exclusive design Mini H.264 HD wireless video transmitter with the 4th generation mobile communication core COFDM multi-carrier modulation technology and high-efficiency innovative H.264 compression code.

HD video audio monitor 50km COFDM wireless transmitter for UAV has strong light, low power consumption of OLED display control panel, integrated digital modulation, audio and video compression in the combo. remote control aviation COFDM transmitter is suitable for mobile image, and HD video, and it performs well in NLOS digital video transmission.

HD video audio monitor 50km COFDM wireless transmitter for UAV KP-HD153P is not only small& light but also has a good performance. For example, it can transmit high-quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

It is widely used in UAV aviation filming, military, covert investigation, image monitoring, ing, and real-time wireless video transmission.

Feature:

• 1080P HD transmitter
• small and light
• safe and reliable
• well performance :NLOS/LOS distance: 500m/20km
• prompt transmission: Only 150ms delay for the whole system working
• New exclusive design product with COFDM
• easy to carry and hide

COFDM Technique Advantages:

• Strong interference: The COFDM wireless transmitter is effectively against the multipath interference of signal waveform with the COFDM modulation. When the frequency selective fading occurs due to multipath transmission in the channel, only the subcarriers in the band depression and the signal carried by them are affected. The other subcarriers are not affected. Therefore, the overall bit error rate of the system is lower.
• Anti-multipath fading: COFDM wireless audio video transmitter is effectively against interference with the multi-carrier technique (COFDM). Compared to the single carrier, the multi-carrier is inherently resistant to time delay and has a strong multipath capability. With joint coding of subcarriers & frequency diversity of the channel, the system’s performance is improved. Therefore, COFDM wireless system is suitable for multi-path environments and fading channel high-speed audio video data transmission.
• LOS & NLOS operation: with strong penetration, strong diffraction & strong anti-interference, COFDM wireless system is suitable for high-speed mobile wireless transmission in NLOS &LOS operation without servo stability control assistance, such as on UAV to the mobile vehicle, UAV to ground station, UAV to vessel…

Specification:

Model	KP-HD153P
Voltage	DC12V
Current	960mA
Audio input	AV
Video input	HD & SDI & CVBS
CVBS interface	For SD analog video signal input
HD interface	For HD digital video signal input, support HD 1080P, 720P, 576, 480
SDI interface	For SDI digital video signal input, support HD 1080P, 720P, 576, 480, built-in with audio de-embedding
Bandwidth	2/2.5/4/8MHz
Frequency	300MHz-4400MHz (subdivided), stepped in 1MHz; other Frequency can be customized
Modulation	COFDM 2K
RF power	20dBm-32dBm (adjustable), stepped in 1dBm
Encryption	AES user-defined password
FEC	1/2, 2/3, 3/4, 7/8
Guard interval	1/32, 1/16, 1/8, 1/4
Video coding	H.264
Parameter setting	User manually set through the LCD display
Antenna port	SMA(50Ω)

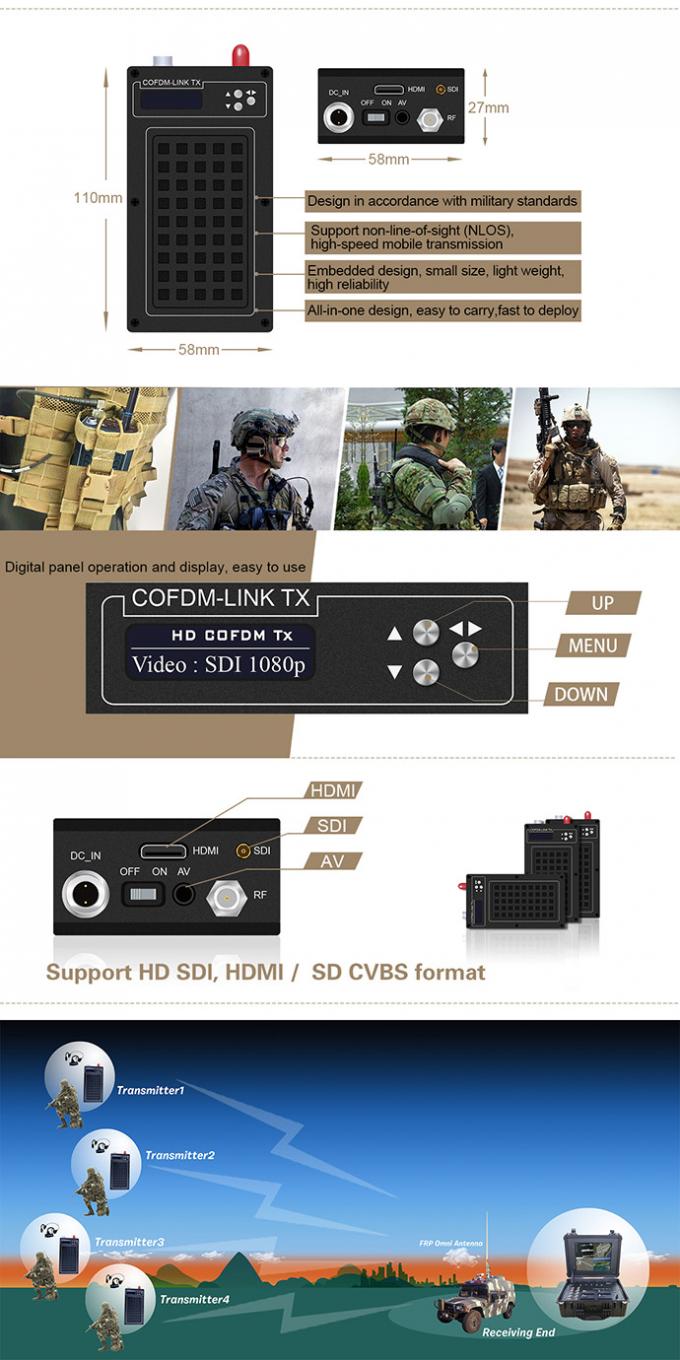

Dimension	110*58*27mm
Weight	300g

HD COFDM Transmitter Application:

• Aerial Surveillance
• Marine Surveillance
• Mobile Monitoring Station
• Central Monitoring Station
• Portacam on Tripod/ Patrol Car
• SpyVest
• Robot
