Detailed Product Description
| Working Voltage: | DC 12V | Working Current: | 960mA |
| Working Bandwidth: | 2/2.5/4/8MHz | Output Frequency: | 300~4.4G Optional, Gap 1MHz (Other Frequency Can Be Customized) |
| Latency: | 150ms | Video Coding: | H.264 |

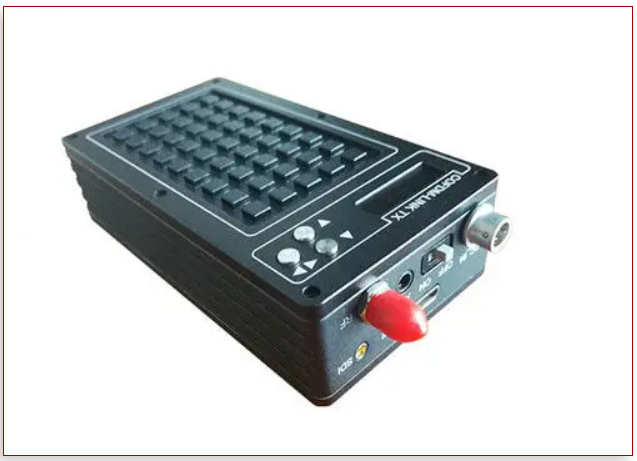

Ultra – low Latency COFDM Wireless Transmitter, Portable HD UAV Video Sender 10km Range
Low Delay COFDM Video Transmitter Description:
KP-HD153W ultra-low latency H.264 COFDM HD portable wireless video transmitter, adopted the 4th generation multi-carrier modulation technology and highly efficient/innovative H.264 compression coding. Greatly improve coding efficiency, decrease coding delay, optimize the algorithm, anti-bit error rate, and improve image quality, which uses the lowest bit rate to achieve the best image compression.
Feature:
• Support HD SDI, HD / SD CVBS format
• Embedded design, small size, light weight, high reliability
• Design in accordance with military standards
• All-in-one design, easy to carry, fast to deploy
• Support non-line-of-sight (NLOS), high-speed mobile transmission
• Digital panel operation and display, easy to use
Transmitter technical parameters:
| Working voltage | DC12V |
| Working current | 960mA |
| Video input interface | CVBS external to SD analog video signal |
| HD interface | External to HD digital video signal, support HD 1080p/720p/576/480 |
| SDI (Optional) | External to SDI digital video signal, support HD1080p/720p/576/480 with audio |
| Working bandwidth | 2/2.5/4/8MHz |
| Output Frequency | 300~4.4G optional, gap 1MHz (Other frequency can be customized) |
| Output power | 20dBm~32dBm adjustable, gap 1dBm |
| Encryption | AES or user defined |
| Modulation | COFDM, 2K |
| Latency | 150ms |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Video coding | H.264 |
| Parameter control mode | Set relevant parameters by LCD FM display panel |
| Audio input interface | AV |
| Antenna interface | SMA (50Ω) |
-
