Light Weight SD Cofdm Video Transmitter Wireless 3-5w Adjustable Mini Size
Detailed Product Description
Frequency: 300MHz-4.4GHz
Power: 3-5W Adjustable
Video Compression: H.264/MPEG-4/MPEG-2
Carrier: 2K, 8K
Case Material: Aluminum Alloy

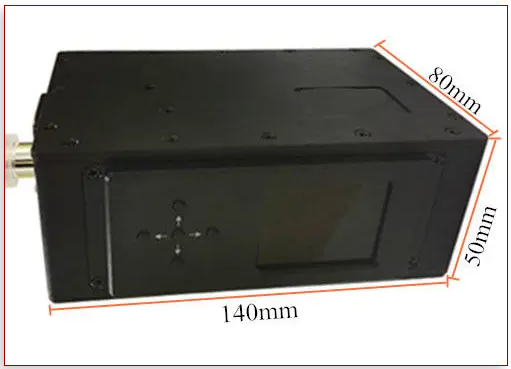

Size: 1409056mm

Description:
The transmitter is a digital multi-carrier wireless image transmitter with COFDM modulation technology. It is a multimedia transmission system designed and developed specifically for the mobile environment.
It can realize video and voice signals synchronous transmission even under high-speed motion and block the LOS environment. In addition, it increased a coulombmeter for showing real-time power, rf power/frequency adjustable, work status, and other functions, making the system more intuitive, scientific, and humane.
This system has the advantages of high sensitivity, strong anti-interference ability and penetrating ability, high transmission rate, and strong stability. It provides an ideal solution for the construction of emergency communication systems such as command, rescue, reconnaissance, and field combat.
As it’s lightweight and long-range distance makes it widely used in public security, armed police, fire, field troops, and other military departments and transport, customs, oil, mining, water, electricity, finance, and other important national departments.

Features:
Lightweight and small in size
DVD quality, very sharp image;
COFDM modulation, anti-jamming, and stability
More intuitive and natural with a coulometer
Support high-speed motion transmission
Be safe with AES128/256bits encryption
Military-grade level, special for man-pack video audio signal transmission
Suitable for manpack, vehicle, UAV, and ect..long range video surveillance.
Low delay time

Specifications:
Frequency 300MHz-800MHz,12.GHz/2.4GHz/4.4GHz
RF output power 3-5Watt (adjustable)
Power supply DC12V/1.5A
Modulation COFDM
Constellation QPSK,16QAM,64QAM
Bandwidth 2/2.5/4/8MHz(adjustable)
DEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
AV interface BNC / Aviation plug
Audio Input stereo left and right channels
Video Compression H.264/MPEG-4/MPEG-2
Data encryption AES128bits
Carrier 2K,8K
Video Signal [email protected]Ω,NTSC/PAL adaptive
Resolution 1280720P,720P RF Interface N(F) Video Format PAL/NTSC(self-adaption) Case Material Aluminum alloy Built-in battery 2300mA, 3Hrs working time / can also not be with battery Work environment -30~70℃ Size 14090*56mm
Weight 888 grams

Product application:
