2~8 Watt Adjustable COFDM Transmitter, 1080p wireless transmitter HD – SDI Output
Detailed Product Description
Frequency: 300-800MHz (optional), 1.0-1.4G/2.3-2.5G/4-4.4GHz(customized)
RF Power: 2-8W
Power Supply: [email protected]
RF Bandwidth: 4/8MHz(adjustable)
Encryption: AES128/256bits
Carrier: 2K,8K
2~8 Watt Adjustable COFDM Transmitter , 1080p wireless transmitter HD – SDI Output
KP-HDB50 Such a new 1080P HD transmitter is our powerful HD av signals transmit system, using the core of mobile communication technology COFDM, which can transmit good quality and stable full-hd digital video signal under the condition of high-speed mobile and heavy building blocks transmission in city environment.2-8W rf power output adjustable. Support full HD 1080P(1080i) H.264 encoding format and HD/HD-SDI inputs (single selection) as well support BNC stereo balanced audio input. The base of the transmitter with 4 holes is good for fixed installation

Main Features:
COFDM modulation technology ensures the stability of signal
Support FULL HD quality,1080i/[email protected];
Built-in with HDM or HD-SDI and BNC composite ports;
SDI HD video, embedded audio, and composite video input
It will be HD1080i transmission when the RF bandwidth is 4/8MHz.
2-8W RF power-adjustable
Low delay time
With 4 holes at the bottom for fixed installation
Widely used in helicopter shooting, Live broadcasts and etc…

Special Features:
2-8W RF power output
Low delay time
COFDM modulation, stability of signal
Support Full Hd quality, 1080i/[email protected];
Built-in with HDM/HD-SDI and BNC composite ports;
With 4 holes at the bottom for fixed installation
Widely used in UAV shooting, Live broadcast and etc…

Specifications:
Power supply
DC Input DC11-16V
Working Current [email protected]
Video transmission:Frequency range Output 300-800MHz (optional),1.0-1.4G/2.3-2.5G/4-4.4GHz(customized)
Modulation COFDM,2K ,QPSK
RF bandwidth 4/8MHz(adjustable)
RF Power output 2-8W (adjustable)
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK, 16QAM, 64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K,8K
Flatness Full band≤2dB, 8MHz≤0.5dB
AV input BNC: D1 standard definition HD: HD1080i/1080P, 720P, 576, 480 HD-SDI: HD1080i/1080P, 720P, 576, 480
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Audio transmission
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
Audio channel Stereo L/R audio channel
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Encoding
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Minimum 1280[email protected] 1920×1080P/[email protected] Video coding H.264 Video-rate 500kbps-16.68Mbps(auto adaptation) Max speed rate 450km/h Format YCbCr4:2:2 Working Environment OperatingTemperature -25°C~55°C Storage Temperature -40°C~70°C Appearance Dimension 190120*60mm
Weight 1400g

HD Video Transmitter application:

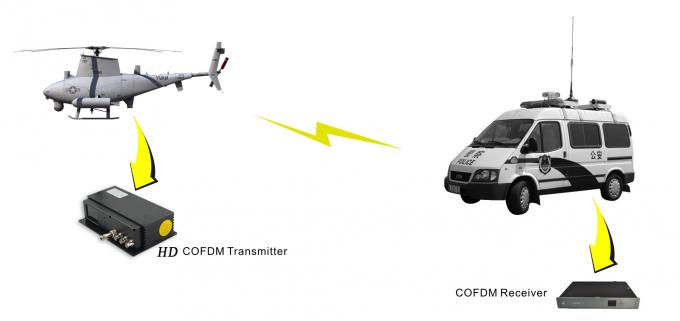

1) For helicopter shooting:

COFDM Transmitter HD SDI Output
COFDM Transmitter HD SDI Output

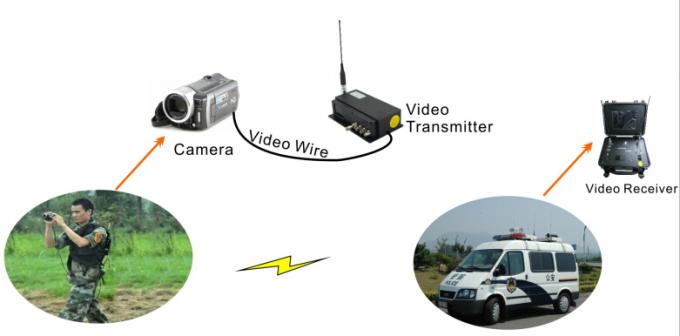

2) For Man pack :
