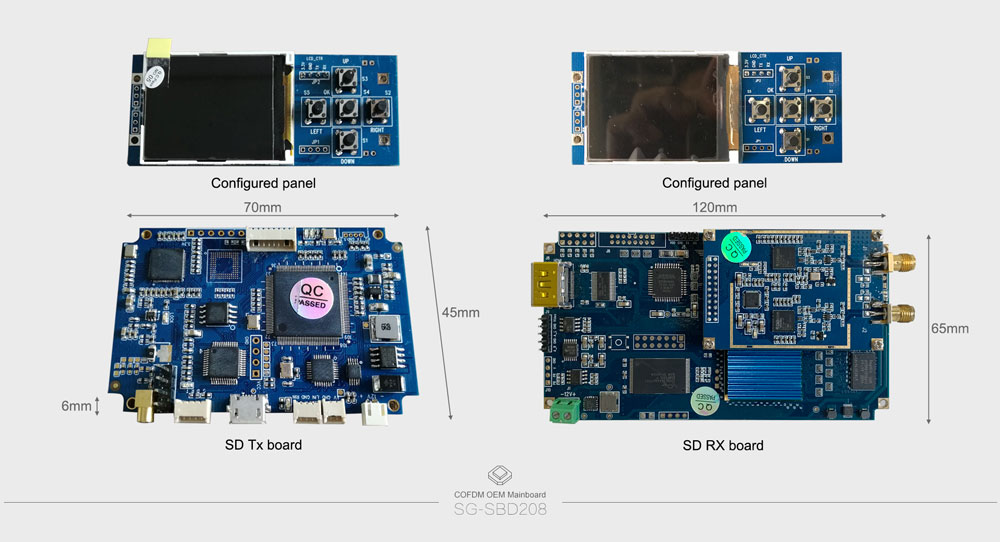

COFDM 720P OEM MAIN BOARD
I. Transmitting Main Board
COFDM wireless video transmission OEM main board, adopts composite NTSC＼PAL video pre-processing technology and efficient video coding algorithm to improve coding efficiency and reduce coding delay. Algorithm optimization, anti-bit error rate and further improvement of image quality have been carried out and effectively improved. It can achieve the best image compression at the lowest bit rate.
1. Integrated design of high integration (coding, modulation and frequency conversion)
2. 2/2.5/4/8MHz bandwidth adjustable;
3. Full frequency output, frequency 300-900MHz optional stepping 1MHz;Size: 70mm(Length) 45mm(Width)
|Audio Channel||2 Channel|
|TX Frequency||300-4400MHz optional|
|Output Power||0dbm Adjustable|
|Decryption||128-bit dynamic AES|
|FEC||1/2 2/3 3/4 5/6 7/8|
|Guard Interval||1/32 1/16 1/8 1/4|
|Parameters Control Method||Through the LCD control panel can set up parameters|
II. Receiving Board
1.Support HD1080P 720P 576P
2.H.264 / MPE2 full-featured image decoding supporting COFDM mode
3.Support military grade non-standard 128-bit AES decryption
4.Digital panel operation and display.
5.Support dual antenna multi-carrier diversity reception
|Video Output||CVBS/ HDMI|
|Work Bandwith||2M 2.5M 4M 8M|
|RX Frequency||300-4400MHz optional|
|RF Interface||SMA. Dual Channel Diversity Reception|
|Parameters control method||Through the LCD control panel can set up parameters|
