Detailed Product Description
| Voltage: | DC11-14V | Video Input: | HD & SDI & CVBS |
| Bandwidth: | 2/2.5/4/8MHz | Frequency: | 300MHz-4400MHz (subdivided) |
| Modulation: | COFDM 2K | RF Power: | 5-10W |

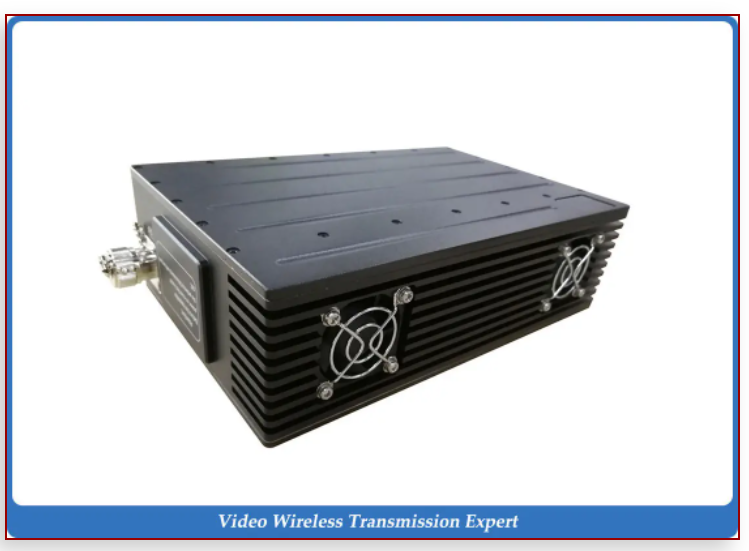

NLOS Wireless COFDM Video Transmitter, HD Digital AV Transmitter with Encryption
COFDM Wireless Video Transmitter Description:
With 4th generation COFDM, narrow-band, and H.264 encoder technology as its code, It sends high-definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments. The compact design and low consumption make this HD transmitter enable true long-range HD video transmission.
Features:
- COFDM modulation for stable audio video transmission

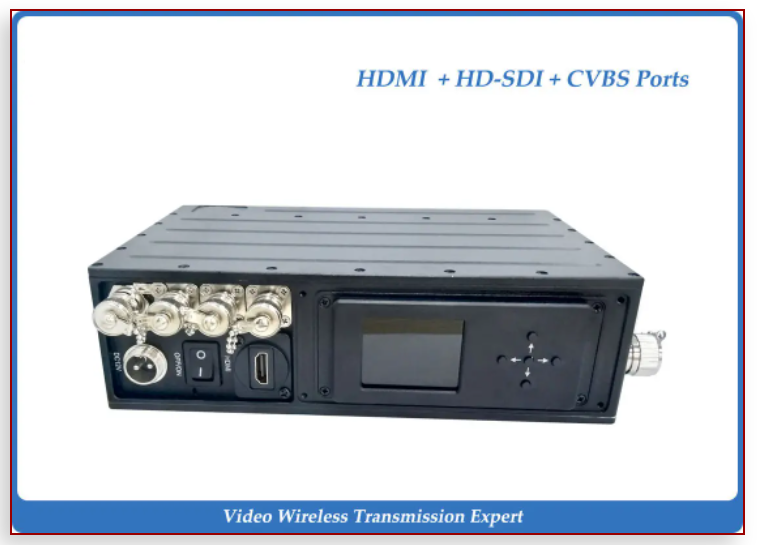

- Supporting 3 video input formats (interfaces): HD+SDI+CVBS/BNC
- Strong safety with AES user-defined passwords
- Compact design, low consumption, and ultra low latency
- Supporting NLOS (nonline of sight) and fast moving environments but stable signals transmission
- Easy operation by digital panel configuration, and LCD display
- Military & industrial grade
COFDM Modulation Advantages:
- LOS & NLOS (non line of sight) operation in fixed or high-speed mobile deployment
- Strong anti-interference
- Strong anti-multipath fading
Specification:
| Voltage | DC11-14V |
| Current | 2.3A |
| Audio input | AV |
| Video input | HD & SDI & CVBS/BNC |
| CVBS interface | For SD analog video signal input |
| HD interface | For HD digital video signal input, support HD 1080P, 720P, 576, 480 |
| SDI interface | For SDI digital video signal input, support HD 1080P, 720P, 576, 480 |
| Bandwidth | 2/2.5/4/8MHz |
| Frequency | 300MHz-4400MHz (subdivided), stepped in 1MHz; other Frequency can be customized |
| Modulation | COFDM 2K |
| RF power | 5-10W |
| Encryption | AES user-defined password |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Video coding | H.264 |
| Latency | 150ms |
| Parameter setting | User manually setting through LCD display panel |
| Antenna port | N |
| Dimension | 230*150*66mm |
| Weight | 2.88kg |
| Distance | 3-6km LOS, 1-3km NLOS on the ground; 200KM from UAV to ground |
