| Output Power: | 20dBm/100mw | Modulation: | Cofdm |
|---|---|---|---|
| RF Interface: | MMCX | Modulation Mode: | QAM4,QAM16,QAM64 |
| Bandwidth: | 4MHZ/8MHz | Weight: | 58g |
| High Light: | video transmitter device, wireless analog video transmitter |
Product description:

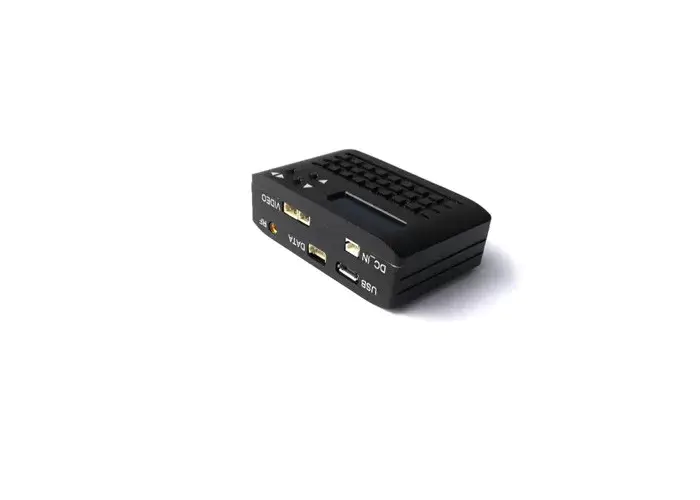

Micro COFDM Transmitter: This product is our company’s latest micro wireless video transmission equipment,using advanced video pre-processing technologies and efficient video coding algorithms, the device have refined on the improve of coding efficiency,reduced coding delay,algorithm optimization,anti-error rate and improve the quality of video, it can be used the lowest rate to achieve the best image compression.
Product features:
● low latency, low power consumption
●Support NLOS( Non Line of Sight) , High-speed movement transmission
● Highly integrated modular design
● Small size,Light weight,Easy to carry,using air-cooling fin aluminum shell
● Digital panel display, simple interface, easy to operation
Technical parameters:
| Voltage | DC12V |
| Power consumption | 5W |
| Video input | CVBS |
| output frequency | 300MHz/2500MHz (other frequency on request) |
| Bandwidth | 4MHZ/8MHz |
| output power | 20dBm/100mw |
| Modulation | COFDM |
| Modulation mode | QAM4,QAM16,QAM64 |
| RF interface | MMCX |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Carries | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Video processing method | MPEG-2 |
| Parameter control mode | Through the control panel to set the relevant parameters(or external serial port) |
| Operating temperature | -20℃～75℃ |
| Dimensions | 60m*36mm*19mm |
| weight | 58g |
-
