Detailed Product Description
| Voltage/current: | DC12V/3A | Modulation: | COFDM 2K QPSK |
| Transfer Rate: | Up To 12Mbps Automatically Allocation | AV Interface: | BNC |
| Distance: | 3-5km NLOS In City For Manpack 100km LOS For Sky To Ground | Weight: | 1.5kg(net Weight) |

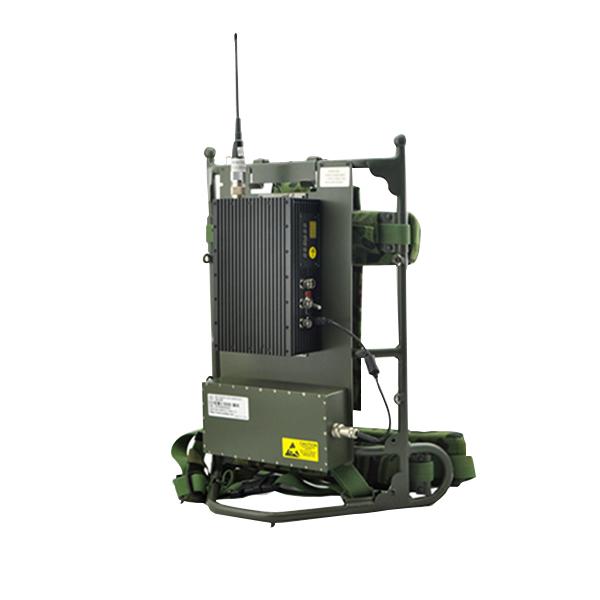

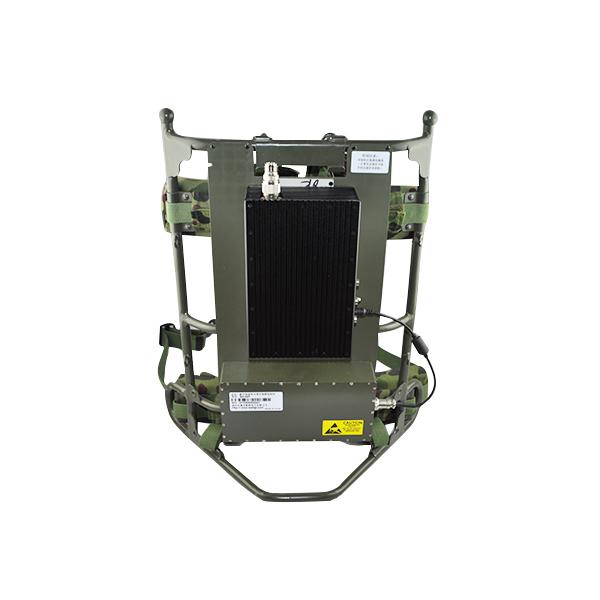

Military Man-pack COFDM Wireless Transmitter H.264 Digital Mobile Video Sender
Description:

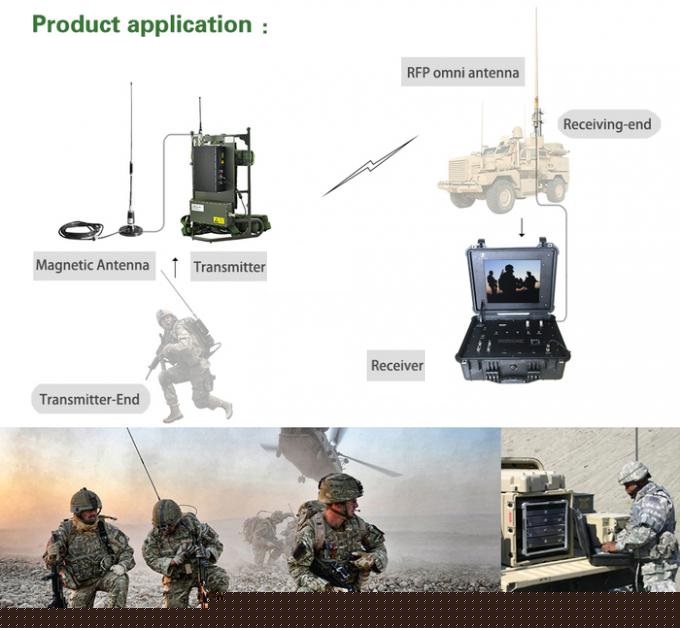

At the front-end personnel, scouts, firefighters, rescue personnel, or television interview personnel using a small size, backpack or Buckle format transmitters transmit the live signals to the rear command vehicle. Then the command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command
Feature:
- 5-8Watt RF output configured by the user
- COFDM modulation, H.264 video compression.
- Low delay time
- 2/2.5MHz rf bandwidth for further distance project in 720P resolution
- The Alloy aluminum material of the outer case is good for better heat dissipation and anti-interface
- AES128bits encryption ensures the safety of video.
- Users easy to operate/configure the parameters via the buttons
Specification:
| Frequency | 300-4400MHz(option) |
| RF Output Power | 5-8Watt(adjustable) |
| Voltage/current | DC12V/3A |
| Modulation | COFDM 2K QPSK |
| Constellation | QPSK,16QAM,64QAM |
| Bandwidth | 2/2.5/4/8MHz |
| Transfer rate | up to 12Mbps automatically allocation |
| FEC | 1/2, 2/3, 3/4, 5/6,7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Audio Input | stereo left and right channels |
| AV Interface | BNC |
| Video Compression | H.264 |
| Data encryption | AES128/256bits |
| Flatness | Full band≤2dB,8MHz≤0.5dB; |
| Carrier | 2K,8K |
| Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive |
| Video format | PAL/NTSC(self-adaption) |
| Resolution | 1280*720,720P |
| RF Interface | N(F) |
| Case Material | Aluminum alloy, rainproof |
| Work environment | -30~70°C |
| Distance | 3-5km NLOS in the city for manpack100km LOS for the sky to ground |
| Size | 200*130*60mm |
| Weight | 1.5kg(net weight) |
-
