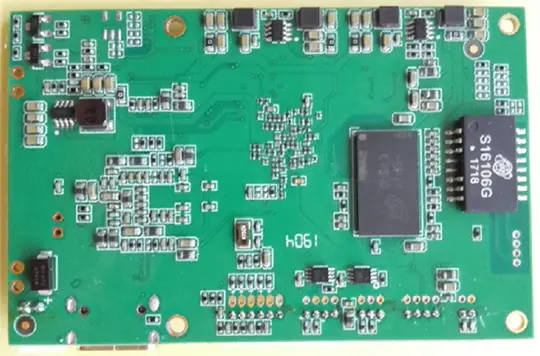

SUE5 Video Encoder Module

— Low latency H.265/H.264 video encoder module, full HD resolution, maximum 1080P60 encoding
— Audio codec with audio input and output
— Mini HDMI/AV video input, Ethernet RTSP/TS stream output, TCP/UDP protocol
— Web UI or uart for management
— Optional: HDMI+AV input and encoding at the same time
— Optional: 4K video input and 4K encoder, maximum resolution 3840*2160@30fps
— When paired with the SHD5 decoder module, the H.265 video latency is about 200ms to 250ms
— When paired with the SHD4 decoder module and in the lowest H.264 mode, the video latency is about 50ms to 130ms

SUE5 video encoder module implements H.265/H.264 video encoding and audio codec, the stream will output via Ethernet after encoding. One channel uart data can also be packed with the stream and output to the Ethernet. The video encoding bitrates are controlled via control uart or web UI. The module is compact in size and suitable for embedded applications and real-time live video monitoring via wireless link or Ethernet.

Specification:

IO

HD Video input	Mini HDMI, HDMI type “B” Connector
Analog Video/audio input	6PIN PH1.25mm Connector
Data uart	3PIN PH1.25mm Connector, TTL 3.3V
Control uart	4PIN PH1.25mm Connector, TTL 3.3V
Power in	2PIN PH2.0mm Connector
USB Host	4PIN PH1.25mm Connector, for software upgrading
Speaker	2PIN PH1.25mm Connector
Ethernet	4PIN PH1.25mm Connector
FPC_main	For connecting with radio module

Video and Audio

Video input	HDMI or CVBS, auto-detected after system start-up Optional: HDMI+AV, encoding at the same time
Video formats	1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL) Optional: 4K, maximum 3840*2160@30fps
Video Coding	H.265/H.264, setup via control uart or Web UI; Bitrates adjustable; Supports proprietary H.264 video compression only using p-frames for the lowest latency(the encoding and decoding latency is about 50ms to 130ms when working with the SHD4 decoder module).
Audio input	Embedded HDMI or analog audio
Audio Coding	AAC, 16bit, stereo, 32Kbps
Encryption	AES256
Ethernet stream protocol	UDP TS stream, RTSP stream, UDP TS stream + RTSP stream

Monitoring and control
Setup via Web UI or control uart.

Temperature range
Full specification: 0° to +70°C Ambient(Optional: -40° to +85°C)
Storage: –40° to +85°C

Power requirements
Input range: 7~24VDC
Power consumption: <200mA@12V

Physical Characteristics
Dimensions: 70×45(not including connectors out of the board)
Weight:15.5g
