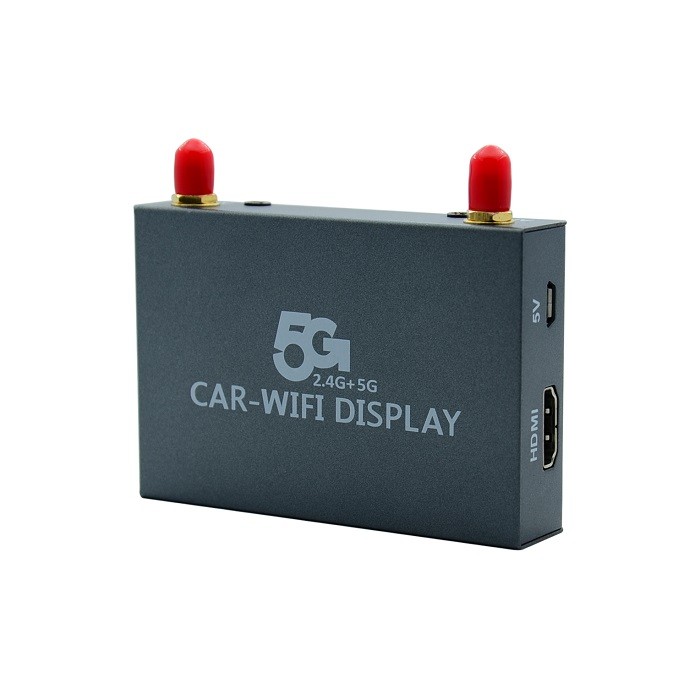

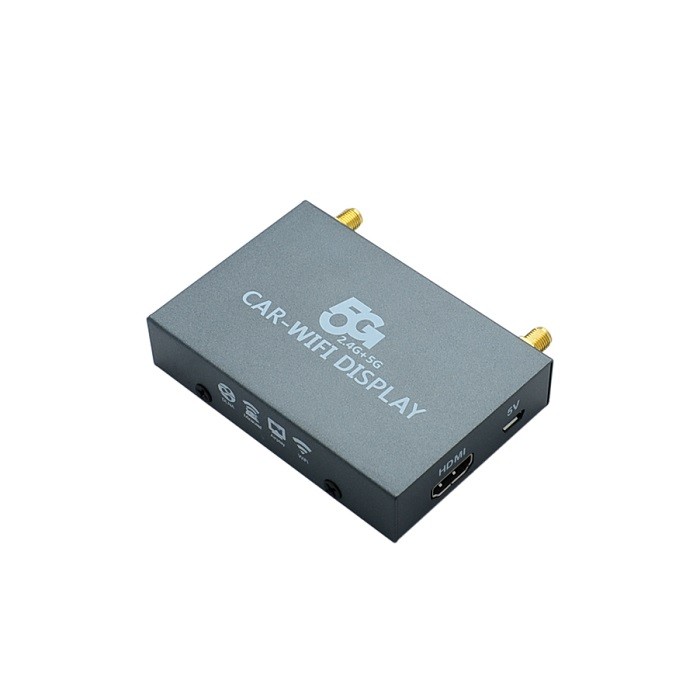

VCAN1244 Universal 5.8G & 2.4G WIFI Wireless MirrorLink BOX

VCAN1244

Universal 5.8G & 2.4G WIFI Wireless MirrorLink BOX w/o Interference

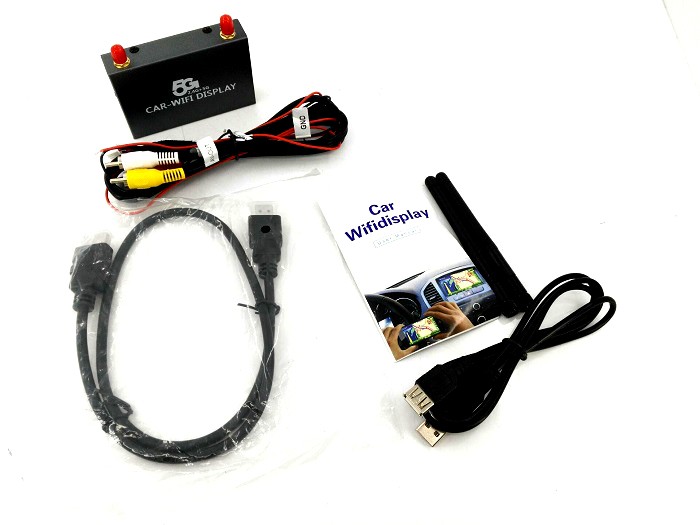

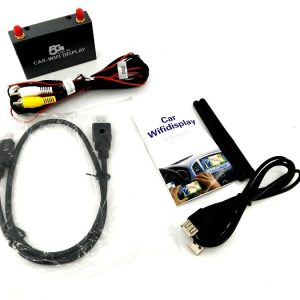

Connector

①　external antenna

②　Red, yellow, and white standard AV interface

③　12V power supply (red positive, negative black)

④　HDMI cable

⑤　USB power cable

Installation Method

Schematic diagram：

• Switching the corresponding signal input on the car display；
• Use the picture  device above connected to the AV port on the car display；
• 12V power input device on the image above (positive red, black negative) to the rear of the car’s 12V power supply， Or direct access to the USB cable into the back behind the car’s USB port for the 5V power supply
• After the installation is successful, the following figure appears on the monitor screen.
• ►Mirror（IOS）IOS connection (Airplay Mirroring)，take iPhone5 IOS8 for example, look at the figure。First, open the phone wifi settings – connected device wireless signal; call up the Control Center to find and select the device checked Airplay mirroring, then mirroring successfully!
• IOS Model description (mirror synchronization)iPhone：4s55c5s66 Plus…iPad：234airmini12…MAC: Apple’s official website to check to prevail

  iTouch5



  ►Miracast（For Android）

  Take the native Android system (Native Android 4.2 system) for example; open the phone “Settings” – “Display” – “Wireless Display”, and look at the following picture.

• • The above is a native Android system connection method， At present, the mobile phone manufacturer’s name MIRACAST is different, and the function locations are also different. For example, the Samsung models are called Allshare cast, The screen image, Screen mirroring, and some are named WLAN display;
  • After connecting to the screen, there is not any conflict between wifi Internet and mobile Internet.





  ►Connect the router

  By connecting the device to the router, the IOS mirror can be connected to the same network mirror screen to cast



  The first method

  1、 First let the phone’s wifi connect with devices, and then open the web browser and enter the IP address in the address bar: 192.168.59.254, the phone screen appears in the following figure after the connection is successful, the phone will enter the second picture above.

  2、Open the WIFI Connection item, and the system will automatically scan the current environment, the wireless router diagram, select the corresponding wireless router enter the password, click submit button, and then point OK, the interface will automatically exit. Wait about 5 seconds before the device can be connected to the router (the AP name will be displayed on the connected TV).

FAQ

Q: Can I insert a sim card into this device and use it as a car wifi to solve the problem of mobile phone Internet access?

A: No, This is not to solve Internet access problems. This is to share the phone screen to the car’s normal display via WIFI.
