When customers search for NLOS wireless video transmission, one of the most common requirements we hear is:
“We need wireless Full HD video, non-line-of-sight, distance 1–5 km.”
This request is very common in applications such as UAV video downlinks, robotics, public safety, military, and industrial monitoring. However, unlike line-of-sight (LOS) transmission, NLOS wireless video performance cannot be defined by distance alone.
To accurately evaluate feasibility and recommend the right solution, the following key information is essential.
1. Transmission Scenario: Air-to-Ground or Ground-to-Ground
The first question for any NLOS wireless video system is the physical deployment.
Table of Contents
Air-to-Ground Wireless Video Transmission
Typical applications:
- Drone / UAV video downlink
- Aerial surveillance
- Emergency response
Characteristics:
- Fewer obstacles
- Partial line-of-sight often exists at altitude
- Longer transmission distance is usually achievable
Ground-to-Ground Wireless Video Transmission
Typical applications:
- Vehicle-to-vehicle
- Robot to control center
- Fixed installations
Characteristics:
- More obstructions at the same height
- Stronger signal attenuation and multipath effects
- NLOS distance is usually more limited
Even with the same equipment, these two scenarios can produce very different results.
2. What Does “NLOS” Mean in the Real Environment?
“NLOS” (Non-Line-of-Sight) is a general term. In practice, the type of obstruction matters more than the label.
Important questions include:
- What blocks the signal?
- Concrete or brick walls?
- Multiple buildings?
- Trees or dense vegetation?
- Terrain such as hills or slopes?
- Is the environment:
- Outdoor?
- Indoor?
- Indoor-to-outdoor?
- Inside a vehicle or closed room?
For example:
- Penetrating one wall is completely different from penetrating multiple reinforced concrete buildings.
- Transmitting from inside a closed room has much higher signal loss than outdoor NLOS transmission.
This is why NLOS wireless transmission distance varies greatly between projects.
3. Video Resolution, Bitrate, and Latency Requirements
Another critical factor is the video performance requirement:
- Full HD (1080p) vs. lower resolution
- Ultra-low latency vs. standard latency
- Real-time control vs. monitoring only
Higher resolution and lower latency require more bandwidth, which directly impacts achievable NLOS range.
In many cases, optimizing bitrate and latency settings can significantly improve system stability.
4. Why “1–5 km NLOS” Is Not a Fixed Specification
Many customers search for:
- “1 km NLOS wireless video”
- “5 km NLOS video transmitter”
- “long range non line of sight wireless video”
In real-world deployments:
- 1 km NLOS can already be challenging in dense urban or indoor environments
- Multi-kilometer NLOS transmission usually requires:
- Lower operating frequencies
- Higher RF output power
- Proper antenna selection and placement
- Favorable terrain conditions
This is why distance alone is not a reliable specification without context.
5. Why We Ask for Detailed Application Information
Wireless signal penetration and diffraction depend on:
- Frequency band
- Modulation and coding
- Transmission power
- Antenna height and gain
- Environmental conditions
Without understanding the actual usage scenario, any range estimate would be theoretical and potentially misleading.
Providing detailed information allows us to:
- Select the most suitable frequency band
- Design a realistic and stable system
- Avoid overpromising and underperforming
- Improve project success rate
Conclusion: The Environment Defines NLOS Performance
When planning an NLOS wireless Full HD video transmission system, the most important factor is not just distance—but where and how the system is used.
If you are evaluating an NLOS wireless video solution, please be prepared to describe:
- Deployment scenario (air-to-ground or ground-to-ground)
- Obstacle types and environment
- Video quality and latency requirements
- Target distance under real conditions
With this information, a reliable and practical solution can be designed.
LOS vs NLOS Wireless Video Transmission: Key Differences, Challenges, and Real-World Performance
When selecting a wireless video transmission system, one of the most important concepts to understand is the difference between LOS (Line-of-Sight) and NLOS (Non-Line-of-Sight) transmission.
Many customers use these terms interchangeably, but in real-world wireless systems—especially for Full HD or low-latency video—the performance difference between LOS and NLOS can be significant.
This article explains what LOS and NLOS mean, how they affect wireless video performance, and why NLOS transmission requires more careful system design.
LOS test Video
NLOS test Video

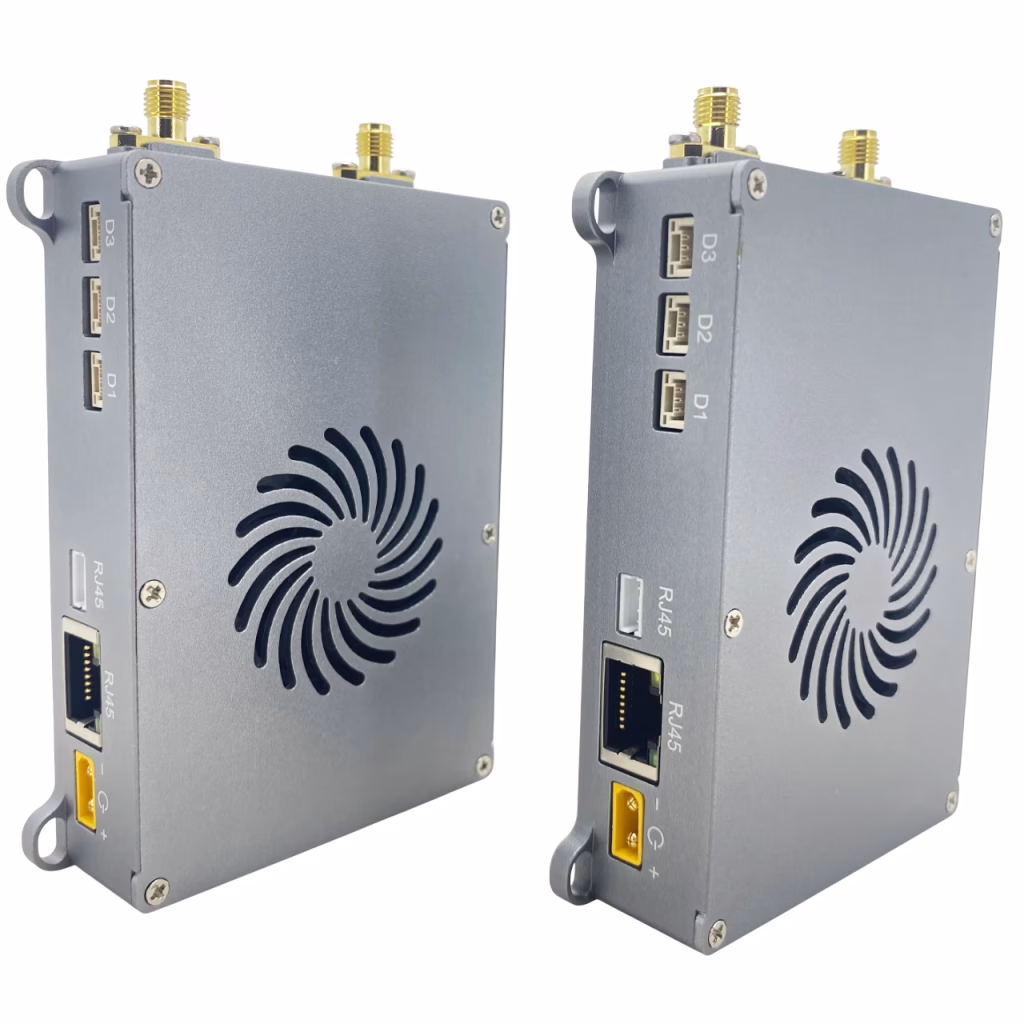

The product in the test video is here. TX900
1. What Is LOS (Line-of-Sight) Wireless Transmission?
LOS (Line-of-Sight) means there is a clear, unobstructed path between the transmitter and the receiver.
Typical LOS Scenarios
- Drone or UAV transmitting video to a ground station
- Point-to-point wireless links with elevated antennas
- Open fields, rural areas, or sea environments
Characteristics of LOS Transmission
- Minimal signal attenuation
- Stable link quality
- Longer achievable distance
- Higher data rates possible
- Lower latency and packet loss
In LOS conditions, wireless video systems can often achieve their maximum specified range.
2. What Is NLOS (Non-Line-of-Sight) Wireless Transmission?
NLOS (Non-Line-of-Sight) means the direct path between transmitter and receiver is blocked by obstacles.
Common NLOS Scenarios
- Urban environments with buildings
- Indoor transmission between rooms or floors
- Ground-level transmission with vehicles or terrain blocking the path
- Indoor-to-outdoor or vehicle-to-control-room links
Characteristics of NLOS Transmission
- Signal attenuation due to obstruction
- Reflection, diffraction, and multipath interference
- Reduced effective range
- Higher sensitivity to environment changes
Unlike LOS, NLOS transmission performance varies greatly depending on the surroundings.
3. LOS vs NLOS: Key Technical Differences
| Aspect | LOS | NLOS |
|---|---|---|
| Signal Path | Direct, unobstructed | Blocked or indirect |
| Transmission Distance | Longer | Shorter (environment-dependent) |
| Link Stability | High | Variable |
| Video Bitrate | Higher | Often limited |
| Latency | Lower | May increase |
| Predictability | High | Low |
This is why LOS distance specifications cannot be directly applied to NLOS scenarios.
4. Why NLOS Wireless Video Is More Challenging
In NLOS conditions, wireless signals rely on:
- Diffraction (bending around obstacles)
- Reflection (from walls, ground, buildings)
- Scattering (from trees, rough surfaces)
Each obstacle introduces signal loss. For example:
- One concrete wall may cause moderate attenuation
- Multiple reinforced concrete buildings can cause severe signal loss
- Indoor NLOS typically performs worse than outdoor NLOS
As a result, two NLOS applications with the same distance may have completely different outcomes.
5. Frequency Matters More in NLOS Transmission
Frequency selection plays a critical role:
- Lower frequencies
- Better penetration and diffraction
- Longer NLOS range
- Lower available bandwidth
- Higher frequencies
- Higher data rates
- Poor penetration
- Shorter NLOS range
This trade-off is why NLOS wireless video systems often operate at lower frequency bands, especially for ground-to-ground applications.
6. Typical Applications: LOS vs NLOS
LOS-Dominant Applications
- UAV video downlink
- Long-range surveillance
- Temporary event broadcasting
NLOS-Dominant Applications
- Robotics and UGVs
- Public safety and emergency response
- Tactical or military operations
- Industrial inspection and monitoring
Each application requires a different balance between range, latency, video quality, and robustness.
7. Why NLOS Distance Cannot Be Guaranteed
Customers often ask:
- “Can you guarantee 5 km NLOS?”
- “What is the maximum NLOS distance?”
In practice, NLOS distance cannot be guaranteed without knowing the environment.
Factors that directly affect NLOS performance include:
- Obstacle type and density
- Antenna height and placement
- Transmit power and frequency
- Video bitrate and latency settings
This is why professional wireless system design always starts with scenario analysis, not distance alone.
Conclusion: LOS Is Predictable, NLOS Is Scenario-Driven
In wireless video transmission:
- LOS performance is predictable and repeatable
- NLOS performance is highly scenario-dependent
Understanding the difference between LOS and NLOS helps set realistic expectations and leads to better system design decisions.
If your application involves non-line-of-sight wireless video, providing detailed environmental information is essential for selecting a reliable solution.
