7KM wireless Video Data RC Transmission System long range low latency HDMI SDI 15km OFDM Vcan1643
7KM wireless Video Data RC Transmission System
7KM wireless Video Data RC Transmission System Long range 15km optional OFDM
Table of Contents
Overview
This model designed for the drone, It is a kind of wireless FHD video and data transmission system. It has the advantages of small size，low power consumption and long-distance. The system can transmit FHD video, flight control data, gimbal control data, and RC control data simultaneously. With the H.265 video CODEC and OFDM modulation technology, it can achieve low latency, high-resolution video transmission.
With advanced radio frequency technology, it can support three frequency bands. Users can change frequency bands easily. Users can choose a suitable frequency band according to local regulations. Also, you can choose frequency hopping or fixed mode under special conditions.
The air unit can be configured to Point-to-Point mode or Repeater mode. Users only need one more air unit and a simple configuration to achieve long-distance transmission. Please watch the instruction video for more information.
It has an encryption function. Users can Enable/Disable this function when needed. It is easy to set an encryption code using Maestro Assistant or Web UI.
The device has 2 UART—UART1 and UART2. Two protocols, Mavlink and Transparent, are supported. Users can use it for flight control data and gimbal control data transmission. Also, the system can improve the RC control distance via the SBUS port. On the ground unit, there is a USB 3.0 port. Users can add a USB storage device to save the FHD video.It supports a variety of video input and output interfaces, such as HDMI, Ethernet, SDI, CVBS. It can also match most gimbal on the market.
This is a highly integrated data transmission system that has RC, datalink, and videolink built inside. It has two versions: the 7km version and the 15km version. The frequency and power of the 7 km wireless data RC transmission system can be set through software according to your needs. It supports 3 frequency range: 800Mhz (806~825); 1.4G(1430~1444); 2.4G(2408~2480). This Video Data RC transmission system supports HDMI input, and HDMI/Ethernet port output, the video resolution is 1080p @60/50/30.
Feature
- Lightweight
- Low power consumption
- Long-distance
- Low latency
- Which is suitable for UAV and other data/video/radio transmission applications
Specification
- Transmitter Video-Input: HDMI / CVBS / SDI
- Receiver Video Output: HDMI/ Ethernet port
- Transmitter Data Input: UART/SBUS/CAN
- Receiver Data Output: UART/SBUS
Parameter
| Frequency | 800MHz(806~825);1.4GHz(1430~1444);2.4GHz(2408~2480) |
|---|---|
| Channel bandwidth | 5MHz / 10MHz / 20MHz (when working in a single frequency band 5MHz bandwidth, support 4 sets of 100 meters apart and work simultaneously *1 |
| Modulation | OFDM |
| Transmitter Power | 25dBm±1dB |
| Sensitivity | ≤-89dBm |
| Transmission Distance*2 | 7km 15km |
| Airspeed | 30Mbps@20MHz*3 |
Power supply range
| Transmitter | DC 9~28V |
|---|---|
| Receiver | DC 9~28V |
Power consumption
| Transmitter | 6.5W |
|---|---|
| Receiver | 5W |
Interface
| Antenna Input | 2（MMCX） |
|---|---|
| Power Input | 1 |
| Serial port | TTL 3.3V level, 1 start bit, 8 data bits, 1 stop bit, no parity check Baud rate 115200 (default), configurable to 57600, 38400, 19200, 9600 |
| HDMI (Type A) | 1 |
| S.BUS | 1 |
| CAN | 1（Transmitter） |
| Ethernet Port | 1（Receiver） |
| USB (Type A) | 1（Receiver） |
| USB（Mini） | 1（Transmitter）support OTG |
Video performance
| Resolution | Up to 1080p60 backward compatible |
|---|---|
| Codec mode | H.265/H.264 |
| Video bit rate | 2~12Mbps adjustable |
| End-to-end video latency | 250 millisecond |
| Data delay | 50 millisecond |
Transmitter Antenna
| Antenna Interface | SMA (With transfer feeder) |
|---|---|
| Antenna Type | Whip antenna, length 20cm |
| Polarization type | Vertical polarization |
| Antenna Gain | 2dBi |
| Antenna standing wave ratio | ≤2.0 |
Receiver Antenna
| Antenna Interface | SL16J (With suction cup base) |
|---|---|
| Antenna housing | Glass Fiber Reinforced Plastics |
| Antenna Type | Car Antenna, Length 120cm |
| Polarization type | Vertical polarization |
| Antenna Gain | 10dBi |
| Antenna standing wave ratio | ≤2.0 |
Environmental adaptability
| Operating Temperature | -40℃～+70℃ |
|---|---|
| Storage Temperature | -40℃～+85℃ |
| Humidity | 5~95%， Non-condensing |
Exterior
| Size | Transmitter 93.5 X 54.5 X 15.5 mm Receiver 93.5 X 63.5 X 18 mm |
|---|---|
| Weight | Transmitter 98g Receiver 116g |
| Indicator Light | 6, Power indication / Wireless Link Establishment Indication / Signal Strength Indication |
* 1 For example, in the 800MHz frequency band, setting the operating bandwidth to 5MHz can support 4 sets of image transmission at a distance of 100 meters at the same time.
* 2 The distance measured under visible interference-free conditions.
* 3 The airspeed is related to the communication conditions. When the sex-to-noise ratio of the wireless signal decreases, the airspeed will decrease.
Package
1x Transmitter for Long Range Video/Data/RC Transmitter
1x Receiver for Long Range HD Video/Data/RC Receiver
2x Transmitter Antenna
2x Receiver Antenna
2x Power/UART Cable
4x Antenna Feeder
Image Data Control Wireless Integrated Transmission System
Video Data Control Wireless Integrated Transmission System
User Manual
Almost 170 milliseconds. Yes, it supports AES encryption, please check the setting at the below picture. Yes, Vcan1643 supports to change frequencies, please check the below wireless parameter setting. You can also modify the below parameters. The default video input is HDMI, our engineer will modify the HDMI input to SDI input. Then HDMI will be no function. we will use one adapter cable to have an SDI input function. For the LOS line of sight from air to ground, it supports 17km or 34km depend different PA inside. For the ground use, you should try to high the receiver or receiver's antenna, it is better that you can put it on the top of the buidling or tree. Please check the below picture; If there are some obstacles at the between, for the totally NLOS non-line of sight, its support distance is almost 1km. See the operate video at youtube Some customers want to record the currently received living video signal on the wireless video transmitter and receiver to save it in a USB flash drive. On the receiver of our drone video data RC control link 1643, there is a small dot button, if you don't pay attention, you may not know what it does. In the current demonstration video, we press and hold this button with the tip of the pen, connect the monitor of the receiver, and the recording will appear in the upper left corner of the screen, indicating that the currently received video is being recorded. The time followed by it indicates how long it has been recorded. If you want to end the current video recording, you can do the same operation, touch the small dot button on the receiver with the tip of the pen, and the recording will stop. At this time, look at the display screen of the receiver again, and there is no recording prompt. If you have any questions about operating the wireless video transmitter and receiver, please contact us and I will try my best to help solve it. Or please contact us for technical support online to show you the operation video.
FAQs
1. What about the Video Latency ?
2. Does it supports encryption?
3. Does it support change frequency by the users?
4. Where is the SDI input on the transmitter?
5. How about the distance from the ground to ground, not from air to ground?
6. How to record the living video on the drone wireless video data RC control link receiver to USB?
7. We purchased 2 sets. We need to use the second air unit as a repeater. Could you explain in detail how this should be done?
8. Can you show me one sample of package details for shipping?
6.5 KM drone UAV Really fly Test Vcan1643 from air to ground
Vcan1643 supports 1080p 60fps HDMI video, tested in computer
Vcan1643 supports Multi-camera (PTZ) on the transmitter and one receiver
Joystick controller at receiver to control the PTZ camera in transmitter, remote control,
Vcan1643 7km wireless video transmission test by camera PTZ
Vcan1643 supports HDMI or SDI camera input according to the buyer's requirement
Vcan1643 most features, HDMI input, Video + Data transceiver support RS485 TTL RS232 Data Interface
wireless video HDMI Self grouping transmitters and receiver input two way link web UI air device set
Self-pairing wireless video HDMI transmitter-receiver two-ways link web UI Ground-device setting

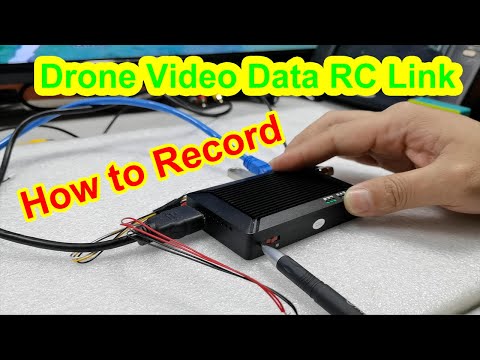

How to record the living video on the drone wireless video data RC control link receiver to USB?
Related products
Bidirectional Two-Ways
2W PA 27KM Real Test from mountain top to seaside Line-of-Sight
Latest 110km test video for the drone Long-range Wirless Video Transmitter and Receiver
Latest test video for the drone Long-range Wirless Video Transmitter and Receiver
NLOS wireless video transmitter and receiver test video in building indoor lift non line of sight
65 KM drone UAV Really fly Test Wireless Video Transmission
1.5km for ground NLOS, 10-20-30km LOS air to ground wireless video transmitter receiver transmission
80KM wireless transmitter-receiver Video Data RC Transmission System HDMI SDI long-range low latency
COFDM-912T NLOS (non-line of sight) 1.5km real test in city, buildings, trees and roads
Web Device Management UI for UAV wireless video data link transmitter transmission by IP Net camera
6.5 KM drone UAV Really fly Test Vcan1643 Main Feature
One HDMI Wireless Video Transmitter to many receivers for home meeting show room.
SDI Camera input encode board + Wireless Video Transmitter assembly DIY
COFDM-907T HDMI + CVBS input NLOS (non-line of sight) 1.5km real test in city, buildings
Cheapest CVBS RCA 720P Wireless Video Transmitter + 1080P Receiver Support 128 encryption
How to set encryption on the transmitter and receiver to protect your privacy
COFDM-912T Really test in the complex city environment, transmitter in the car, receiver in the building
Modify the COFDM Wireless Video Receiver to 890 900Mhz, out of normal DVB-T reception range
Cheap Wireless video transmitter and receiver's small screen has great help on signal strength lock
Modify our tv box to 445.5Mhz 7M bandwidth COFDM DVB T wireless transmitter transmission receiver box
COFDM-905T COFDM Wireless Video Transmitter with two board, Encode board and transmitter board
COFDM-905T Wieless Video Transmitter by CVBS video input test video
how to connect mini wireless HDMI video transmitter and receiver kit use android phone as receiver
OFDM Wireless Video Transmitter for IP Cameras Lightweight Long Range Transmission Automatic Network
Transmission Distance
PA Power Amplifier Inside
Flight Control Protocol
Transmitter Video Input
Wireless Transmit Method
Obstacle and Sight
Encrypt and decrypt
Transmission Carrier
Data Direction
For
Frequency
Application Place
Feature
Antenna
Countries Sold
FAQs about Wireless Video Transmitter and Receiver
1. What types of video inputs port does your wireless video transmitter have?
Our wireless video transmitters have these types of video input interfaces: HDMI 1080P and 4K HDMI, CVBS composite, SDI, AHD, IP Ethernet, BNC, or tell us what type do you need, our engineer will modify to meet your demand.
2. What is the transmission distance supported by your wireless video transmitter?
Our transmission distance can be adjusted by adding power amplifiers. At present, the main ones are 15km, 30km, 50km, 80km, 100km , and 150km, which depend on the needs of customers.
Of course, the transmission distances listed above are all within LOS the line-of-sight range. If there are obstacles between the transmitter and the receiver, NLOS (the non-line-of-sight), the transmission distance is greatly reduced, only 1km or 2km, depending on the number of intermediate obstacles and the local wireless environment.
3. What is one-way or two-way? Simples vs half-duplex, full-duplex
One-way means, We can only transmit and download video or data from the wireless video transmitter to the receiver in one direction, and we cannot upload video or data from the receiver to the transmitter. This type is also called simplex.
Two-way means that, not only we can download video or data from our wireless transmitter to the receiver, but also we can upload the video or data from the receiver to the transmitter. This is very suitable for operating drones. You can not only see the real-time video transmitted from the drone, but also upload the command to control the drone or the command to control the PTZ camera to adjust the angle to the transmitter. This can operate simultaneously. This type also named half-dulpex or full-duplex.
Please check the details at the below link. https://ivcan.com/request-a-quote-of-wireless-video-transmission/#simplex
4. Does your HDMI video transmitter support encryption and receiver decryption?
Most Wireless video transmitters now support AES128 or AES256 bit encryption and decryption, depending on which model you choose. Please contact us to verify.
5. Can the frequency of the wireless video transmitter be modified after ordinary users receive the goods?
The frequencies of both the wireless video transmitter and the wireless video receiver can be modified. Users need to purchase additional parameter configuration boards.
However, considering that the corresponding power amplifier and antenna are already fixed within a certain range when the goods are sent out. If the user adjusts the frequency of the transmitter, the corresponding power amplifier, transmitter antenna and receiver antenna should also be modified to the same frequency, and these users need to be prepared. If not, it will cause the frequency of the wireless video transmitter to be different from the frequency of the antenna, making reception difficult. So please be sure to inform the correct frequency you need before placing an order.
If it is for security or confidentiality, you can use the encryption and decryption functions of the transmitter and receiver, which can ensure that your video transmission is private. .
6. I saw that your model is very similar to my needs, but I need to modify one of the parameters, is that possible?
Yes, all our product parameters can be customized according to customer's needs. If you have a special request, please let us know via the link below.
https://ivcan.com/request-a-quote-of-wireless-video-transmission/
7. What should I do if my wireless video receiver shows a weak signal?
- Change the place of the receiver to avoid potential local interference from strong magnetic environments.
- Ensure that the antennas on both the transmitter and receiver are vertical.
- Please raise the antennas of the transmitter and receiver to maintain a certain height difference.
- Please look around to ensure that there are no obstacles between the transmitter and receiver.
- Change the orientation of the receiver antenna.
- If it doesn't work, try moving the receiver to be near the transmitter's position to see if it exceeds the effective wireless transmission distance.
- Or consider adding a relay of the transmitting between the transmitter and receiver.
- The antenna should be as high off the ground as possible, as the ground will absorb the transmitted signal.
8. Can I buy modules of the transmitters and amplifiers only? I want to assemble them into my equipment.
We can, of course, supply wireless video transmitter modules and power amplifiers.
For the first sample test, I recommend that you purchase the entire set of products because our engineers have optimized the parameters to achieve the best performance.
After you have completed your test verification, you can remove the case or heat sink, install it in your device, and constantly adjust the parameters to achieve the best performance. In the future, you will be able to purchase only the modules or accessories that you require.
9. Can you take a test video for me to see before shipping?
Of course, we also understand that wireless video transmission transmitters and receivers are very expensive. You are far away from the China factory. and hope that the goods you receive are fit for the best performance.
If you pay special attention to a specific parameter or function, we can take some test videos based on the features you want to see, please feel free to contact us. It won't be shipped to you directly without your approval.
10. How to test the latency of wireless video transmitters and receivers?
To test the delay of the wireless video transmitter and receiver, we need to do two tests.
The first is to test the delay from the camera to the display.
The second is the camera, plus the display plus the wireless image transmission transmitter and the delay of the receiver.
Subtracting the two test results is the real delay of the wireless video transmitter and receiver.
