Type | DVB-T / T2 H.265 | DVB-T / T2 H.264 | DVB-T | ISDB-T |
4 Tuner 4 Antenna | DVB-T26540 | DVB-T240 | / | ISDB-T7800 |
2 Tuner 2 Antenna | DVB-T265 | DVB-T221 | DVB-T7200 | ISDB-T9820 |
1 Tuner 1 Antenna | / | DVB-T2K | DVB-T7000 | ISDB-T63 |
DVB-T2 H.265 Selling Points: Car DVB-T2 H265 TV receiver box;Japan tuner, designed for carSupport DVB-T H.264 / DVB-T2 H.265 both;Two active antenna 25db;German DVB-T2 standard (H.265)For Germany Italy Czech Slovakia

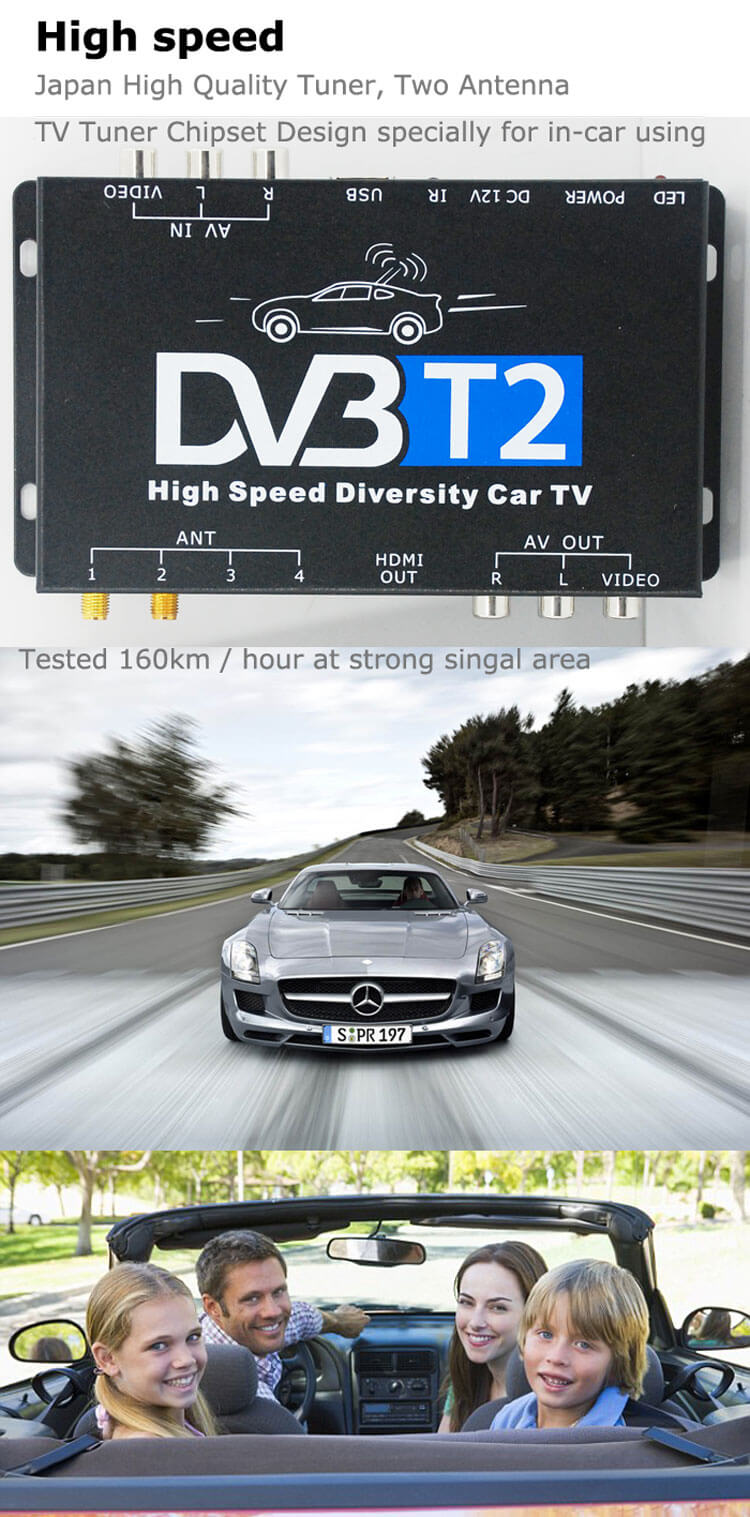

Car DVB-T2 TV tuner diversity digital receiver set top box + Antenna, support H.265 HEVC decoder
DVB-T265 Car DVB-T2 tv receiver USB HDTV 2 Antenna Japan Tuners High Speed for Germany Italy Czech Slovakia Terrestrial HD receiver for the DVB-T (H.264) and DVB-T2 (H.265 / HEVC) reception Features:
- Now Support DVB-T / DVB-T2 + High Speed.
(Now DVB-T, future updated DVB-T2, once buy, save money.)
- Support Multi PLP, say goodbye to missing channel
- Support H.264/AVC for DVB-T, H.265/HEVC for DVB-T2., MPEG2~MPEG4 HD Video Decode;
- Available to upgrade the firmware via USB slot;
- USB Recorder, PVR, multimedia play, support HDD;
- Auto searching and updating bit rate information;
- Storage for 2000pcs channels;
- Memory function after power off;
- Support OSD TELETEXT;
- Multi-Language Support: English, Germany, Italy, Russian, Thai, Spanish, etc.
- EPG program guide and PIG(Picture in Graphics )Function;
- 6MHz, 7MHz, 8MHz Band-wide;
- HD output (One route);
- 2x Video output, Stereo Audio-R, Audio-L output;
- Support IR output and extended remote sensor receiver;
- Google DVB-T265 to get perfect technology support and update software.
- Support AUX AV input.
- Tuner support power for active amplified antenna (VCAN0961 http://ivcan.com/product/VCAN0961-Car-DVB-T-DVB-T2-Digital-TV-antenna-aerial-built-in-signal-enlarger-booster.html)
- 10~32V wide power supply, specially designed for cars or buses.
- Smart module design, even built-in your DVD / gps play.
- Touch screen operation is optional. (Need debug and ODM)
- Power DC jack, one cigarette lighter to connect easily
HEVC(H.265)Decoder
different encoding and display frame rates
1. Very-important is that the module really provides full H.265 Multi-PLP decoding capabilities. Only this is going to work in Germany since the old standard with H.264 will be discontinued in Germany from March 2017. DVB-T265 supports H265, also supports H264, that means you can get the TV now and future.
- I need same DVBT2 with CI slot for pay tv please.
- It working in Slovakia? Now it is DVB-T and DVB-T2 together.
DVB-T265 has no CI slot now. We will add CI slot if market requirement increase at future. DVB-T265 support DVB-T (H.264) and DVB-T2 (H.265), Some customer told us that TV program has picture without sound, maybe it is reason that your tv box no support audio (H.265) decoder.


DVB-T2 HD receiver for High-definition pictures and two DVB-T2 high-performance antenna with controllable amplifier. German standard HEVC/H.265-Codec
Specification:
- Input frequency: VHF 177.5MHz – 226.5MHz UHF 474MHz – 858MHz
- Modulate: QPSK/16 – QAM/256-QAM
- Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
- Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC
- Two ways CVBS RCA + One HD output:
- Power Supply: DC 12V~26V 5W
- Connecting Terminal:
Active amplifier antenna input jack (3.3V supply), Car power input jack , R/L Audio CVBS Video output jack, External remote control IR cord, USB upgrade socket, HD High-definition output jack.
- Applicable Power Supply: Car storage battery (12V~ 24V)
- Outer dimension: 125mm x 85mm x 26mm
- Application Temperature: -5 ~40 degree
- Storage Temperature: -20~60 degree
Technology Data:
TV Standard | Fully SD/HD Tuner DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264 |
Video Resolution | Full HD tuner DVB-T2,support up to 1080P |
Video System | Automatic PAL/NTSC conversion |
Video Ratio | Aspect ratio 16:9 and 4:3 |
Channels Number | 1000 channels memory |
OSD Language | OSD language: English, Thailand, Russia, Spainish more please visit ivcan.com |
EPG | Small windows screen picture with EPG graphic menu,7-Day EPG function |
Channel Search | Auto search & Manual search function |
Software upgrade | Software upgrade via USB |
Teletext | Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle |
Save Channel | Automatic save for last channel |
LCN | Support Logic Channel Number(LCN) |
1. Main Chip Sets | |
Flash Memory | 32MB Serial Flash |
DDR2 Memory | 512MB |
2.Tuner | |
Input Frequency | VHF: 174~230MHz,UHF: 470~862MHz |
RF input Level | -20~-83dBm |
RF Bandwidth | 6MHz-7MHZ and 8MHZ |
Modulation | QPSK,16QAM,64QAM,256QAM |
3.USB Decode | |
DVR supporting | Stereo/MONO/Left/Right |
Media Supporting | USB2.0 Port, playback the media in USB flash disk or USB HDD |
USB2.0 HOST | DVR with USB HDD, Time shifting with USB HDD |
4.Multimedia | |
music | MP3,WMA |
photo | JPEG,BMP,PNG |
Video | |
5.Video Decode | |
Decode Format | MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format, H.264MP@HL, VC-1,RM&RMVB(Optional) |
Output Format | 1080p,1080i,720p,576p,576i,480p,480i |
Aspect Ratio | 4:3/16:9/Letterbox/ selectable |
Output Port | CVBS and HD Out |
6.Audio Decode | |
Decode Format | MPEG-1,MPEG-2 (Layer I/II),MP3, AC-3(Optional),E-AC-3(Optional),AAC-LC,HE-AAC 5.1 |
Audio output | RCAX2(L/R) + HD Out (Audio) |
7.AV Output | |
Video Bandwidth | 5.5MHz(-3dB) |
Video Impedance | 75Ω |
Video Voltage Level | 1.0 Vp-p |
Audio Freq. Range | 20~20KHz |
Guard internal | 1/4,19/128,1/8,19/256,1/16,1/32,1/128 |
Pilot pattern | PP1-PP7 |
Power Supply | DC(10V-26V) |
Hardware interface | DC input 12V, 2 Antenna input, USB, HD out, AUX AV in, CVBS AV out, IR sensor, Power Indicator |
Audio format | ISO/IEC14496-30,AAC,AAC+ |
FFT | 1K,2K,4K,8K,16K,32K |
Power | 2 W |
Video resolution | 576i,576p,720p,1080i and 1080p |
Audio Impedance | 600Ω |
Audio Voltage Level | 2V rms(5.6Vp-p) |
Accessory: 1 X Car DVB-T2 receiver 2 X 25DB car amplifier digital DVB-T2 Antenna 1 X power / ir / av cable 1 X Remote Control Unit 1 X Extended IR Cable 1 X Audio Video output cable 1 X Users’ manual


Unit Outer dimension: 14cm x 8.5cm x 2.6cm Packing details:
Product Name: | DVB-T265 |
Size per carton: | 64*45*26(cm) |
Single weight: | 1.1 (kgs) |
Quantity per carton: | 20 (pcs) |
Weight per carton: | 22(kgs) |
Single size: | 25*22*8(cm) |
