50kmLevel Zero Latency Video Transmission System
Transmitter
50kmFunction Introduction of Level Zero Latency Video Transmission System
Product Features
The operating frequency band can be300MHz～900MHz adjustable
Audio and video interface: digital HDMI
High-quality digital video processing and H.265 Video codec, full HD quality
Zero delay: the system delay is about30 milliseconds
Stable image and voice transmission under high-speed mobile and multi-path interference
powerful NLOSNLOS Capability
Capable of space diversity reception
With encryption function (configurable)
transmit power2W
Application range
Widely used in unmanned aerial vehicles (disaster relief, emergency rescue, forest fire prevention), three-defense emergency communication, radio and television broadcast, radio and television live broadcast; Police; image transmission of public security, armed police, fire command vehicles, scouts and command centers; maritime high-quality data in border anti-smuggling, maritime affairs, coastal defense and other fields Real-time monitoring of traffic images; real-time news collection/Wireless mobile camera vehicles for event broadcast; aerial reconnaissance and monitoring of helicopters and airships are not suitable for deployment Wired and long-distance full HD digital video transmission field that cannot be wired.
Specifications:
| Zero Latency Full HD Video Transmitter | |
| model | VCAN1871 |
| Modulation | COFDM 2K |
| modulation mapping | QPSK / 16QAM |
| video encoding format | based on the FPGA of H.265 soft coding |
| Encryption | 128 bit AES encryption of |
| parameter settings | serial portRS232 or dedicated settings module |
| frequency bandwidth | 8m(other adjustable) |
| transport stream | 4~6Mbps(default, other adjustable) |
| RF transmission interface | SMA Female (50Ω） |
| transmit power | <2W |
| input video | 1920*1080P@ 60 / 50 / 30 / 25 fps，1280*720P@ 60 / 50 fps |
| HD Interface | HDMI type-A |
| system delay | Image transmission delay≤30ms |
| Transmission distance | 50kmabove (line-of-sight distance) |
| power interface | XT30 public seat |
| voltage range | DC 9~15V |
| power consumption | DC [email protected] |
| Operating temperature | -20℃～+50℃ |
| Standard sizes | 92mm x 68mm x 34mm（101*81*40） |
| Total Weight | 300g |

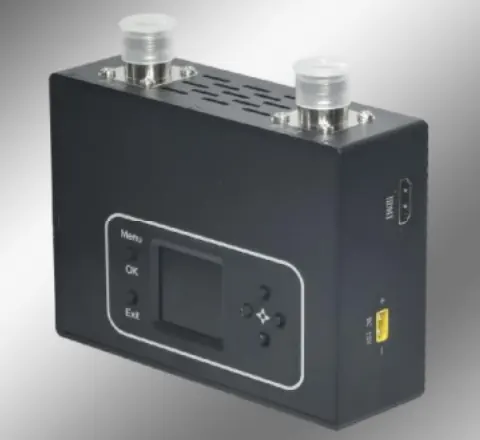

BRZero Latency Version Receiver
| Zero Latency Full HD Video Transmission Receiver | |
| model | VCAN1871 |
| Receive frequency range | 200-900MHz |
| frequency bandwidth | 8MHz(other optional) |
| Demodulation method | COFDM 2k |
| Constellation way | QPSK / 16QAM |
| parameter settings | RS232 Serial cable external lead (DuPont female head) |
| Support movement speed | 600km/h |
| radio frequency reception | pair N Female (50Ω） |
| Receiver sensitivity | -94dBm |
| video decoding | H.265 |
| screen aspect ratio | 16:9 |
| video output format | 1920*1080P@ 60 / 50 / 30 / 25 fps |
| Video output interface | HDMI |
| power interface | XT30 public seat |
| Operating Voltage | DC12V @0.9A |
| Operating temperature | -20℃～+50℃ |
| Standard sizes | 128.5mm x 92mm x 42mm |
| equipment weight | 480g |
If the appearance and performance of the above products are subject to change or upgrade, the actual product shall prevail without prior notice.
