How to Capture Transport Stream file?

Transport Stream (TS),  is a standard digital container format for the transmission and storage of audio, video, and Program and System Information Protocol (PSIP) data.[3] It is used in broadcast systems such as DVB-T, DVB-T2, ISDB-T, ATSC, and IPTV. Transport stream specifies a container format encapsulating packetized elementary streams, with error correction and synchronization pattern features for maintaining transmission integrity when the communications channel carrying the stream is degraded. Transport streams differ from the similarly-named MPEG program stream in several important ways: program streams are designed for reasonably reliable media, such as discs (like DVDs), while transport streams are designed for less reliable transmission, namely terrestrial or satellite broadcast. Further, a transport stream may carry multiple programs.

For more details, please see Wiki, https://en.wikipedia.org/wiki/MPEG_transport_stream

Why need to Capture the Transport Stream file? Sometimes clients complain that the TV receiver has a problem. For example, no sound, no channel, missed a channel, audio, and video NOT synchronized, etc. The best solution is that send us TS (transport Steam ) file, which file has including all the information from local digital television broadcasts. we can test in the factory lab, and offer you upgrade software.

how to obtain a ts file of local tv program

If you want to obtain a .ts file of a local TV program, here are some possible methods depending on your setup:

1. Using a Digital TV Tuner and Recording Software

  • If your local TV program is broadcast over-the-air, you can use a DVB-T/C/S tuner (such as a USB TV tuner) and software like:
    • DVBViewer
    • NextPVR
    • TSReader
    • ProgDVB
  • These programs allow you to record TV streams in .ts (Transport Stream) format.

2. Using IPTV Streams

  • Some local TV stations provide IPTV (M3U) links for online streaming.
  • You can use FFmpeg to capture the stream and save it as a .ts file:
    • ffmpeg -i "http://stream-url" -c copy output.ts
  • Alternatively, use VLC Media Player:
    1. Open VLC → Media → Open Network Stream.
    2. Enter the URL and start streaming.
    3. Use Convert/Save to save as a .ts file.

3. Using a Set-Top Box with USB Recording

  • If your TV provider allows recording, connect a USB drive to your DVB set-top box.
  • Record the program and extract the .ts file from the USB storage.

4. Using Screen Recording as a Last Resort

  • If no direct .ts capture is possible, use screen recording software such as:
    • OBS Studio
    • VLC (with recording enabled)
  • However, this will not give you the original .ts format but can be converted later.

How to capture Transport Stream file via our DVB-T2U USB DVB-T2 stick?

1. Please sure that you have the hardware DVB-T2U

USB DVB-T2 PC DTV receiver DVB-T2 DVB-T DVB-C SDR FM DAB TV stick DVB-T2U, change your PC to DTV
How to capture Transport Stream file? Top 1 solution 1
DVB-T2U, a device that can capture Transport Stream file

2. In order to get a good tv signal, it is better that you can connect your local cable tv signal instead of a small antenna.

3. Assure that DVB-T2U is working well and getting a good tv signal.

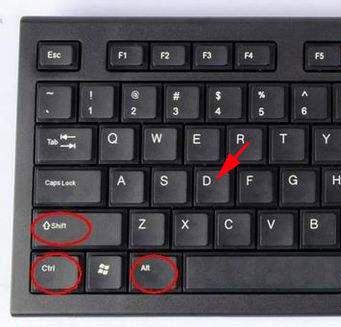

  1. Press Ctrl + Shift + Alt + D Simultaneously
capture transport stream

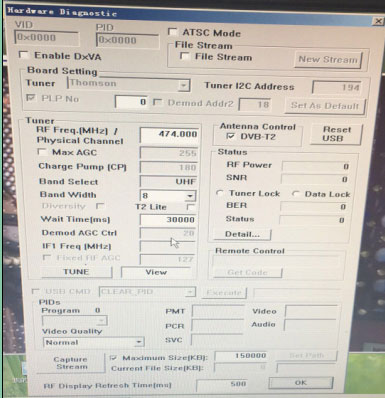

5. The monitor will show special windows

TS Capture

6. Choose DVB-T2U

7. Click Capture Stream

8. Click OK

9. Waiting for 2 minutes.

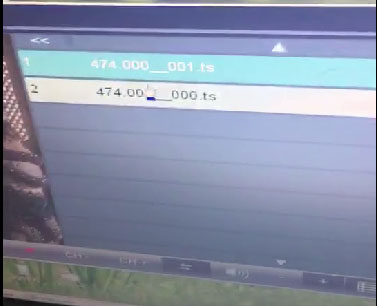

10. You will find the *.TS file on my computer>my documents>TVR>Capture>

Capture TS file

11. Please send us *. TS file.

Any questions, please feel free to contact us.
