— TDD OFDM full duplex wireless transceiver module for video and data link
— Up to 30Mbps Iperf Throughput @20MHz channel
— Supports Point-to-Point and Point-to-Multipoint networks
— RF Tx Power: 25±2dBm
— Working Frequency: 806~826HMz, 1428~1448MHz, 2402~2482MHz
— Web UI or control uart for management
— 2 Ethernet and 1 TTL uart data link
DLM module was designed for video and data wireless transmission with two way wireless data link. This OFDM radio module works at 800MHz, 1.4GHz and 2.4GHz bands, with frequency hopping technology (FHSS) to make sure better stability signal communication.
- TDD OFDM modulation
- Supports three bands (806~826HMz/1428~1448MHz/2402~2482MHz)
- Supports FHSS inside each band
- 1.4/3/5/10/20MHz band widths
- Max [email protected] throughput
- RF transmission power: 25±2 dBm
- Constellation: QPSK, 16QAM, 64QAM, self-adaption
- Sensitivity: -106dBm(2.4GHz 1Mbps), -108dBm(1.4GHz 1Mbps), -108dBm(800MHz 1Mbps)
- Supports IP data transmission(2 Ethernet port)
- Supports serial data transmission(1 channel, TTL)
- Up to 17km LOS (UAV-to-ground) and 2km LOS(ground-to-ground)
- Web UI or control uart for management
- AES128 encryption
- Uplink and downlink stream control
- Networking mode: Point-to-Point, Point-to-Multipoint, Relay, mesh(specify)
- Movement Speed: Supports no less than 120km/h
- Power input: 7~30V
- Power consumption<4W
- Dimensions: 58*48*10mm
- Weight: 28g

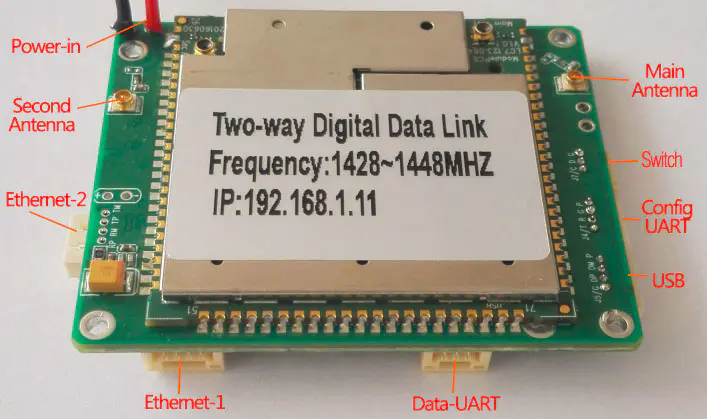

|Power in||2 welding hole, DC in:7~30V|
|Ethernet 1||4PIN PH1.25mm lockable connector|
|Ethernet 2||4PIN PH1.25mm connector|

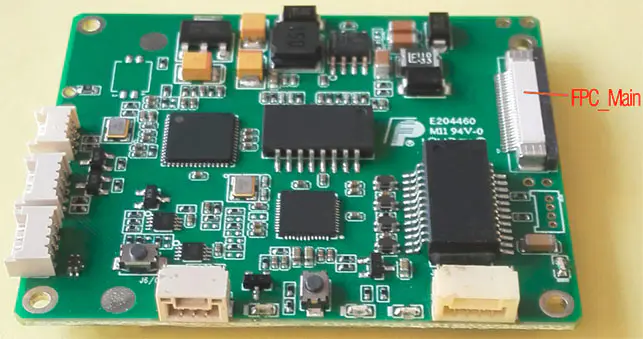

|FPC_Main||Designed for connecting with video encoder/decoder module|
|Data uart||3PIN PH1.25mm lockable connector, TTL 3.3V|
|Control uart||4PIN PH1.25mm connector, TTL 3.3V|
|USB||4PIN PH1.25mm connector, for software upgrading|
|Switch||Tx/Rx control signal for outside power amplifier|
|Main antenna||Tx/Rx Antenna port, IPEX|
|Second antenna||Rx Antenna port, IPEX|

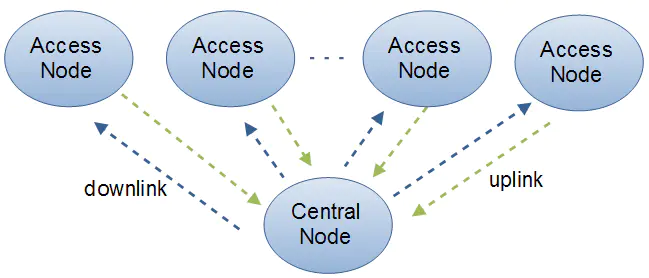

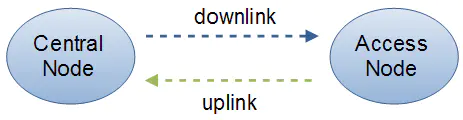

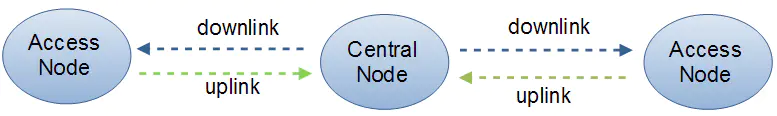

Wireless networking with DLM
DLM module supports two operating modes: Access Node or Central Node. It can be managed through Web UI or AT command via config uart. DLM module supports features of maximum 16 Access Nodes connected to a Central Node. All of the Nodes are in a same wireless LAN and share the whole transmission bandwidth (maximum [email protected] throughput). Data from Central Node to Access Node, we call downlink, and data from Access Node to Central Node, we call uplink. Uplink and downlink stream ratio can be controlled through web UI or AT command. When using DLM module for Point-to-Point transmitting, uplink and downlink share the whole transmission bandwidth (maximum [email protected] throughput) too. DLM module supports networking mode: Point -to-Point, Point-to-Multipoint, Relay, and Mesh (specify mesh version when order).
Add Tx Power Amplifier

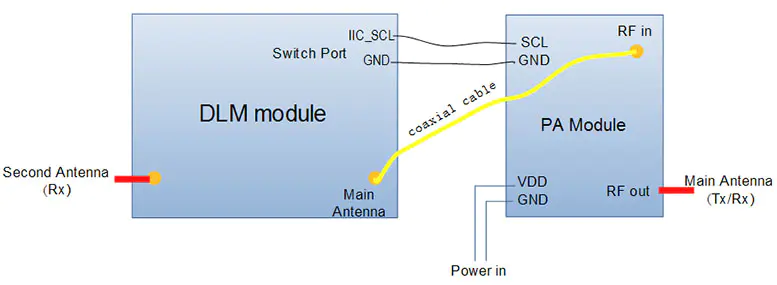

The maximum RF transmission power of DLM module is 25±2 dBm, also provides power amplifier to increase the RF Power to 2W/5W/10W. Below diagram shows how to add power amplifier outside of the DLM module.

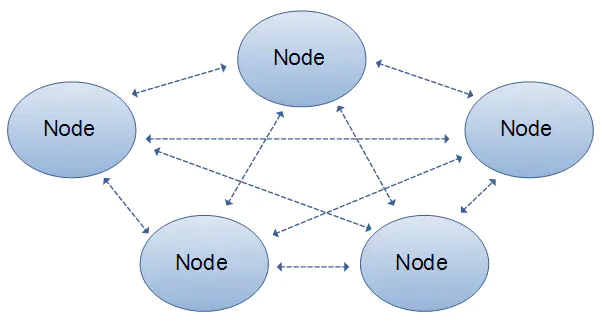

Mesh transmitting (Specify)
