300mW series video transmitter with TDD duplex data Link

  — 300mW TDD OFDM full-duplex wireless transceiver works at 800MHz, 1.4GHz, or 2.4GHz bands
    — HD video transmission with H.265/H.264 video codec supporting
    — Ethernet and TTL uart data link
    — Transmit distance: 500~2000 meter(ground-to-ground), 5~17km(UAV-to-ground)

These wireless digital video transceivers were designed to capture real-time HD video with two-way wireless data links. These transceivers feature HD or SD video input/output with two-way OFDM modulation technology and H.265/H.264 codec that complete video audio transmission in high-speed motion with low latency. This OFDM radio works at 800MHz, 1.4GHz, or 2.4GHz bands, with frequency hopping technology (FHSS) to make sure better stable signal communication.

Now we have 2 models of video transmitters in this series:
    – HDT510 video transmitter with HDMI/AV input
    – HDT511 video transmitter with SDI/AV input

Features

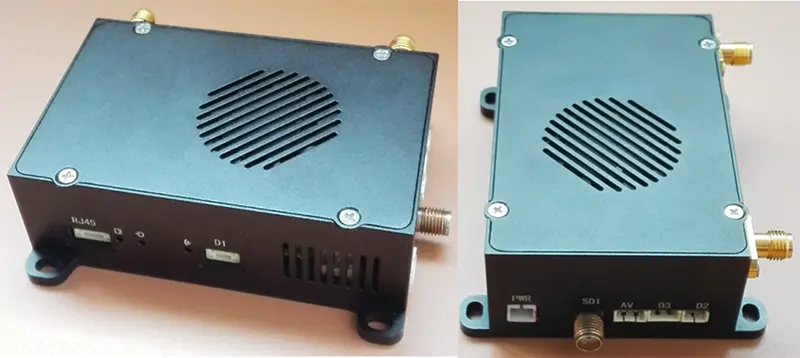

• TDD OFDM modulation
• Supports 3 bands (806~826HMz/1428~1448MHz/2402~2482MHz)
• Supports FHSS inside each band
• 1.4/3/5/10/20MHz bandwidths
• Maximum 26Mbps@20MHz throughput
• RF transmission maximum power: 300mW
• Constellation: QPSK, 16QAM, 64QAM, self-adaption
• Sensitivity: -106dBm(2.4GHz 1Mbps), -108dBm(1.4GHz 1Mbps), -108dBm(800MHz 1Mbps)
• H265/H264 Video codec, full HD resolution 1080p/i @60fps(optional 4K@30fps)
• Supports IP data transmission(1 Ethernet port)
• Supports serial data transmission(2 channel, TTL)
• 500~2000m(ground-to-ground), 5~17km(UAV-to-ground)
• Control uart for management
• AES256 encryption
• Uplink and downlink stream control
• Movement Speed: Supports no less than 120km/h
• Compact size and lightweight
• Rugged aluminum alloy housing

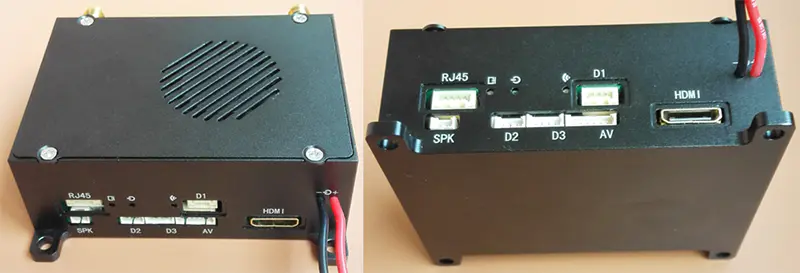

HDT510 Video Transmitter

Video input	HDMI or CVBS, auto-detected after system start-up (optional: HDMI+CVBS at the same time)
Video formats	1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL) (optional: 3840*2160@30fps)
Video encoder	H.265/H.264
Audio input	Embedded HDMI or analog audio
Audio coding	AAC, 16bit, stereo, 32Kbps
HD video input	Mini HDMI, HDMI type “B” connector
Composite video input	6PIN PH1.25mm connector
TTL data uart(D1)	3PIN PH1.25mm lockable connector
TTL data uart(D2)	3PIN PH1.25mm connector
TTL control uart(D3)	4PIN PH1.25mm connector
Ethernet	4PIN lockable connector
Speaker	2PIN PH1.25mm connector
Power in	VDD/GND cables
RF output	Two SMA female
Power input	9~24V(default 12V)
Power Consumption	<6.5W
Dimensions	74*53*29mm
Weight	102.4g

HDT511 Video Transmitter

Video input	SDI or CVBS, auto-detected after system start-up
Video formats	1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL)
Video encoder	H.264
Audio input	Embedded SDI or analog audio
Audio coding	AAC, 16bit, stereo, 32Kbps
HD video input	SDI, SMA female
Composite video input	4PIN PH1.25mm connector
TTL data uart(D1)	3PIN PH1.25mm lockable connector
TTL data uart(D2)	3PIN PH1.25mm connector
TTL control uart(D3)	4PIN PH1.25mm connector
Ethernet	4PIN lockable connector
Power in	2PIN PH2.0mm connector
RF output	Two SMA female
Power input	9~18V(default 12V)
Power Consumption	<7W
Dimensions	80*52*26.9mm
Weight	110g
