10.1-inch COFDM Wireless Receiver 900-902-928-930Mhz rgear

Table of Contents

Overview

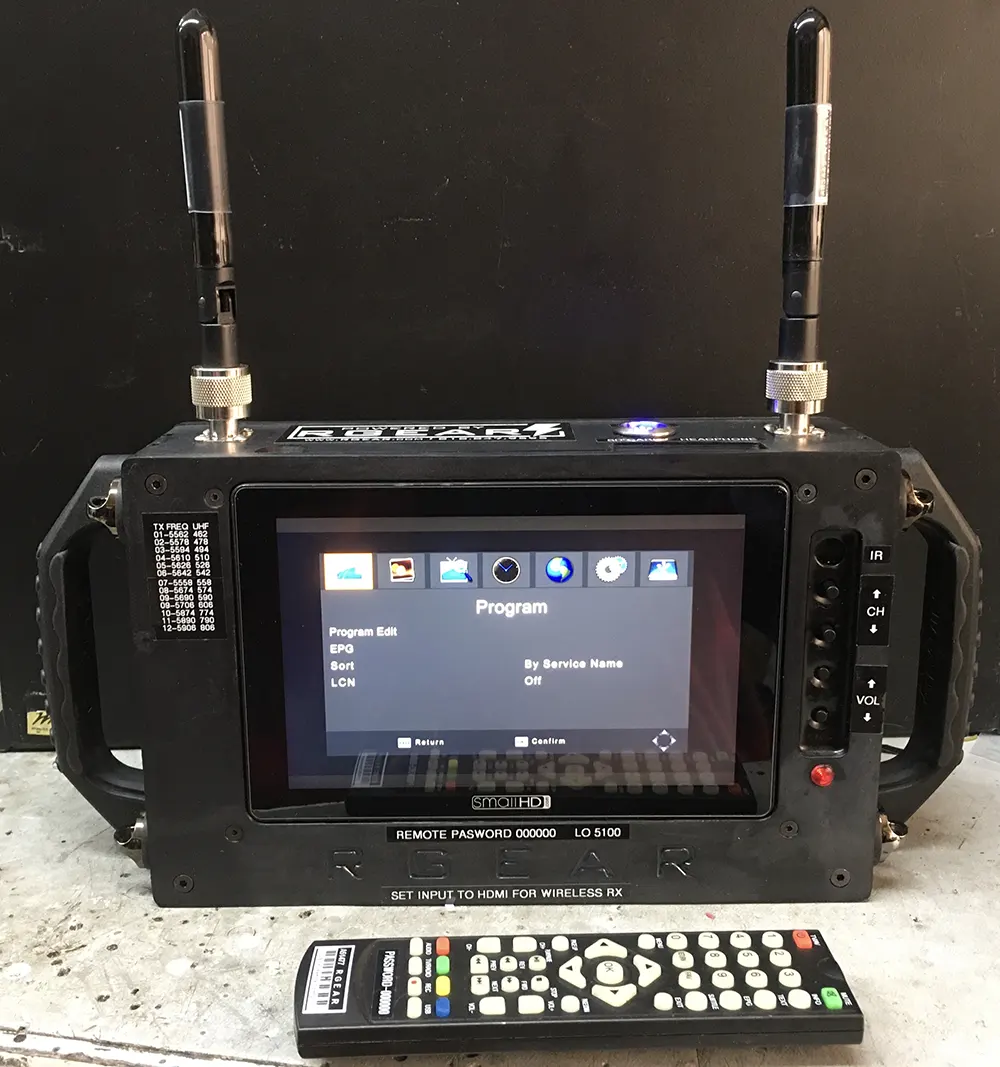

The 10.1-inch COFDM Wireless Receiver is a high-performance portable device designed to receive wireless video transmissions over a wide range of frequencies (900MHz, 902MHz, 928MHz, and 930MHz). It features a compact, robust 10.1-inch screen and an advanced COFDM modulation technology that ensures reliable signal reception in environments with challenging RF conditions, such as urban areas or moving platforms. This receiver is ideal for use in video transmission applications where long-range, real-time video streaming is required.

Key Features:

10.1-inch LCD Display: High-resolution display for clear and sharp image viewing.
COFDM Technology: Supports the COFDM (Coded Orthogonal Frequency Division Multiplexing) modulation, ideal for high-quality, interference-resistant wireless video transmission.
Multiple Frequency Bands: Operates on the 900, 902, 928, and 930 MHz frequencies for flexible and robust communication.
HDMI Input/Output: Supports HDMI connectivity for seamless integration with other devices and media players.
Portable and Lightweight: Designed for easy transport, making it suitable for field operations, sports broadcasting, and outdoor video monitoring.
Durable and Rugged: Built to withstand harsh environmental conditions, with a rugged frame and sturdy construction.
Multi-Language Support: Compatible with several languages for global usage.

Features

Wireless Reception: The receiver uses COFDM technology, which is ideal for real-time video transmission in challenging conditions, offering enhanced reception and signal stability.
Wide Frequency Support: Supports 900 MHz, 902 MHz, 928 MHz, and 930 MHz bands for versatile use, particularly in areas where traditional wireless communication may be obstructed.
Portable and Easy to Use: The 10.1-inch display ensures ease of operation while remaining portable and lightweight for outdoor and on-the-go applications.
HDMI Input/Output: The device supports HDMI video input for easy integration with cameras, drones, and other video equipment, and it can output video signals to external displays for larger viewing.
High-Quality Display: Featuring a high-resolution LCD screen, this receiver ensures that users can clearly view the received video signals with minimal latency.
Multiple Applications: Whether you’re in broadcasting, surveillance, or outdoor events, the receiver is versatile and adaptable to numerous professional needs.

Specifications

Specification	Details
Display	10.1-inch LCD
Modulation Technology	COFDM (Coded Orthogonal Frequency Division Multiplexing)
Frequency Bands	900 MHz, 902 MHz, 928 MHz, 930 MHz
Video Input/Output	HDMI Input/Output
Resolution	1920 x 1200 pixels (HD)
Power Supply	DC 12V (Adapter Included)
Power Consumption	≤ 15W
Weight	1.5 kg
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +70°C
Dimensions	280mm x 180mm x 40mm
Audio Output	HDMI Audio, Stereo Output
Chassis Material	Metal (aluminum alloy)
Additional Features	Multi-language menu, OSD (On-Screen Display), Anti-glare Screen

Applications

The 10.1-inch COFDM Wireless Receiver is designed for a variety of professional video transmission and reception applications:

Broadcasting & Live Events: Ideal for remote video broadcasting where reliable, high-quality transmission over long distances is crucial.
Surveillance & Security: Used in security applications to monitor areas with long-range, interference-free wireless video reception, such as in large estates or citywide surveillance systems.
Military & Defense: Essential for tactical field operations where video needs to be transmitted and received reliably over different terrain and in challenging environments.
Aerial & Drone Applications: Perfect for drone operators who need a portable, reliable device to receive live video feeds from unmanned aerial systems (UAS).
Outdoor & Sports Broadcasting: For capturing video from remote or mobile positions during sports events or outdoor activities where traditional wired connections are not feasible.
Film Production: Used on set for monitoring real-time video feeds from cameras, helping to ensure the director and crew have immediate access to footage.
