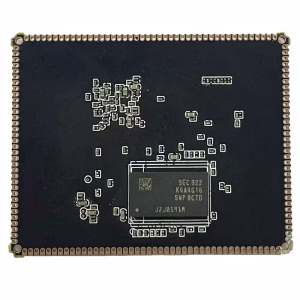

রকচিপ RV1126 কোর বোর্ড আইপিসি এআই ডেভেলপমেন্ট মডিউল কৃত্রিম বুদ্ধিমত্তা PCBA সার্কিট পিনআউট কাস্টমাইজড ওডিএম আইপি ইথারনেট আউটপুট RSTP H264/265
বৈশিষ্ট্য:
সবিস্তার বিবরণী
সিপিইউ
• ARM Cortex-A7 1.5GHz 32-বিট কোর যা NEON এবং FPU একত্রিত করে. প্রতিটি কোরের জন্য একটি 32KB আই-ক্যাশ এবং 32KB ডি-ক্যাশ এবং একটি 512KB ইউনিফাইড L2 ক্যাশে রয়েছে.
• RSIC-V 400MHz
এনপিইউ
• 2Tops, INT8/ INT16 সমর্থন করে
স্মৃতি
• 32bit DDR4 1G
• eMMC 8G সমর্থন করুন
• দ্রুত বুটিং সমর্থন করে
প্রদর্শন
• MIPI-DSI/RGB ইন্টারফেস, 1080P60fps পর্যন্ত
2ডি গ্রাফিক্স ইঞ্জিন
• সমর্থন ঘূর্ণন, x-মিরর, y-আয়না
• Support alpha blending
• সমর্থন স্কেল-ডাউন/আপ
মাল্টি-মিডিয়া
• 14M ISP 2.0 3F HDR সহ(লাইন-ভিত্তিক/ফ্রেম- ভিত্তিক/ডিসিজি)
• সমর্থন 2*MIPI CSI/LVDS/sub-LVDS
• DVP interface with BT.656/BT.1120
• 4K H.264/H.265 30fps video encoder
• 3840 x 2160@30 fps+720p@30 fps এনকোডিং
• 4K H.264/H.265 30fps video decoder
• 3840 x 2160@30 এনকোডিং + 3840 x2160 @30fps ডিকোডিং
বাহ্যিক ইন্টারফেস
TSO নেটওয়ার্ক ত্বরণ সহ RGMII ইন্টারফেস
• ইউএসবি 2.0 ওটিজি এবং ইউএসবি 2.0 • ডুয়াল SDIO 3.0 Wi-Fi এবং SD কার্ডের জন্য ইন্টারফেস
• TDM/PDM সহ 8ch I2S, 2ch I2S
উপস্থিতি
• 2020 Q4 ই
• SMIC 14nm, কিউএফএন 156 1.0
এসওসি | RV1126, RV1109 |
র্যাম | 32-বিট, 512MB*2 |
রম | 8জিবি ইএমএমসি |
এনপিইউ | 0টপস, RKNNAI ফ্রেম সমর্থন করে |
USB ইন্টারফেস | দুটি ইউএসবি, একটি স্বাধীন ওটিজি, one independent HOST |
UART serial port | 6 TTL3.3V level, one of which is Debug |
GPIO Interface | 102 GPIOs (বিঃদ্রঃ: there is a multiplexing function, please check the pin definition in this specification> |
PWM interface | 5-way PWM has 3.3V/1.8V levels respectively (please check the pin definition in this specification) |
MIPI DSI shows | 1 channel Maximum 1920×1080 60FPS |
করতে পারা | 1 চ্যানেল |
RGB display | 1 channel RGB 888 display interface, maximum 1920×1080 |
DVP camera interface | 1 channel 16-bit parallel DVP camera interface |
MIPI camera interface | 2 channels MIPI CSI RAW data camera interface (one channel 4K/30) |
Voice output | 1 channel Left and right channel output |
ভয়েস ইনপুট | 1 PDM ডিজিটাল সিলিকন মাইক্রোফোন ইনপুট, 1 এনালগ LANE_IN ইনপুট বা I2S |
SDIO ইন্টারফেস | 2 SDIO ইন্টারফেস, একটি টিএফ কার্ড, অন্যটি WIFI এর সাথে সংযুক্ত হতে পারে |
ADC ইন্টারফেস | 6 ADC ইন্টারফেস |
I2C ইন্টারফেস | 4 I2C ইন্টারফেস |
SPI ইন্টারফেস | 2-উপায় SPI ইন্টারফেস |
ইথারনেট | – একমুখী RGMII PHY ইন্টারফেস, গিগাবিট ইথারনেট |
সিস্টেম আপগ্রেড | স্থানীয় ইউএসবি আপগ্রেড সমর্থন করে |
আয়তন | 38*48মিমি |
পিসিবি স্তর | FR4-6 স্তর |
কাজের আওতা | -10℃-7o℃ |
একটি RV1126 রকচিপ কোর বোর্ড সার্কিট সরবরাহকারী হিসাবে, আমরা কাস্টমাইজড দ্বিতীয় ডেভেলপমেন্ট লেআউট ডিজাইন উৎপাদন পরিষেবা এবং পণ্যগুলি পিন করার অফার করি.
This AI artificial intelligence core module is an AI intelligent module designed based on Rockchip RV1126 high-performance AI processor, quad-core RV1126 ARM [email protected] 32-bit core, integrated NEON, and FPU. Each core has a 32KB l-cache and 32KB D-cache and 512KB unified L2 cache. Built-in NPU supports INT8/INT16 mixed operation, computing power up to 2TOPS Built-in RISC-V architecture MCU; supports Linux4.19 operating system, the network model has strong compatibility, supports a series of deep learning such as TensorFlow / MXNet / PyTorch! Caffe framework that is easy to convert. Super performance, fast system startup, and high stability.
Can be adapted to different face recognition algorithms, suitable for embedding in various AI vision products, widely used in binocular face recognition panel machines, AI binocular cameras, smart communities, smart doorbells, smart access control/cat’s eye, face payment, Related industries related to intelligent upgrades such as driving recorders, game interaction, এবং ওয়েবকাস্টিং.
