AAT Flat-panel automatic tracking antenna directional antenna for drone Mavlink wireless video data transmitter and receiver

Автоматична проследяваща антена с плосък панел, насочена антена за дрон Mavlink безжичен предавател и приемник на видео данни

Код: vcan1916 категория: Безжична антена за видео предаване Tags: auto antenna tracker, auto tracking antenna, directional antenna

описание
Изпратете запитване

Flat-panel automatic tracking antenna directional antenna for drone Mavlink wireless video data transmitter and receiver Vcan1916

AAT Flat-panel automatic tracking antenna directional antenna for drone Mavlink wireless video data transmitter and receiver — AAT Автоматична проследяваща антена с плосък панел, насочена антена за дрон Mavlink безжичен предавател и приемник на видео данни

Съдържание

Въведение

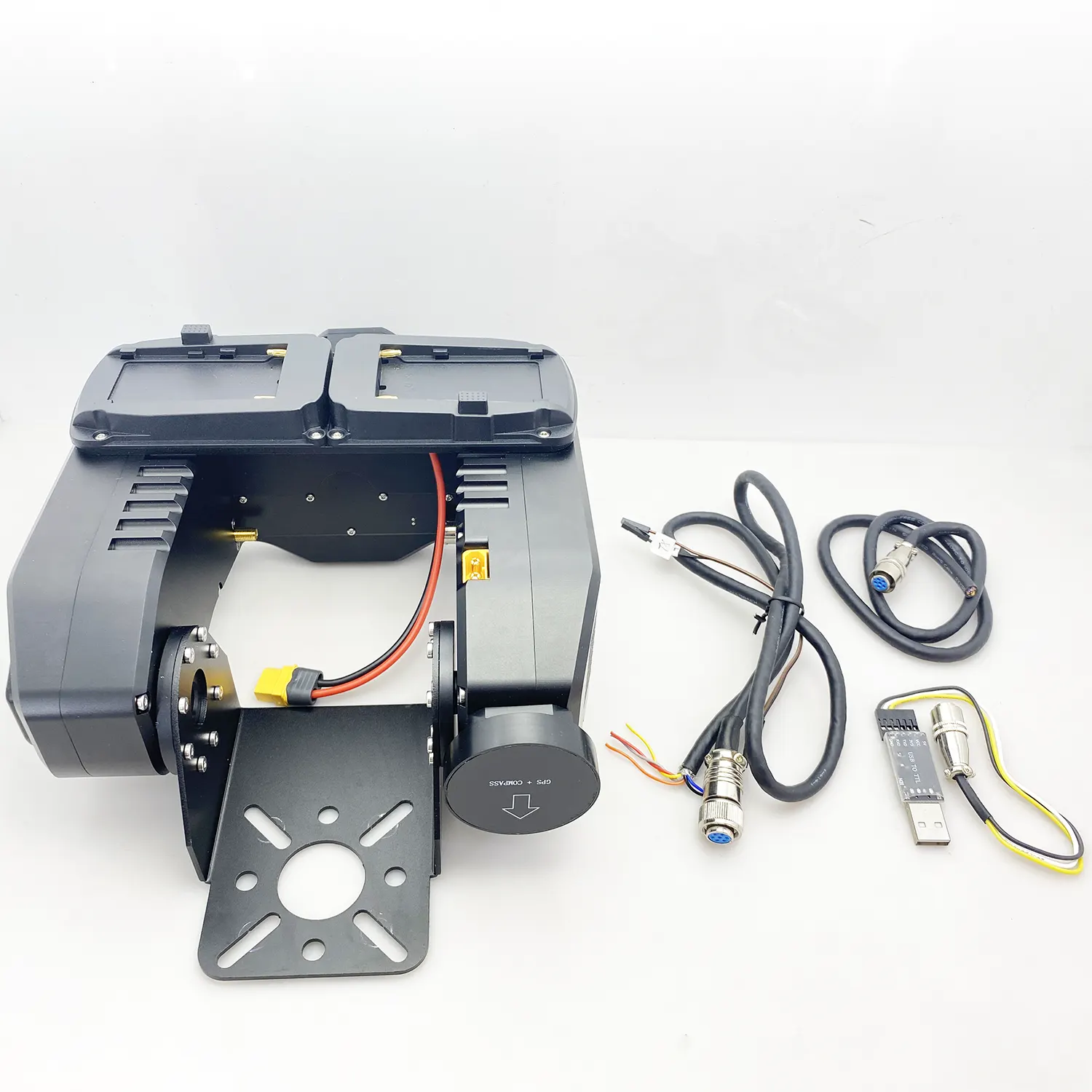

This is a gimbal for the automatic antenna tracker.

It can be installed on a tripod, and the flat-panel directional antenna is installed on this gimbal.

After installing them and setting it up, it can ensure that the flat-panel directional antenna always faces the drone. Wherever the drone is flying away or in any direction, the gimbal will source and adjust its angle according to the drone’s GPS position.

The auto-tracking antenna system will help the wireless drone video data link to get the strongest signal.

automatic antenna tracking system gimbal for flat panel directional antenna

Особеност

Smart-size and light-weight
Real-time and high-accuracy auto-tracking
Compatibility with a wide variation of flight controllers
Up to 3GHz frequency supported

Automatic tracking antenna gimbal china factory supplier — Automatic tracking antenna gimbal China factory supplier

Automatic tracking antenna gimbal for panel directional antenna

спецификация

Yaw stability enhancement accuracy	<0.5°
Pitch stability enhancement accuracy	<0.1°
Yaw rotation range	Unlimited
Pitch rotation range	-15~135°
Maximum horizontal turning rate	300°/s
Maximum vertical turning rate	60°/s
тегло	2.6килограма
Maximum torque	300 N.cm
Operational voltage	DC 12V~15V
Average power consumption	15W
Работна температура	-20~60℃
IP level	65
Working humidity	20%~70%
интерфейс	TTL serial
Supported protocol	MavLink, NMEA-0183

Често задавани въпроси

1. Does your automatic antenna tracker support 3.5G frequency?

Съжалявам, does not.

Now the automatic antenna tracker gimbal only support less 3G frequency.

Все още имам въпрос?

Please chat with us for more information.

WhatsApp Телеграма

How to install the Automatic Tracker Antenna AAT to your drone wireless Video Data transmitter and receiver

Automatic Antenna Tracking AAT Mavlink Protocol for Drone Video Transmitter Antenna Tracker

Automatic Antenna Tracker Gimbal Construct and Interface

Automatic Antenna Tracking AAT Mavlink Protocol for Drone Video Transmitter Antenna Tracker

Изтегляне

Auto Antenna Tracker_datasheet

AAT Users Manual

Относителни Ключови думи

антенный трекер для fpv

Automatic Antenna Tracker with tripod and 16db flat panel directional antenna

Automatic Antenna Tracker Gimbal Mass Produce for long-range wireless video transmitter and receiver — Automatic Antenna Tracker Gimbal Mass produces long-range wireless video transmitter and receiver

Automatic Antenna Tracker Gimbal Mass Produce for directional antenna high gain

Automatic Antenna Tracker Gimbal Mass Produce for drone uav long range best reception performance — Automatic Antenna Tracker Gimbal Mass Produce for drone uav long-range best reception performance

What accessories at a set of auto-tracking antennae (picture and quotation)

Автоматично проследяване на антена

Two Battery for Automatic Antenna Tracker

Flat panel directional antenna

390cm x 390 cm or 260cm x 260cm подробности

Tripod

Tray

Please tell us if you want to order

Antenna connector type for your wireless video data transmission

connector cable from automatic antenna tracker to the wireless video data transmitter — connector cable from the automatic antenna tracker to the wireless video data transmitter

If you just buy our automatic antenna tracker to connect your own wireless video data transmitter, then it is better to tell us what type of your antenna, the default is SMA.
