编码解码技术高清视频转网络视频流

编码解码技术高清视频转网络视频流

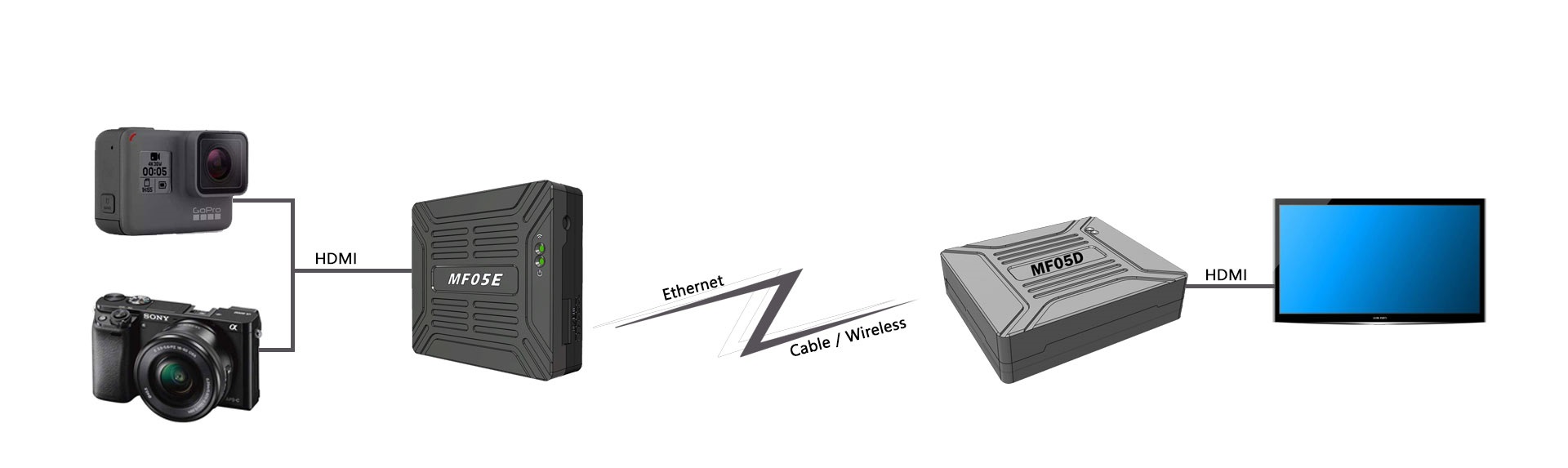

MF05采用H.265编解码技术, 可将1080P60高清视频编码为网络视频流, 方便传输. 编码后的视频流解码后可恢复为1080P60高清视频。MF05采用低延迟编解码技术，可用于传输实时高清视频. MF05包括编码模块MF05E和解码模块MF05D. MF05E可以将HDMI/SDI/AV接口输入的视频转换为H.265/H.264网络视频流. MF05D可以通过HDMI接口将H.265/H.264网络视频流解码为高清视频输出到显示器.

MF05支持H.265编解码, 可用于对码流要求较低的场景. 接口丰富，支持HDMI, 作者：, SDI, 以及其他接口.

MF05支持将高清视频转换为编码的RTSP, TCP, UDP, TS视频流, 方便有线或无线传输.

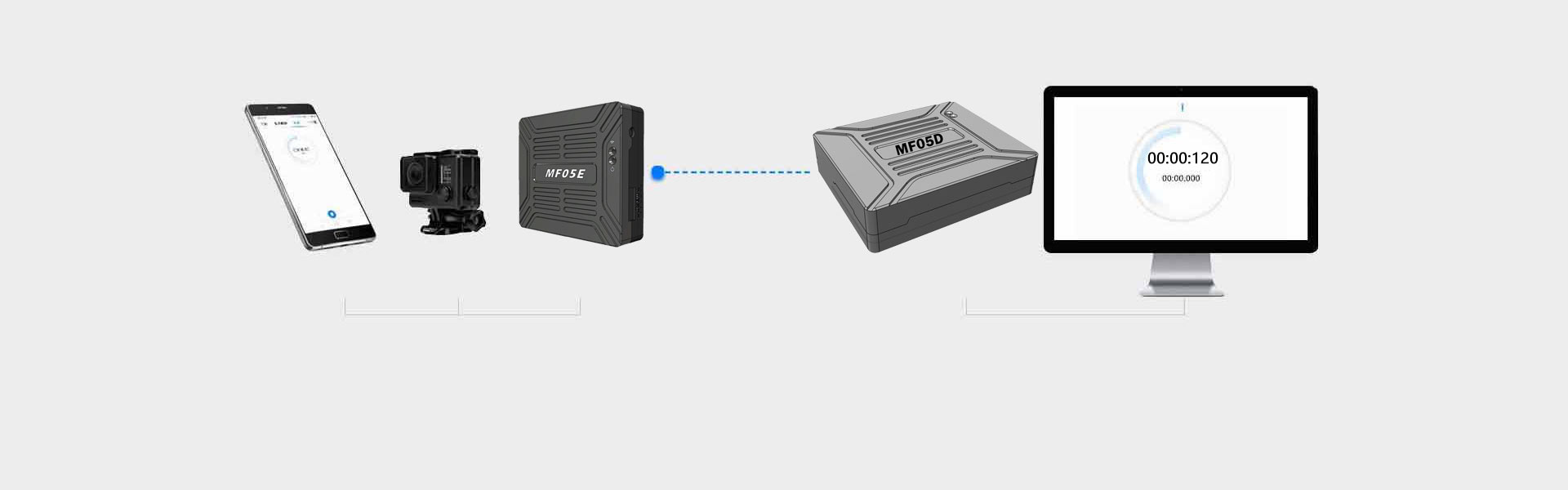

MF05采用低延迟编码算法, 高清视频延迟120ms.

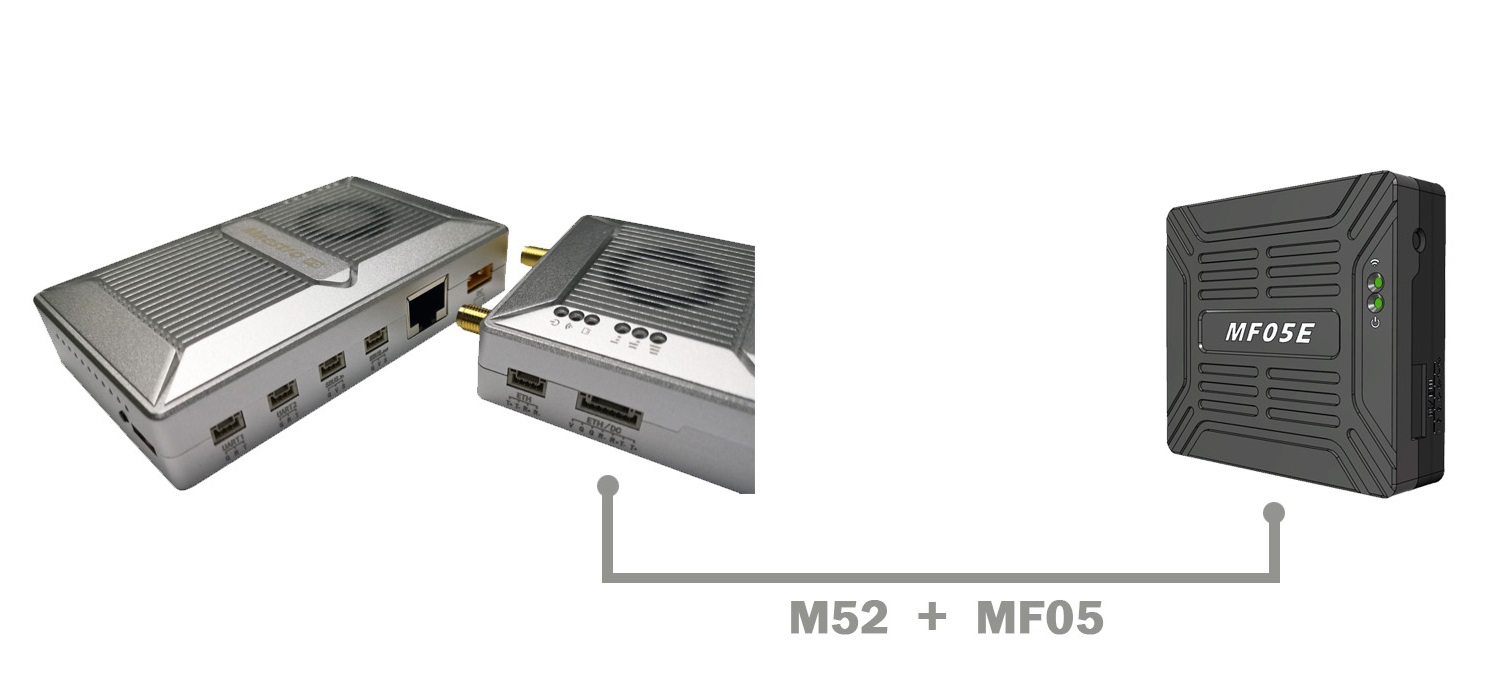

MF05与M52可快速搭建远程无线高清传输系统^*1。

MF05D支持同时解码 4 1080P高清视频频道, 支持画中画显示, 分屏显示, 并在图像上叠加 OSD 功能.^*2。
*1， 有关使用 M52 和 MF05 的说明, 请参阅产品页面或用户手册.
*2， 多通道解码需要特殊固件, 请联系销售人员.

MF05 Encoding and Decoding Technology: HD Video into Network Video Stream

该 MF05 system is a professional solution designed to convert high-definition video into network video streams using advanced encoding and decoding technologies. By adopting the H.265/HEVC codec, MF05 can efficiently compress and transmit 1080P60 HD视频, significantly reducing bandwidth usage while maintaining excellent video quality. After transmission, the encoded stream can be decoded back into full 1080P60 HD video, making it ideal for applications requiring high-definition real-time video over wired or wireless networks.

---

Low-Latency Real-Time Transmission

MF05 incorporates low-lag codec technology, ensuring minimal delay during video encoding and decoding. This makes it particularly suitable for real-time video transmission applications, 包括现场直播, 远程监控, 工业检查, and FPV operations. The system achieves a high-definition video latency of approximately 120 女士, allowing operators to view and respond to events almost instantaneously.

---

Modular System: Encoding and Decoding Units

The MF05 system consists of two main modules:

• MF05E (Encoding Module): This module converts video inputs from HDMI, SDI, or AV interfaces into H.265/H.264 network video streams. It supports multiple input formats, ensuring compatibility with a wide range of professional cameras and video sources.
• MF05D (Decoding Module): This module receives the network video streams and decodes them back into high-definition video. The output is delivered via HDMI接口, which can be connected directly to monitors or other display devices.

一起, MF05E and MF05D provide a flexible solution for converting local HD video into network streams for remote monitoring or transmission over long distances.

---

Multiple Video Interfaces and Compatibility

MF05 is designed with versatility in mind, supporting multiple input and output interfaces. It can handle HDMI, SDI, 作者：, and other common video interfaces, allowing integration with existing video equipment. This flexibility makes it ideal for scenarios where different camera types or legacy devices must coexist in a single system.

---

Network Video Streaming Capabilities

The MF05 system supports the conversion of HD video into several network video streaming protocols, 包含 实时服务提供商, TCP, UDP, and TS streams. This makes it highly compatible with both wired and wireless network infrastructures, allowing the video to be transmitted over LAN, 广域网, or wireless COFDM links with minimal effort. Users can easily integrate MF05 into remote monitoring systems, drone-based video transmission, or IP-based broadcasting setups.

---

Multi-Channel Decoding and Display

The MF05D decoding module supports simultaneous decoding of up to four 1080P HD video channels, enabling multi-camera monitoring on a single display. It includes advanced features such as:

• Picture-in-picture (PiP) 展示 for monitoring multiple streams simultaneously.
• Split-screen display to arrange multiple video feeds efficiently.
• 屏幕显示 (OSD) overlays for adding text, 徽标, or other critical information on each video channel.

This functionality allows operators to manage multiple video streams in professional control rooms or field operations efficiently. Note that multi-channel decoding requires special firmware, which can be provided by the sales team upon request.

---

Rapid Deployment with MF05 and M52

When combined with the M52 module, the MF05 system can quickly establish a remote wireless HD transmission system. This modular pairing allows users to set up reliable, low-latency HD video links without extensive configuration, 使其适合 现场活动, aerial videography, 和工业检查. Detailed instructions for combining MF05 and M52 modules are available in the product page and user manual.

---

概括

该 MF05 encoding and decoding system 是一个多才多艺的, high-performance solution for converting HD video into network streams. 支持 H.265/H.264编码, multiple interfaces (HDMI, SDI, 作者：), 低延迟传输, and multi-channel decoding, it provides a professional-grade platform for real-time remote video monitoring and transmission. Its modular design, combined with optional M52 integration, allows rapid deployment of wireless or wired HD video systems for applications ranging from broadcasting and live events to drones and industrial inspections.
