COFDM無線視訊發射機

COFDM無線視訊發射機

頻率:	138-4400兆赫 (選項)	射頻功率:	10W¯¯ (可調節的)
最大速度:	450公里/小時	視訊解析度:	標準720P ,1280*720
Video Compression Format:	H.264	尺寸:	400*230*160毫米
傳輸距離:	10-25km NLOS	尺寸:	200*130*60毫米

Detailed Product Description

Video and Two-way Communication COFDM Wireless Video Transmitter 450km/h High-speed

描述:

KP-WVT10 system is a new generation of broadcast-quality good resolution image transmission and walkie-talkie system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency(2/2.5//4/8兆赫), it has a strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and near real-time transmit high-quality image in NLOS or complicated working conditions. Especially suitable for army training, 消防救援, and marine remote control security application.

特徵:

• COFDM modulation, 穩定性好.
• H.264視訊壓縮, DVD quality
• Video and walkie-talkie transmission;
• Super long-range transmit distance.
• Works well in NLOS & fast-moving conditions
• The LCD screen shows parameters and working status.
• Dual aerials connectors.
• 低延遲

產品規格:

頻率	138-4400兆赫 (選項),but only 100MHz space for user
射頻功率	10瓦 (可調節的)
電源	DC11-14.5V/2.7A (aviation plug)
調製	COFDM 2K QPSK
射頻頻寬	2/2.5/4/8兆赫(可調節的)
FEC	1/2 2/3 3/4 7/8 (選項)
保護間隔	1/32 1/16 1/8 1/4(選項)
資料加密	AES 128/256 位元
最大速度	450公里/小時
視訊輸入	BNC/RCA
音訊輸入	standard Aviation plug, support two-way intercom
視訊壓縮格式	H.264
視訊解析度	standard 720P,1280*720
射頻介面	氮 (two aerial connectors)
工作環境	-40℃~70℃
傳輸距離	10-25KM NLOS
外殼材質 鋁	黑色的
尺寸	200*130*60毫米
重量	2.5公斤

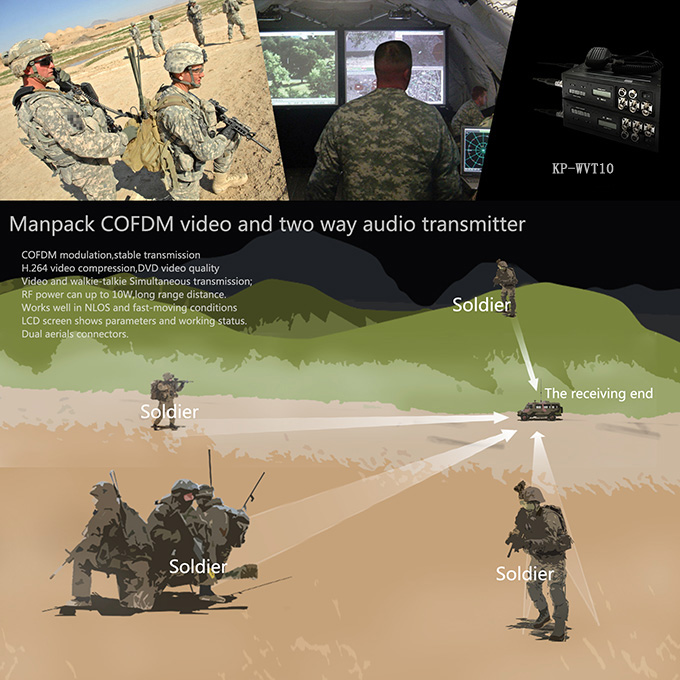

Two-way Communication Transmitter Application:
