COFDM無線視訊接收器

COFDM無線視訊接收器

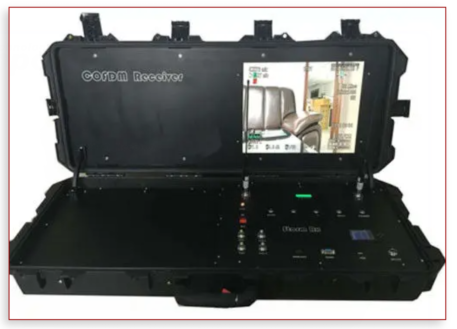

Ground Control Base Station COFDM Wireless Video Receiver with 17 Inch Monitor
詳細的產品說明
頻率: 300-4.4百萬赫 (可選的)
射頻頻寬: 2/2.5/4/8兆赫(可調節的)
記憶: Embedded DVR, Standard 120G SSD
液晶顯示器: 15 Or 17inch Samsung LCD Screen
HD Output: HD
Data Output: RS485/232
調製: COFDM
重量: 23公斤

Pelican suitcase features:
Watertight, crushproof, 和防塵
Easy open Double Throw latches
Open cell core with solid wall design – strong, 輕的
O-ring seal
Automatic Pressure Equalization Valve
Comfortable rubber over-molded handle
Stainless steel hardware and padlock protectors
2 level Pick N Pluck™ with convoluted lid foam
Personalized nameplate service available
Lifetime Guarantee of Excellence
Receiver features:
COFDM調製
MPEG-4/H.264 video compression
全高清分辨率, very sharp image
Modular design and highly integrated
支持 1 channel av signals receiving at the same time.
Dual aerial designed for better signal receive
Built-in with DVR. Standard 17inch Samsung LCD screen
The left space for the PC is placed for GPS tracking
Storage method: Insert with 120G SSD or by USB recording
Can control the operating system by using an external mouse.

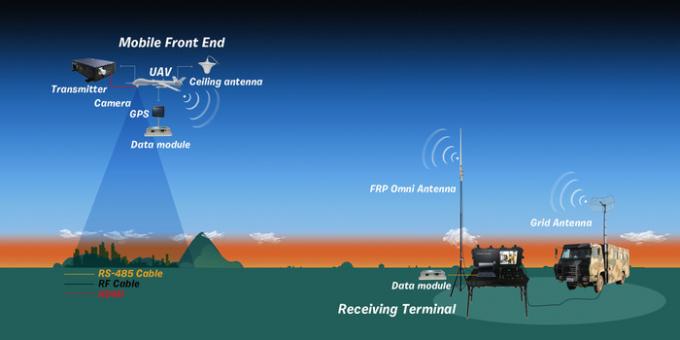

Work well under fast-moving signal receiving and support NLOS transmission
If add RJ-45 ethernet output that can support remote control, dynamic IP and can realize IE browsing.
Extra USB insert easy to your hard disk to copy the video
Tech specifications:
Frequency 300-4.4GHz (可選的)
RF bandwidth 2/2.5/4/8MHz(可調節的)
Memory embedded DVR, standard 120G SSD
液晶顯示器 15 or 17inch Samsung LCD screen
射頻電平輸入-92dBm~-20dBm / -105dBm~-20dBm
射頻接口 N(F)
AV output BNC
Data output RS485/232
HD output HD
USB output For external memory use
調製COFDM
Power supply AC220V / DC12V
星座QPSK,16QAM,
DEC 1/2,2/3,3/4,5/6,7/8
保護間隔 1/32,1/16,1/8,1/4
影片格式 1 line PAL/NTSC video signal (auto-adaptation)
Video Decoding H.264/ MPEG-4

解決 1920*1080 @60i/59i

Audio Output stereo left and right channel

Data encryption AES 128/256bits

Work environment -30~70° C

Built-in Battery 30000mA

Size 927*355*152mm

Weight 23kg
