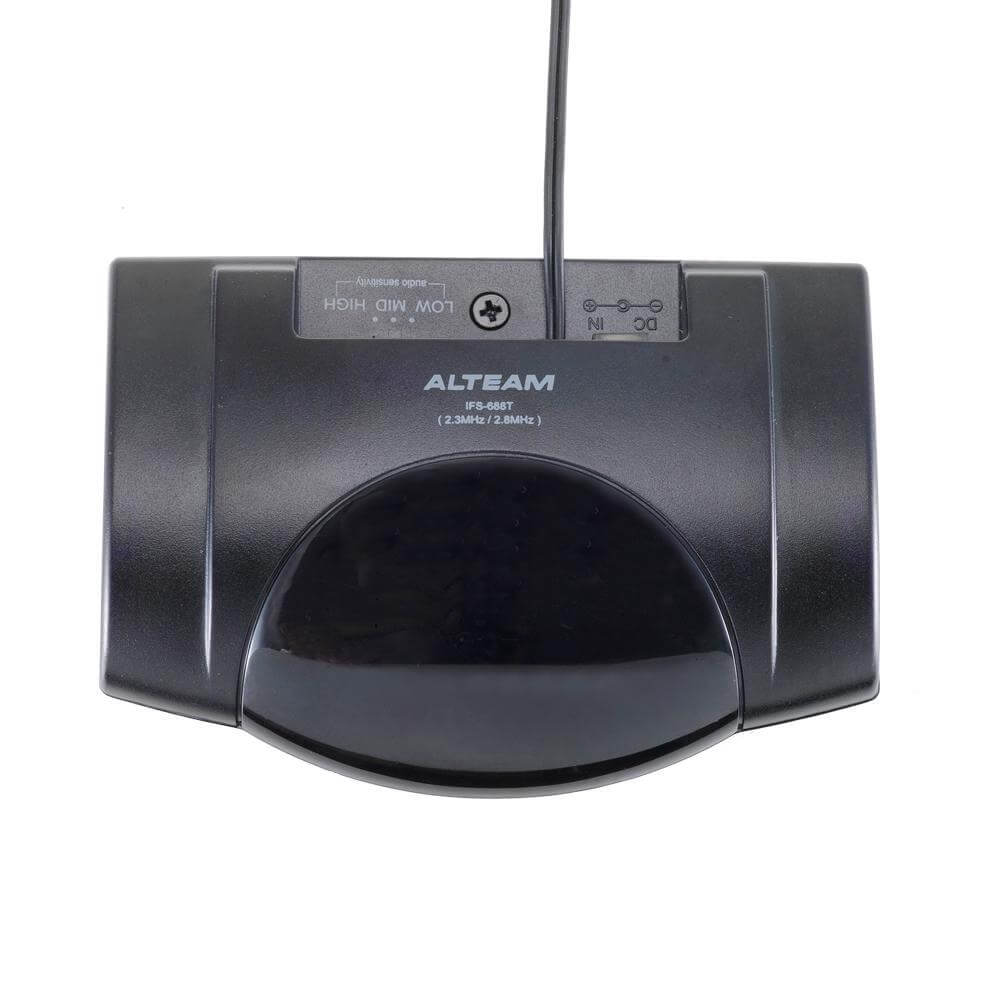

IFS-688T Car Music Audio FM Frequency Wireless Infrared IR Transmitter
IFS-688T Car Music Audio FM Frequency Wireless Infrared IR Transmitter
Product specifications:
- Works with any 3.5mm jack devices
- Simple connection and start using, no program installation required
Technical specifications:
| Infrared Wavelength | 850nm |
| Effective Distance | 10 미터 (똑바로) |
| 왜곡 | 0.20% |
| 조정 | ± 75KHz |
| Carrier Frequency | L-CH 2.3MHz R-CH 2.3MHz |
| 주파수 응답 | 20헤르츠 – 20KHz |
| Power Requirement | 12V DC/ 200mA |
| Power Input Tolerance | 11V to 13V |
| Audio Input Range | 0.1V to 5V (RMS) |
| S/N ratio ≥ 60dB Power Consumption | 1.0W |
| Product Weight | Approx 85g |
