ماژول مدولاتور-دمودولاتور DVB-T2 ASI با پخش جریان خروجی پخش جریانی اترنت UDP MPEG-TS
فهرست مطالب

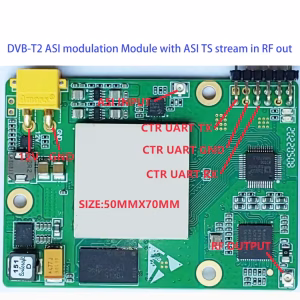

DVB-T2 ASI modulation Module with ASI TS stream input and RF output
Broadcast with precision using our DVB-T2 modulator with ASI input.را
Seamless ASI to DVB-T2 modulation for professional broadcasting.را
High-quality DVB-T2 transmission starts with reliable ASI input.
DVB-T2 ASI Module Interface, ابعاد, Signal Definitions
Control serial port level: RS232 level, Module controls serial port, منبع تغذیه, data serial port
DVB-T2 ASI modulator Module electrical characteristics
DC power supply, voltage 10V~20V
توصیه: The supply voltage is 12V, and the current is less than 800mA
DVB-T2 ASI modulator Module Technical parameters
توان خروجی RF -15 +3 DBM به (less than 1GHz, greater than 1G, requires actual measurement).
Shoulder not less than 50dB
DVB-T2 ASI modulator Module parameters and configuration software
The software configuration interface is shown below
DVB-T2 Configuration Assistant software Download
https://drive.google.com/file/d/1MrixePytV5qzUFGW4KTATuYBjvnxq3pW/view?usp=drive_link
DVB-T2 configurable parameters
پهنای باند: 5م, 6م, 7م, 8م.
FFT: 1K, 2K, 4K, 8K, 16K, 32K
Guard: 1/4, 1/8, 1/16, 1/32
Carrier Mode: عادی
TS Mode: NM, HEM
Pilot: PP1
Carrier Frequency: 340مگاهرتز (100Mhz~2.4GMhz optional)
PLP
Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
LDPC: 16K, 64K
تلفیق: QPSK, 16QAM, 64QAM, 256QAM
Rotation: عادی, Rotated

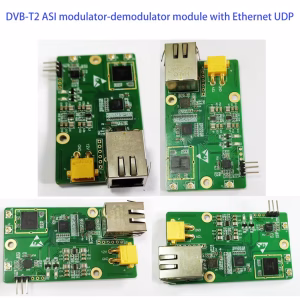

DVB-T2 ASI Demodulation Module with RJ45 ethernet UDP output
DVB-T2 ASI Demodulation Module Feature
- Modular. Consists of a mainboard and a control panel.
- مصرف برق کم. 12V, 180mA
- حساسیت دریافت بالا. Can reach -106dBm
- Dual antenna diversity reception. Bandwidth from 5MHz to 8MHz, step 1M, frequency 100MHz to 860MHz.
- ASI TS stream output
DVB-T2 ASI Demodulation Module function
- Parameters of the communication control serial port
- 8-بیت داده بیت
- 1-bit stop bit
- حتی برابری
- نرخ باود: 19200
- 47 channels can be saved
Module interface, اندازه, signal definition
اندازه تخته اصلی: 40mmX70mm
پرسش و پاسخ
س: Do you have a module for IP input ASI output?
آ: خیر.
س: How can I send commands through the serial port to switch frequencies?
آ: بله, please edit the serial port command according to the following document.
EW300 dual tuner demodulation module technical description
س: Does the RX demodulator board support DVB-T and 900Mhz?
آ: The RX demodulator boards only support DVB-T2 and Max 860Mhz, not cover 900Mhz.
نسبی
ویدئو
About DVB-T2 ASI modulator and demodulator products
DVB-T2 Modulation Board (with ASI Input) and Demodulation Board (with ASI Output): Functions and Features
1. DVB-T2 Modulation Board (ASI Input)
تابع
- Converts ASI input signals (typically MPEG-TS streams) into DVB-T2-compliant RF signals for broadcast transmission via antennas or cable networks.
- Applies advanced DVB-T2 encoding and modulation techniques (به عنوان مثال, LDPC/BCH error correction, QPSK/16-QAM/256-QAM modulation) to enhance spectrum efficiency and robustness.
ویژگی های کلیدی
- ASI Interface: Directly connects to ASI-based devices like encoders or multiplexers.
- Flexible Configuration: Supports adjustable parameters (به عنوان مثال, FFT size, فاصله نگهبانی, pilot patterns) to optimize performance for varying environments.
- High Efficiency: Utilizes DVB-T2 advancements (به عنوان مثال, MISO, rotated constellations) to maximize data capacity and coverage.
- زمان تاخیر کم: Designed for real-time applications such as live broadcasting.
برنامه های کاربردی
- TV broadcast transmitters, IPTV head ends, satellite uplink stations.
2. DVB-T2 Demodulation Board (ASI Output)
تابع
- Receives and demodulates DVB-T2 RF signals, restoring them to ASI-formatted MPEG-TS streams.
- Corrects transmission errors using DVB-T2’s LDPC+BCH error-correction coding.
ویژگی های کلیدی
- حساسیت بالا: Stable reception in low signal-to-noise (SNR) محیط ها, ideal for weak signal areas.
- Robust Against Interference: Mitigates multipath effects via OFDM and dynamic channel equalization.
- ASI Output: Delivers standard ASI streams to downstream devices (به عنوان مثال, decoders, recording systems).
- Real-Time Monitoring: Provides diagnostics (به عنوان مثال, قدرت سیگنال, bit error rate) for network management.
برنامه های کاربردی
- TV receiver stations, cable head ends, mobile reception systems (e.g.,车载TV).
3. Common Features
- DVB-T2 Compliance: Ensures global interoperability with standardized equipment.
- قابلیت اطمینان بالا: Industrial-grade design for 24/7 عملیات.
- Network Support: Compatible with Single Frequency Networks (SFN) and Multi-Frequency Networks (MFN).
4. موارد استفاده
- پخش: Terrestrial digital TV, mobile TV (به عنوان مثال, public transport systems).
- Professional Systems: ارتباطات اضطراری, live event streaming, distance learning.
- Data Services: IP data broadcasting (به عنوان مثال, OTA software updates, ad insertion).
خلاصه
- Modulation Board: Acts as the فرستنده, converting ASI streams into robust RF signals for distribution.
- Demodulation Board: Acts as the گیرنده, recovering ASI streams from RF signals even in challenging conditions.
- با هم, they form a complete DVB-T2 transmission chain, enabling high-capacity, high-reliability digital broadcasting.
Advanced DVB-T2 decoder designed for seamless ASI signal integration.را
Robust DVB-T2 receiver ensuring flawless ASI output transmission.
