COFDM modulation digital transmitter-receiver with 5W output power for portable purposes

COFDM Modulation UAV Video Link 550MHz Wireless UAV COFDM Transmitter Low-latency
detaillierte Produktbeschreibung
Stromversorgung: DC12V/2.3A
HF-Frequenz: 555MHz (kann 300–3300 MHz angepasst werden)
HF-Bandbreite: 1/2/4/8MHz
HF-Leistung: 5W (37dBm)
Modulation: FDD-COFDM 2K
Gewicht: 3kg

Beschreibung:

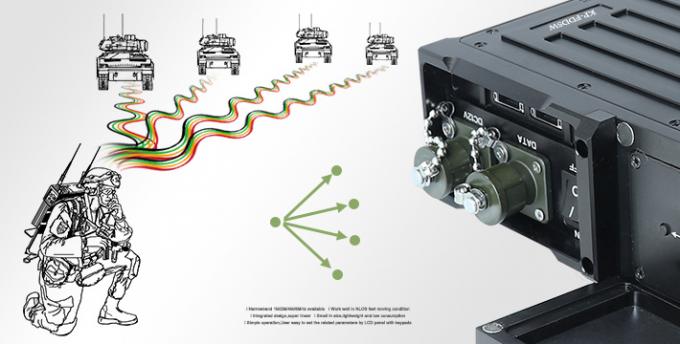

It is a new COFDM modulation digital transmitter-receiver with 5W output power for portable purposes. Implement super narrowband (1MHz),Geringe Latenz, and high-sensitivity capacity that is ideal for long-distance transmission and non-line-of-sight (NLOS) applications. With the highly integrated embedded design,super-linear digital pre-distortion RF design and network, Modulation, und Demodulation, full-band RF output All-in-One help you complete the design of long-distance wireless links more conveniently and quickly. It is mainly used for multi-channel video transmission required with RS232 signals, unmanned control systems, and intelligent control system
Eigenschaften:
◆ 5W RF power output
◆ Low latency and great data send from end to end
◆ Provides a great transfer rate for uplink and downlink
◆ Transparent IP ethernet and serial data telecommunication in sync
◆ Dual-frequency is ideal for IP solution long-distance required
◆ Dynamic AES encryption 128bits
◆ Narrowband 1M/2M/4M/8MHz available
◆ Work well in NLOS fast-moving condition

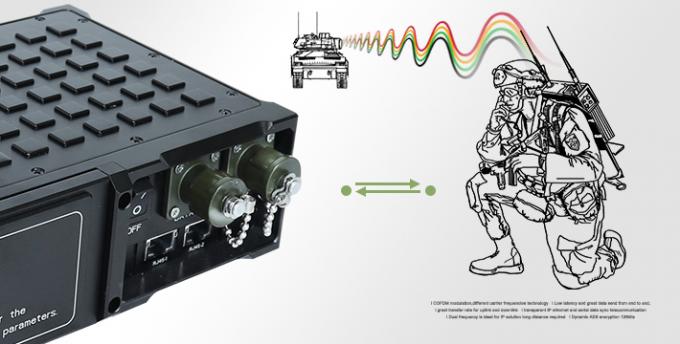

◆ Bi-directional video/data wireless communication
◆ Small in size, Leicht, und geringer Verbrauch
◆ Easy operation and deployment

Spezifikation:
Modulation COFDM 2K
Working voltage DC 11-14V
Working current 2.7A_12V
TX output frequency 555MHz (300-2500MHz selection)
RX input frequency 595MHz (300-2500MHz selection)
RF bandwidth 1/2/4/8MHz
Output power 5W
Encryption/decryption mode AES128 bits
Transfer rate 2×30 Mbit/s uplink and downlink

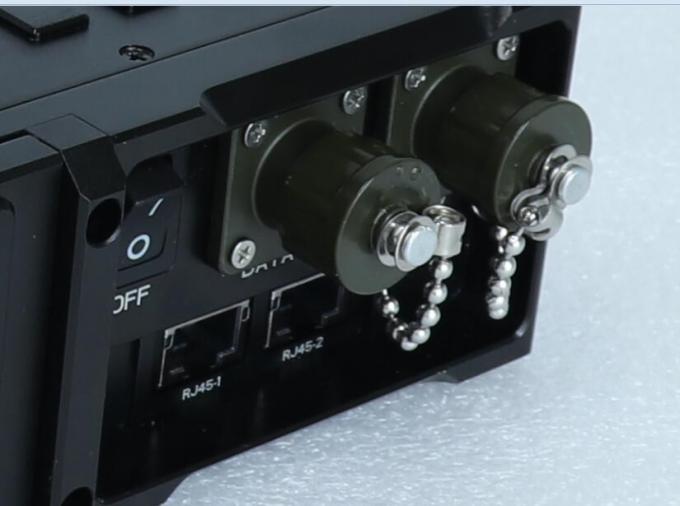

RF connector N-type *2
Ethernet Standard RJ45 port *2
Serial port RS232/RS485 serial port,115200Bps maximal
LCD panel with keypad Easy to set the related parameters
Dimension20013060Millimeter (Estimated value)
Weight 3kg
