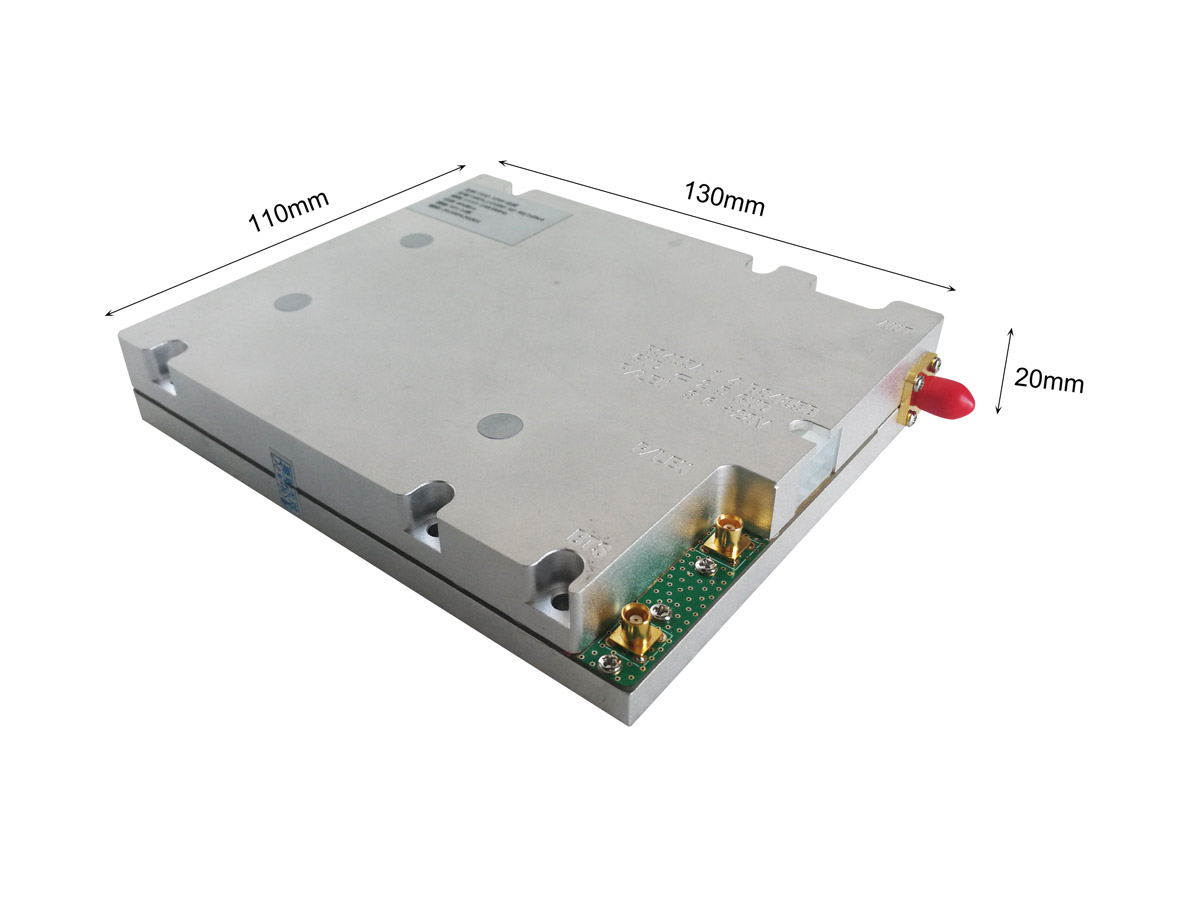

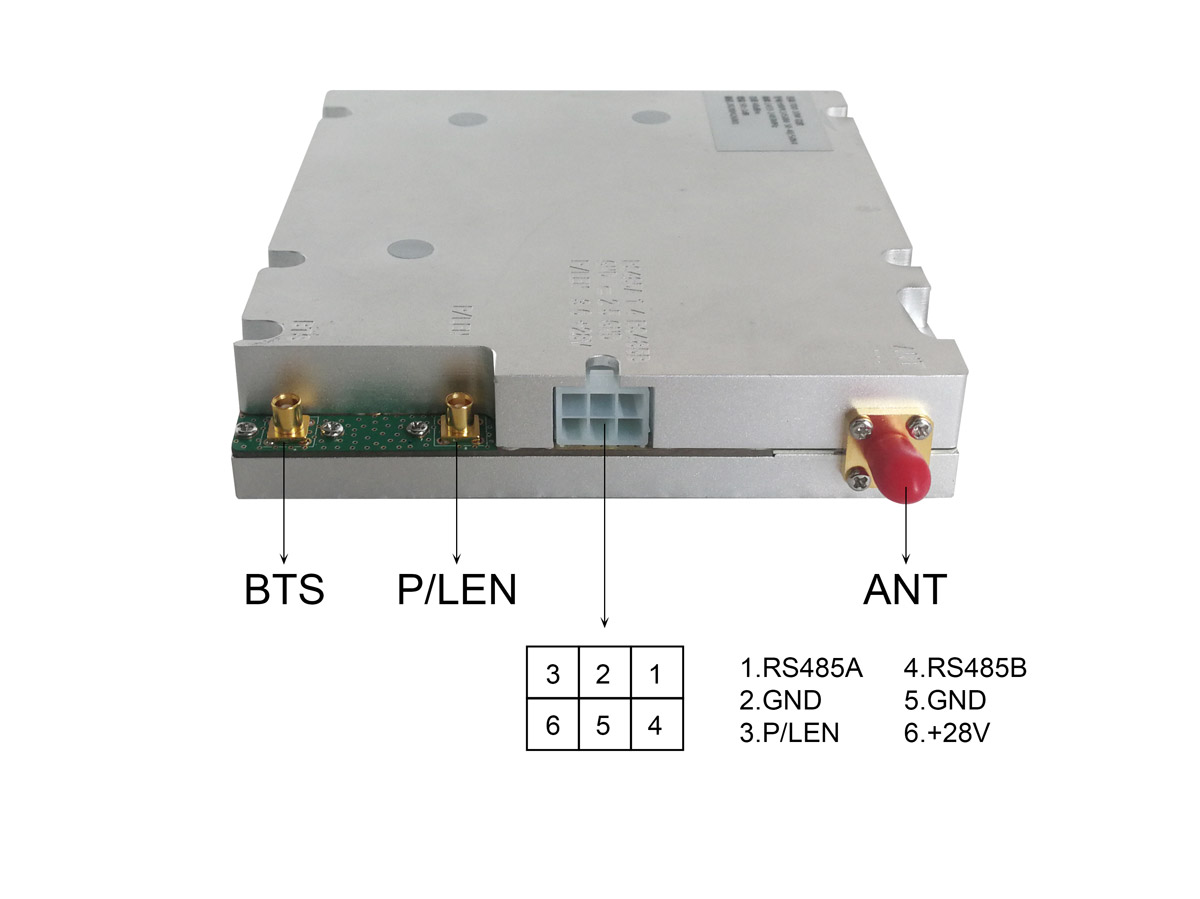

5W 10W Power Amplifier

5W & 10W Power Amplifier

5W 10W Power Amplifier
5W 10W Power Amplifier
5W 10W Power Amplifier
5W 10W Power Amplifier
ArtikelTechnische Parameter
Work Frequency1433-1483MHz
Work Bandwidth50MHz
Ausgangsleistung37/40±1dBm
Gewinnen45±1dB
Gain Adjustment Range≥20dB
Gain Adjustment Step1dB
Gain Adjustment Error≤±1.5dB

In-band Fluctuation≤2.0dB
ACPR≤-40dBc
Error Vector Magnitude
(EVM)		≤3%
Out-of-band Spurious9kHz～1GHz：≤-36dBm/30kHz
1GHz～12.75GHz：≤30dBm/30KHz
Anti-bumout Of Amplifier Output Port

Under rated power output and ouput ports open status in TTD working mode, it would not damage the module and the indicator would not get worse within 10 minutes continuous work.


I/O Standing Wave Ratio≤1.5
Work Frequency1433-1483MHz
Gewinnen20±1dB
Gain Adjustment Range≥20dB
Gain Adjustment Step1dB
Gain Adjustment Error≤±1dB
In-band Fluctuation≤2.0dB
Rauschzahl≤3.5dB
I/O Standing Wave Ratio≤1.5
Max input undamaged level0dBm
Work VoltageDC+28V
Work Current≤2.0A/2.8A
Amplifier Power Supply RF Response
（Power Amplifier on / aus, LNA on / off）		1. Rising Edge+ Rising Edge Delay: ≤2.5us;(Rising time: aus 10% of the max to 90% of the max;)
2. Falling Edge+ Falling Edge Delay: ≤2.5us; (Falling time: aus 90% of the max to 10% of the max)
Arbeitstemperatur-25～+55℃
Relative Humidity(RH)5%～95%，non-condensing
Lagertemperatur-40~+65℃
