30KM Drones Video And Bi-directional Data Radio Links

30KM Drones Video And Bi-directional Data Radio Links

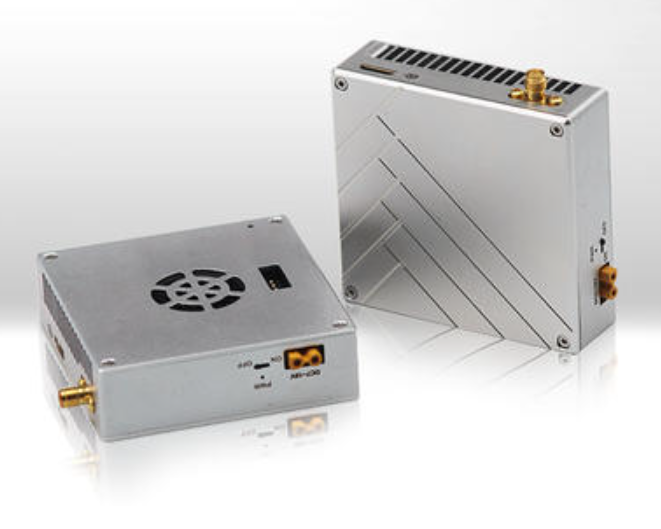

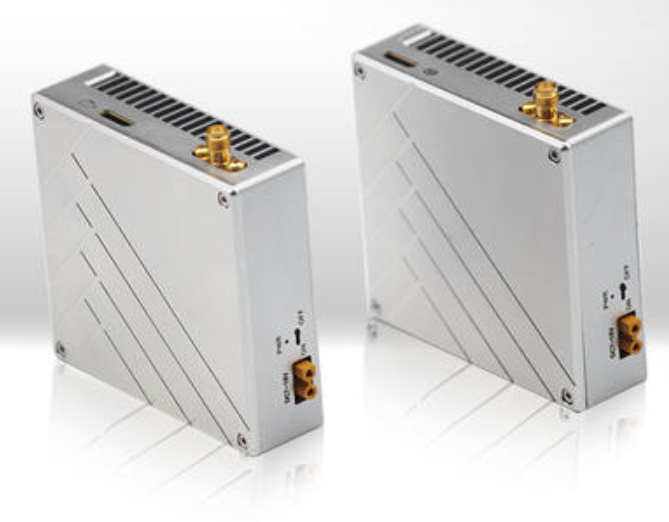

Der Mini-Transceiver ist ein neu entwickeltes TDD-COFDM wireless communication equipment based on the military standards for drones. It supports 2.402-2.478Ghz adjustable by software. With an HDMI interface, one Ethernet interface, and one Serial port The system provide superior performance in 35km long range HD video, Ethernet, and bi-directional data transmission with 50ms latency.

➢ Video compression H.264 technology + H.265-Algorithmen

➢ Dual Built-in encoder/decoder

➢ HDMI and IP Camera interface

➢ HD video and Telemetry receiver

➢ Built to enable controlling and transmitting

➢ Drone Communication + Video Processing

➢ Bi-Directional Data Link Supporting Simultaneous HDMI and Digital Video Streams

➢ Ethernet interface supports TCP/UDP

➢ Latency 50ms

➢ Video output support HDMI and IP to PC by Ethernet cable

➢ AES Encryption

➢ Bandwidth 4Mhz

➢ Sensitivity -100dbm@4Mhz

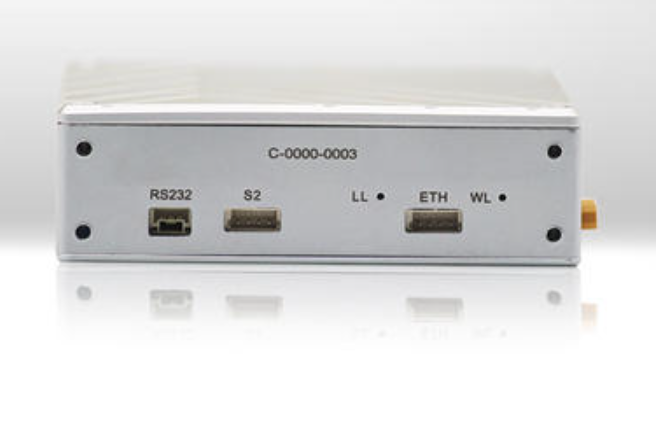

➢ The serial port supports Telemetry/mavlink/RS232/TTL

➢ The serial port supports APM, Pixhawk 2.1, Pixhack V3, Pixhawk 2 & Pixhawk4

➢ Leitfähige Eloxierungsfahrzeuge verbessern die Integrität von HF-Signalen

➢ Arbeitstemperatur: -40℃ – +85℃

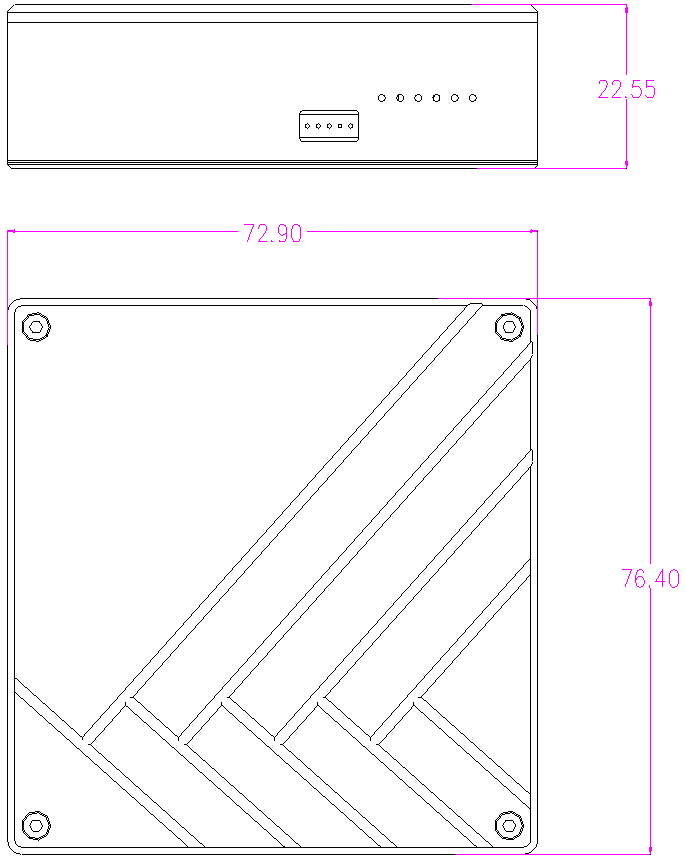

➢ Overall Dimension: 74.6×72.9×22.5Millimeter

➢ Weight: 146G

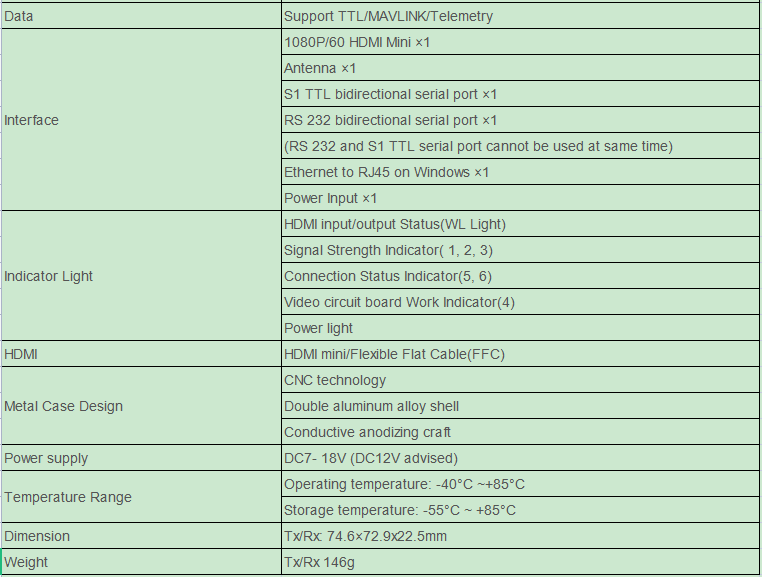

Technische Daten
