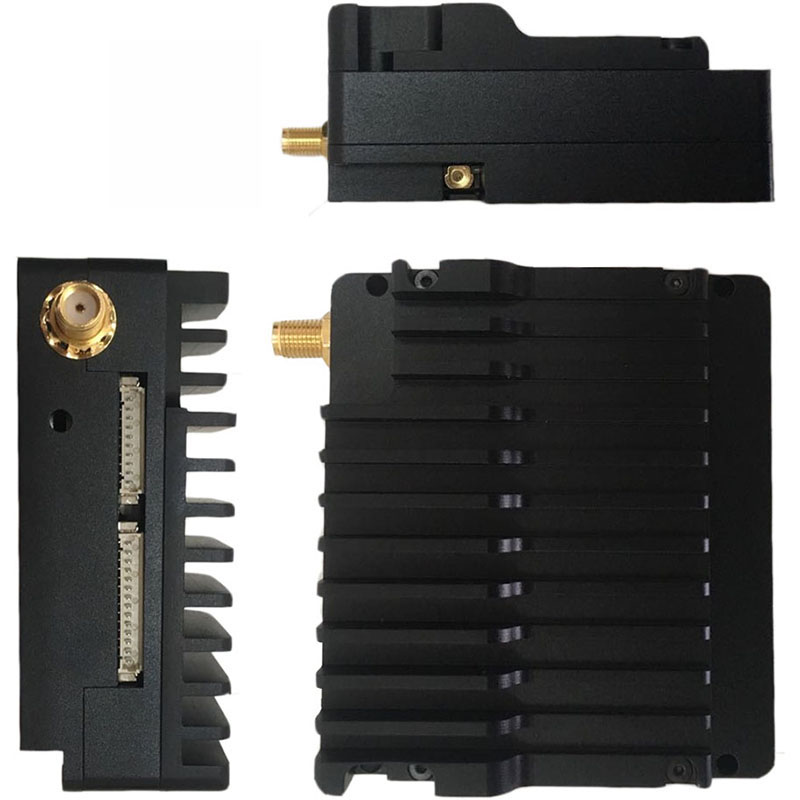

UAV MESH MODULE (IP MESH 580MHZ)
UAV MESH MODULE
| 상표명 | Vcan |
| 원산지 | 심천, 중국 |
| 네트워킹 모드 | 망사 (adhoc) |
| 회수 | 570~590Mhz |
| 송신 전력 | 29dBm의 |
| 밴드 폭 | 5/10/20메가 헤르츠 |
| Hop count | 10 |
| 암호화 | AES 256 |
| 날짜 비율 | 40Mbps의 |
| 지연 시간 | 2MS |
| 감광도 | -97dBm의 |
| 전압 | DC 12~48V |
| 안테나 | 1 dBi로 |
| 직렬 포트 | TTL UART |
| Ambient Temp | -20~65 C |
| 치수 | 74mm×66mm×19mm |
| 무게 | 0.25킬로그램 |
NexFi MF series UAV ad-hoc network module is a set of private network communication system realized by wireless broadband ad-hoc network technology, which can provide transparent transmission channel for video, 목소리, data and other ip-based multimedia services.No need to rely on basic communication infrastructures, no need for manual configuration, can realize the rapid establishment of communication network anytime and anywhere.This product has the characteristics of small size, light weight and easy to carry, which is convenient for carrying on UAV or other systems.After the power is on, it can quickly set up network with other nodes automatically, expand the area coverage of the existing network, and realize the integrated communication between air and ground.The module is equipped with network port and serial port, which can connect control signal and camera respectively. The collected image or sensor data can be returned through the link of ad-hoc network in real time.It can be used to deploy the field network rapidly under complex landform conditions, and strengthen the communication ability under mobile scenarios by taking advantage of the characteristics of decentralize, multi-hop connection and dynamic networking.
