DVB-T2100HD Car DVB-T MPEG4 H.264 2 チューナー

DVB-T2100HD Car DVB-T MPEG4 H.264 2 tuner DVB-T2100S

(some countries have adopted or upgraded the DVB-T2 standard, please choose DVB-T and DVB-T2 both support models)

仕様

1. 入力周波数: VHF 177.5MHz～226.5MHz, UHF 474MHz～858MHz
2. 変調する: QPSK/16 – QAM/64-QAM
3. デコード規格: MPEC4,MPEG2,MP@ML,MP@HL,H.264/AVC
4. オーディオデコード規格: MPEG-1, MPEG-2 layer and 2, MPEG-4, HE-AAC
5. 3 Way Video Output, you can also custom-tailor 4-way video output, 出力抵抗: 75-ohm Output Voltage: 1.0 /_ 2.0mVp-p Audio output: 2VP-P
6. Support Wide voltage Supply: DC 8V~26V, the power only 6 ワット.

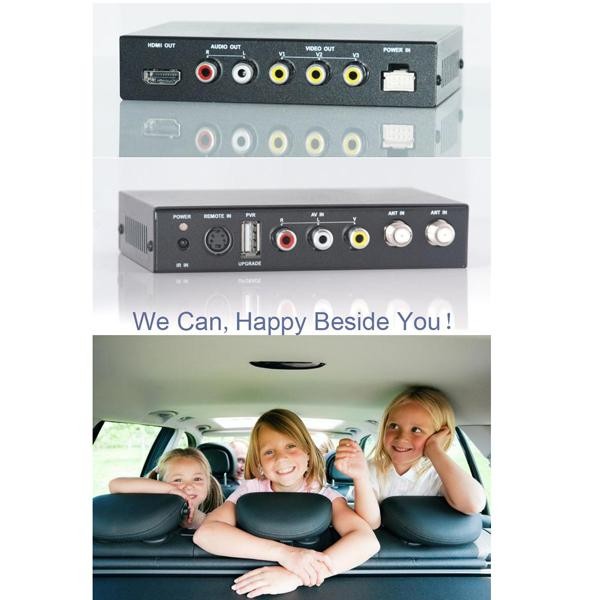

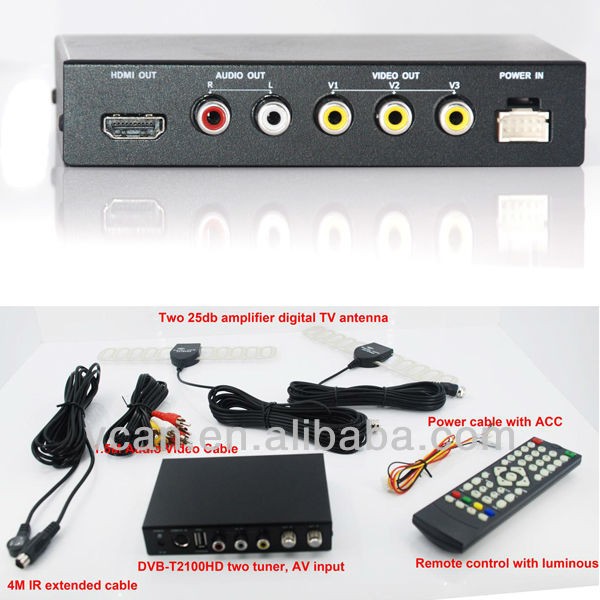

7. 接続端子: External antenna input jack, Quadrate car power input jack, Audio/Video input jack, Audio/Video output jack, External remote control cord jack, USBアップグレードソケット, High-definition (HD) 出力インターフェース.

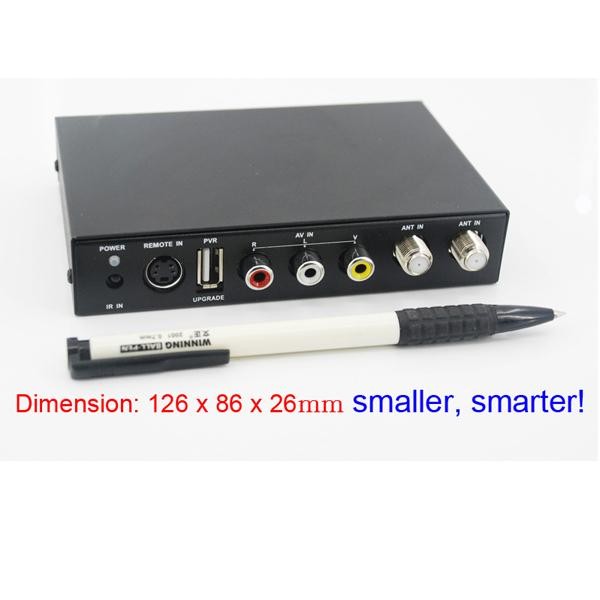

8. 外形寸法: 126mmx86mm x 26mm
9. 使用温度: -5 ～40度
10. 保管温度: -20～60度

DVB-T2100H USB support below multimedia player file:

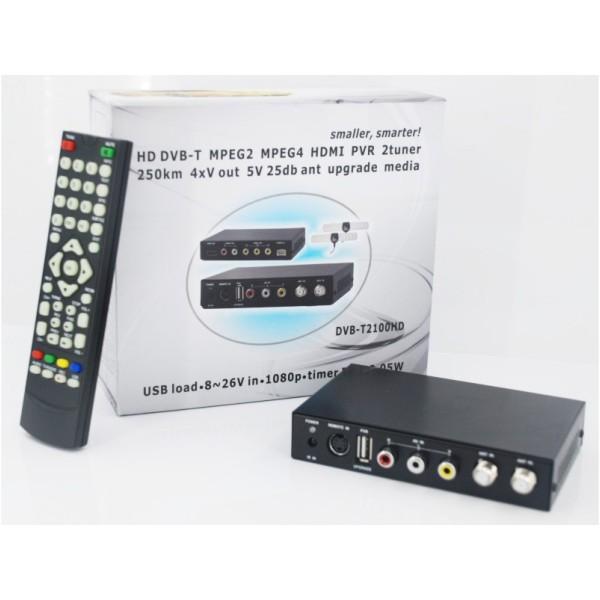

VCAN DVB-T2100HD Car DVB-T box MPEG4 H.264 two tuners, PVR USB Record function for automobile TV receiver.

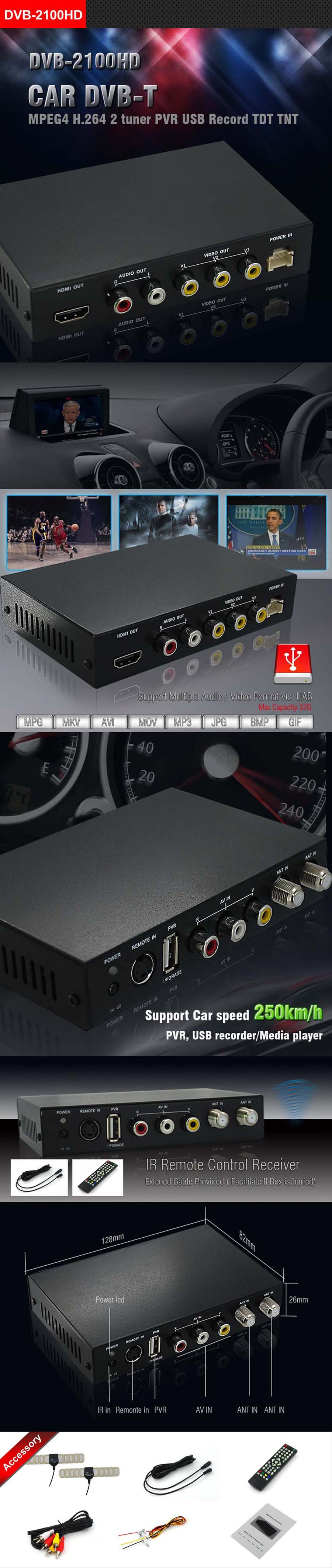

Auto TDT TNT HD DVB-T Receiver with MPEG4/H.264 with two tuners, one Video / RL Audio Input, three Video Output, and USB Recorder.

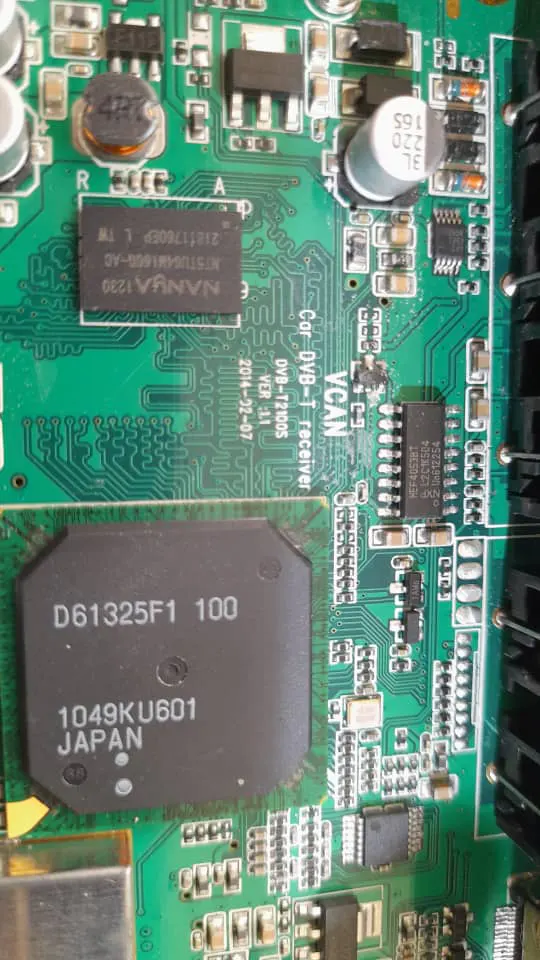

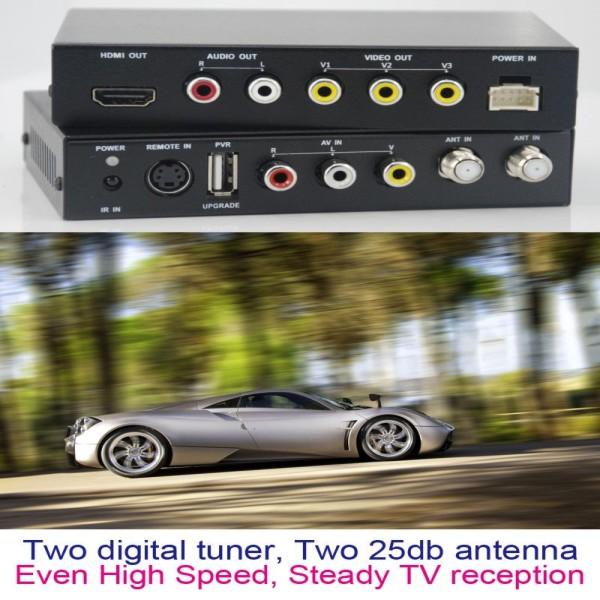

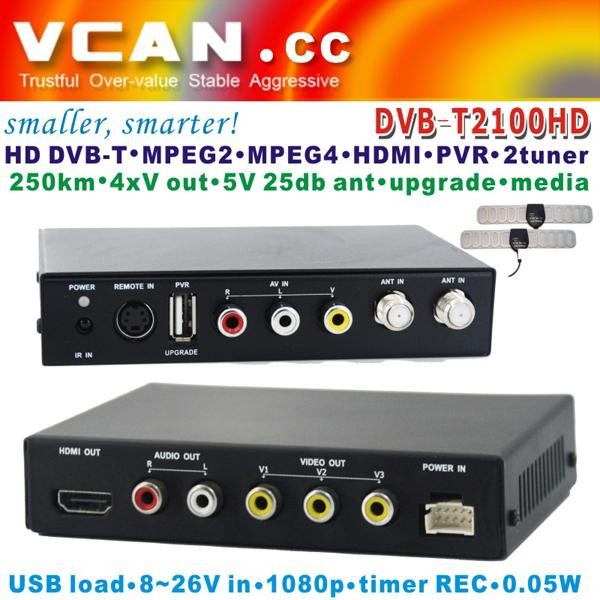

VCAN DVB-T2100HD is an automobile HD SD DVB-T digital TV receiver with PVR record function, support up to 250 km/hour, Japan NEC technology, and Two France Dibcom Tuner and Korean Samsung flash inside for high speed and good TV reception performance, And two active amplifier 25DB antennas. DVB-T2100HD has HD and three RCA video outputs for more monitors.

1. Support True MPEG2, MPEG4 HE-ACC, H.264 Video Decode
2. Available to upgrade/reload the firmware via USB slot (We Can Reload technology is for new software from USB)
3. USB Record / PVR /Multi-media play function (Timer REC and Multi-period time to PVR )
4. One video and Two audio input for AUX, DVD or GPS, 等
5. The standard for DVB-T, MPEG2, and MPEG4
6. ビットレート情報の自動検索と更新
7. Storage for 2000pcs channel
8. 電源オフ後のメモリー機能

ギャラリー

ユーザーズマニュアル

DVB-T2100H_users_manual

1. Do you have a program file for burning into the chipset W25Q32? It seems that no firmware inside now. The light is green always.

感謝.

Now I have only the upgrade firmware, no program file for burning into the chipset. I will ask our software engineer.
