Does your RV1126 DEV board support two USB cameras?
My camera is HD (1920*1080) with 60FPS and IR camera (200*200) で 60, 120, そして 200 FPS.
A: RV1126 maximum support 4K 30FPS, we don’t test your USB camera; you should send us your real camera to test on our RV1126 Dev board. We also need to test or modify the firmware to support your USB camera’s driver.

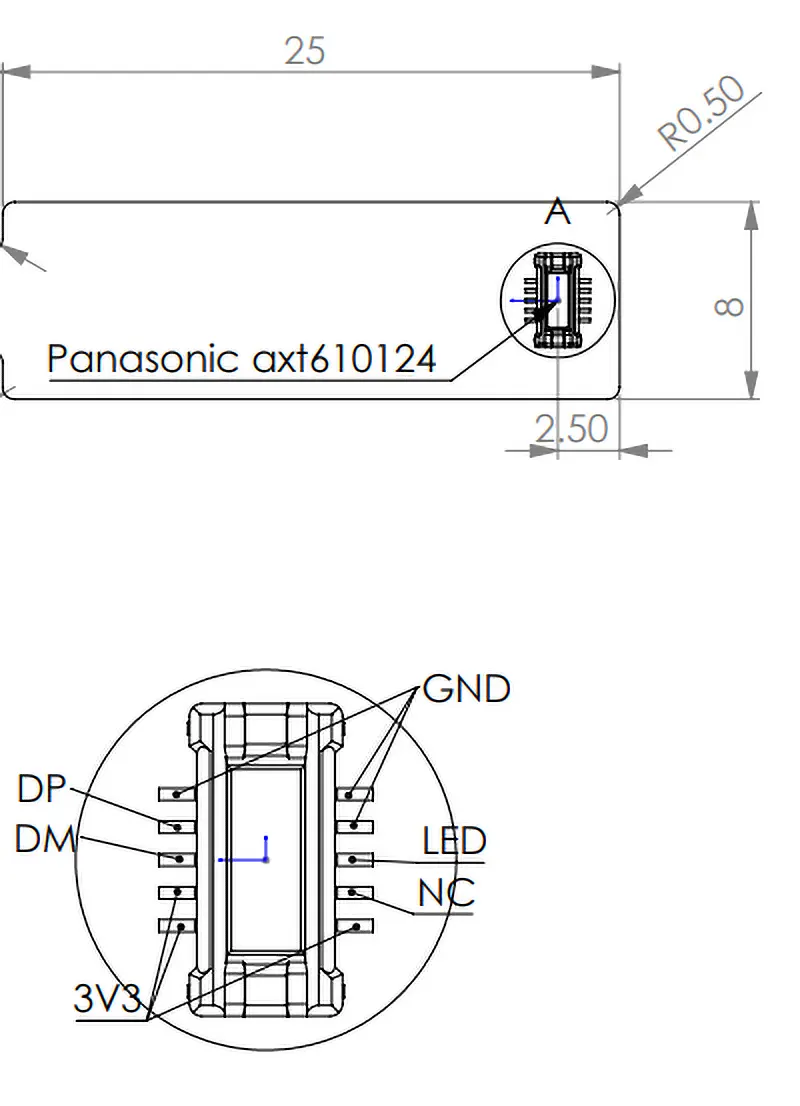

Please give me the connection definition of this OV6211 camera.

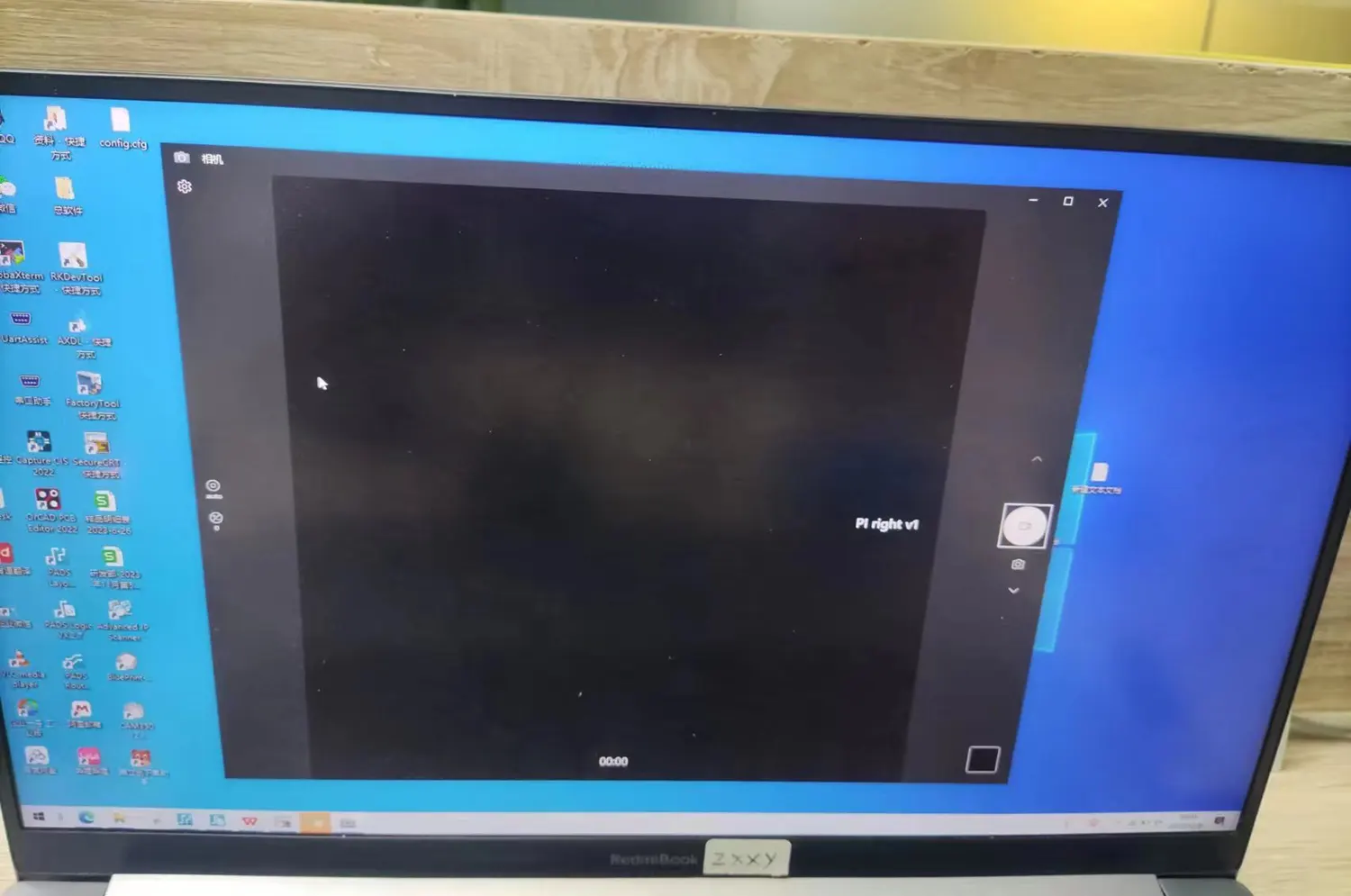

Why the OV6211 IR camera is black and white only?
はい.

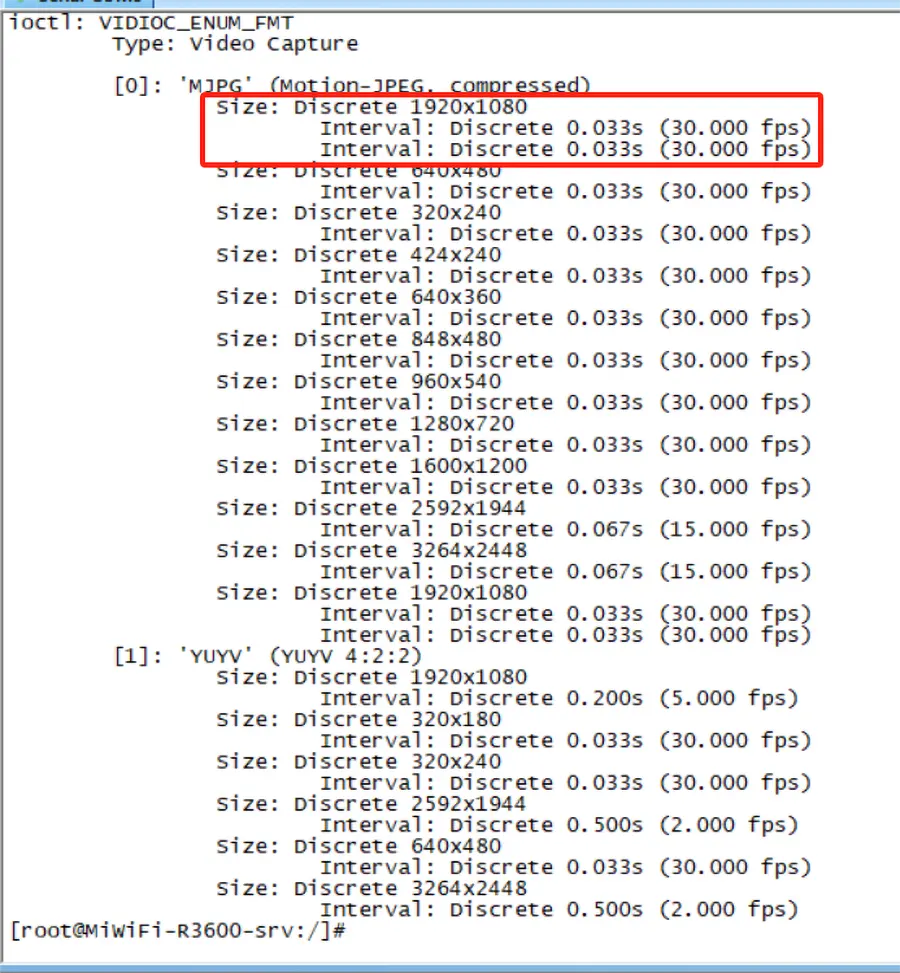

Does the OV6211 IR camera support 200*200 そして 60、120、200 FPS?
The ov6211 IR camera supports the resolution 192×192, and 30~200
フレーム.
The current resolution of IMX179 is 1920×1080, and the maximum number of frames supported is 30fps.
What is the RTSP address of the RV1126 development department that supports two USB cameras?
The VLC streaming address:
The first camera stream address is
rtsp://192.168.31.88:554/ライブ/メインストリーム
The second camera’s streaming address is
rtsp://192.168.31.88:554/ライブ/メインストリーム

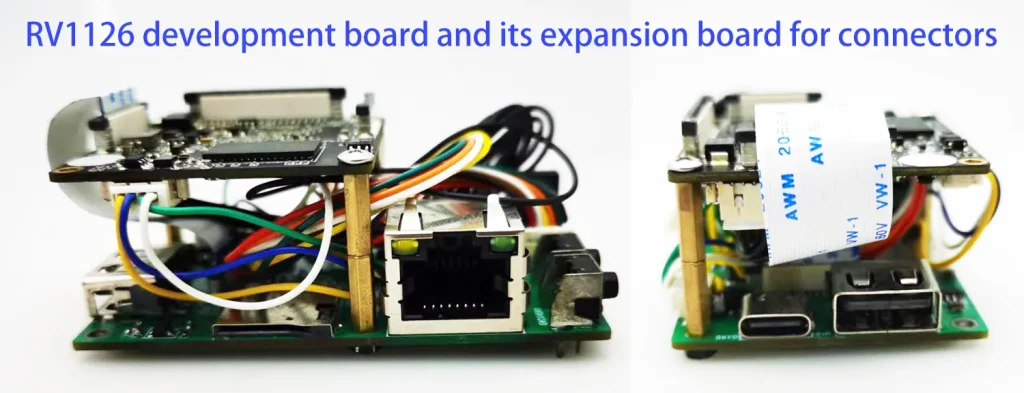

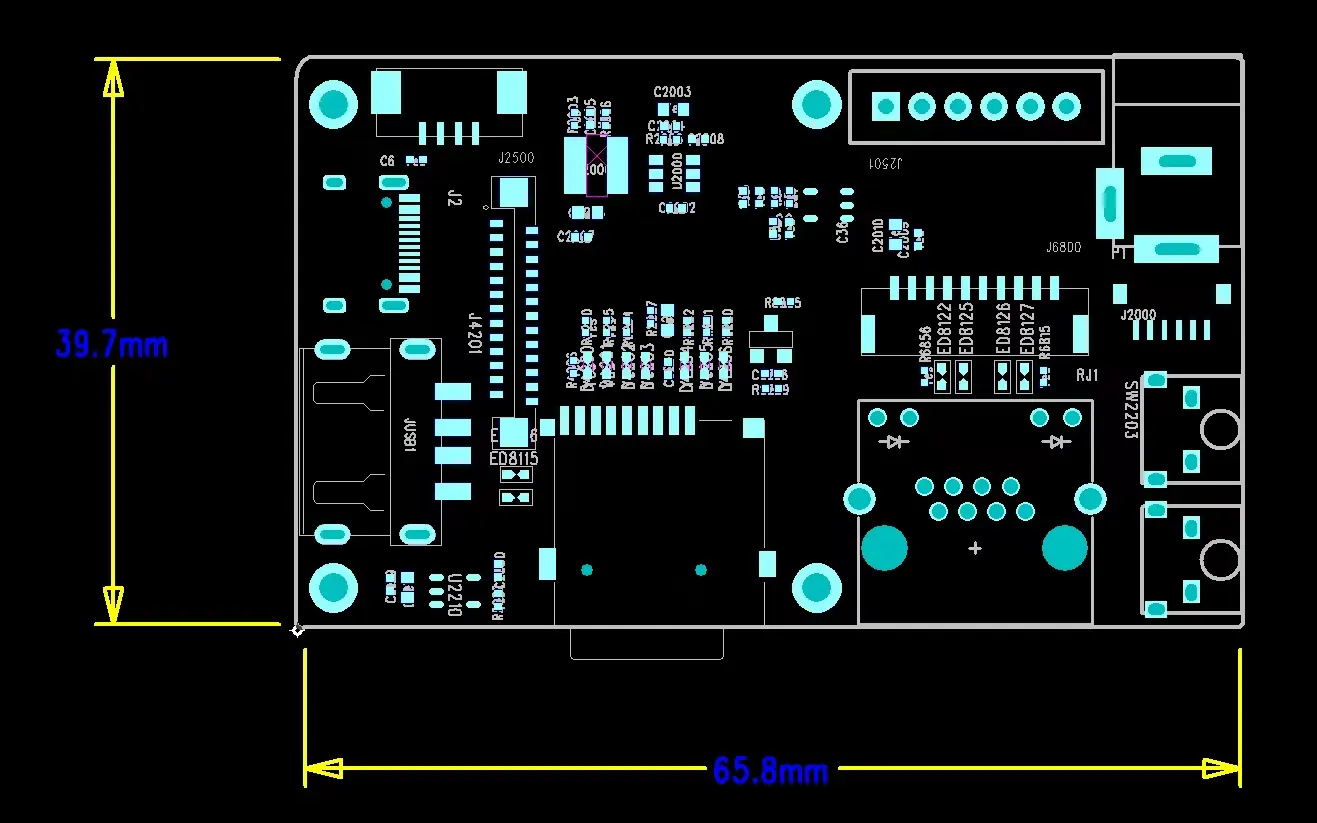

What dimension of your RV1126 development board expansion board?
65.8mm X 39.7mm
PCBAを保護する金属製のボックス 2 USB camera inputs to ethernet rj45 converter
