Fréquence de liaison de données de radiotélémétrie du drone FPV personnalisée
It is suitable to develop a drone data transmission module with a different frequency. The unique personal customized frequencies can avoid the busy Microhard data transmission range 902~928Mhz
Table des matières

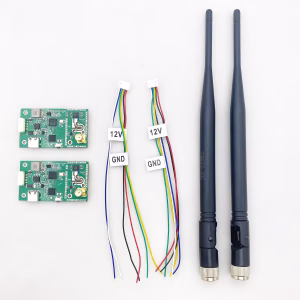

introduction
This is a newly launched digital transmission module, which is a small module with strong anti-interference ability. The device uses digitized signals through source coding and channel coding, transmits through digital channels, or stores them through digital storage and recording devices.
Avantage
- Strong digital communication confidentiality
- Forte capacité anti-interférence
- Long transmission distance and good stability
- With relatively low transmission delay, real-time transmission can be achieved
- Can be directly connected and controlled through mobile phones or tablets, easy to install and use
spécification
| Transmitter frequency range | 128MHZ-1G (La fréquence peut être personnalisée) |
| Gamme de fréquences du récepteur | 128MHZ-1G (La fréquence peut être personnalisée) |
| Bande de fréquence de fonctionnement | 128MHZ-320MHZ，330MHZ-640MHZ、675MHZ-1G |
| Puissance | 1-3W |
| Input source | Port série, SUBS |
| consommation d'énergie | 4W |
Definition of serial port
Indicator light description
Blue Light: Send Light After the connection is successful, the blue indicator light is always on, indicating that the data is being sent
Lumière verte: After the connection is successful, the green indicator light is always on, indicating that the data is being received
Lumière rouge: The power-on indicator stays on after the power-on
Remarque: L'antenne doit être installée avant la mise sous tension, and then powered on
Product Installation Instructions
Installation Guide
- For the transmitter, install the antenna before powering it on, autrement, it will cause circuit damage.
- Please ensure that the power supply voltage of the transmitter and receiver is within the specified voltage range, otherwise the circuit will be damaged.
- Try to make the transmitter antenna vertically upwards and obscure it by obstacles to avoid shortening the communication distance due to blocking.
- The antenna of the transmitter and receiver should be as far away as possible from the conductive parts.
- Be sure to use the specified model of the antenna to ensure that the frequency band, impédance, et d'autres paramètres correspondent.
- Pay attention to keeping a suitable distance between the electronic equipment during installation, to minimize the electromagnetic interference between the equipment.
Usage Guidelines
- Please ensure that all cables are securely fastened and that the connections are correct.
- The power cord and serial port cable of the air terminal and the ground terminal are connected to the equipment
- 12Alimentation de V
- Open the serial port tool page, identify the serial slogan, select the baud rate of 57600, and click to open
- After turning on, the red light and the blue light are on, indicating that the connection is successful
- After the connection is successful, the data can be sent

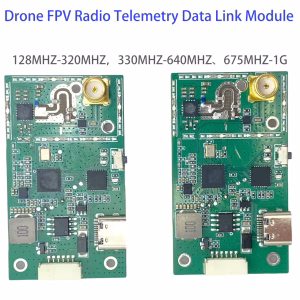

PCBA Layout
USB Driver
CP210x-Driver for Vcan2061.rar
