HANDGERÄTE MESH-RADIOS (IP MESH 580 MHz)

HANDGERÄTE MESH-RADIOS

Markenname	Vcan
Herkunftsort	Shenzhen, China
Netzwerkmodus	MESH (ad hoc)
Frequenz	570~590 MHz
Sendeleistung	29dBm
Bandbreite	5/10/20MHz
Hopfen zählen	10
Verschlüsselung	AES 256
Datumspreis	40Mbps
Latency	2Frau
Empfindlichkeit	-97dBm
Batterie	12V 3400mAh
Antenne	2 dBi
W-LAN	2.4Ghz
Umgebungstemp	-20~65 °C
Maße	140×80×29mm(Internal battery)
Gewicht	0.7kg

The MU series tactical handheld MESH radio has the characteristics of centralless self-organization. The device is compact and easy to carry . the output power is 29dBm.The size of subnet supports 32 Knoten, Die maximale Hop-Anzahl innerhalb des Netzwerks beträgt 10 Hopfen, and the single hop delay is 2~3ms.The maximum communication speed is up to 40Mbps, and the single-hop ground communication distance is within the range of 1 Kilometer. Das drahtlose private Netzwerk kann mit anderen Soldaten integriert werden, Fahrzeug- oder UAV-Knoten.

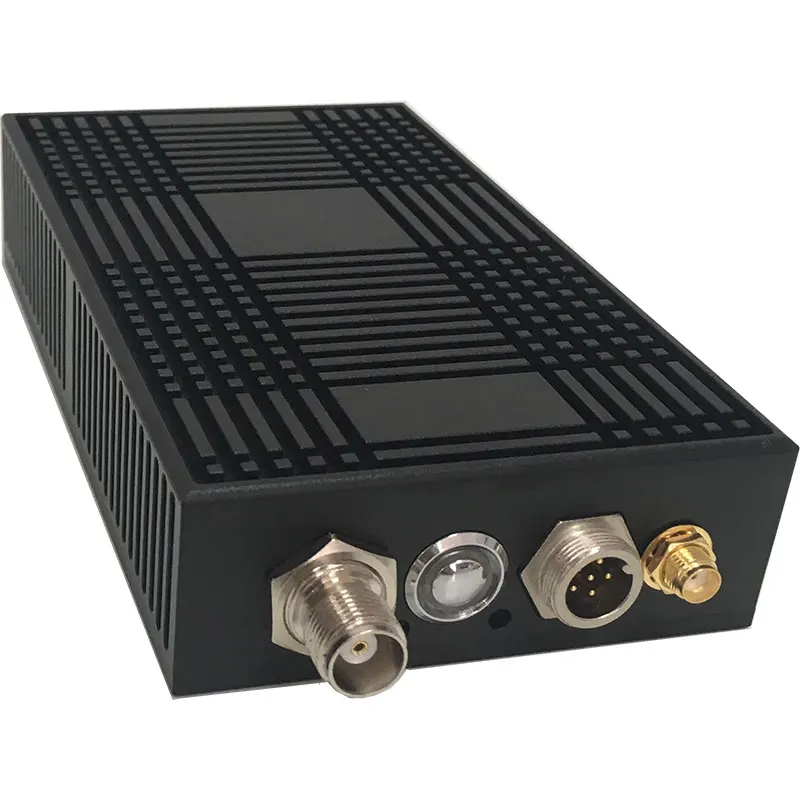

The device has a waterproof connectors, which can be extended to a standard Ethernet interface that can be used to connect to a computer ,camera or other IP-based device. Zusätzlich, the device also comes with wifi ap function, which can be used to access wireless devices such as nearby mobile phones, PADs and computers.There are two indicator lights on the device, one is used to indicate the network quality, and the green, orange and red light respectively indicate strong signal, general signal and weak signal, and the flashing light indicates the disconnected state.The other is the power indicator, with different colors to distinguish the level of power. The device comes with built-in batteries, which can support 4 Stunden Arbeitszeit.
